2008 Kawasaki KX™450F Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 2008 Kawasaki KX™450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

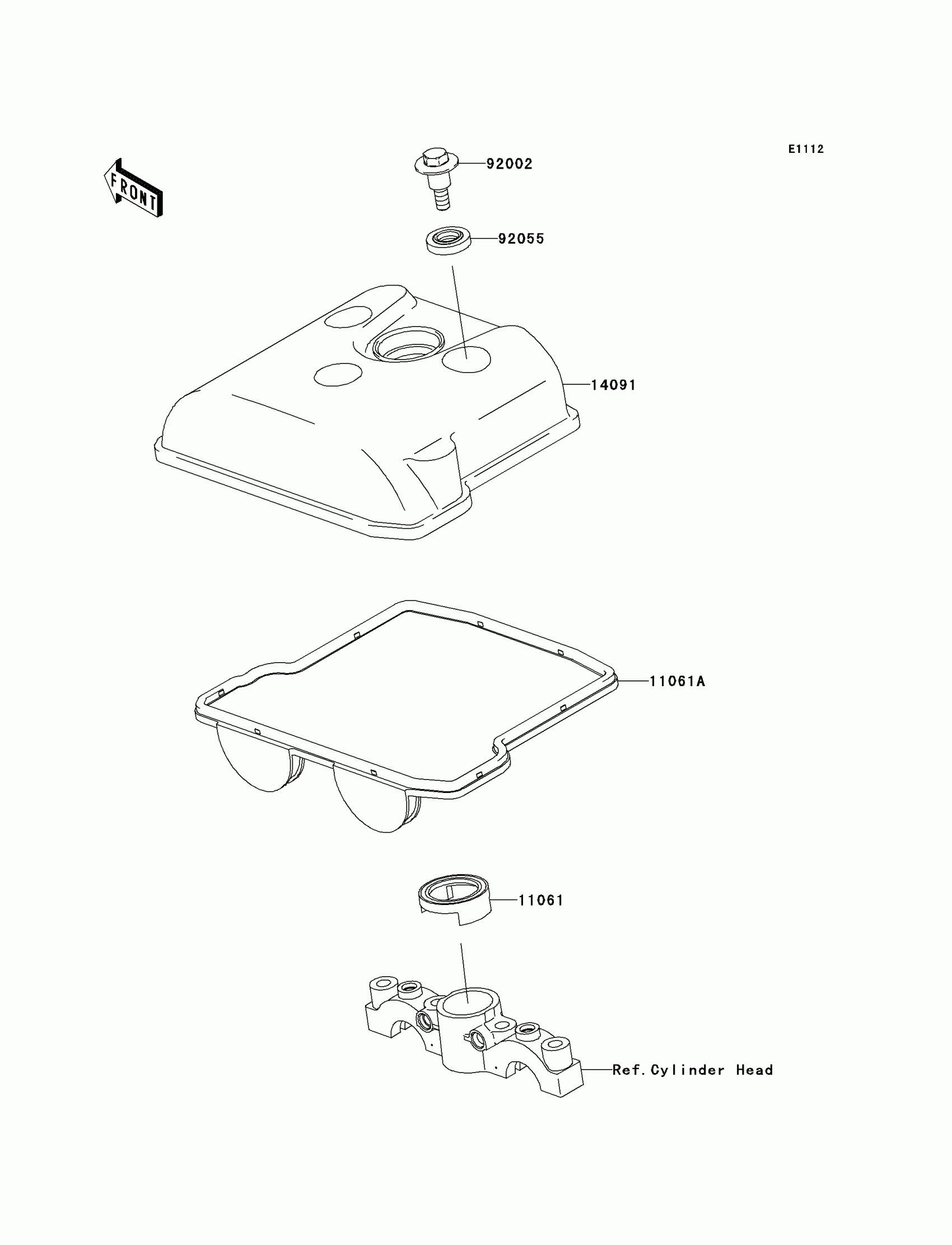

2008 Kawasaki KX™450F Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,PLUG HOLE

11061-0079

1
Out of stock

11061A

GASKET,CYLINDER HEAD COVER

11061-0185

1
Out of stock

14091

COVER,CYLINDER HEAD

14091-0796

1
Out of stock

92002

BOLT,FLANGED,6X22.5

92002-1327

1
Out of stock

92055

RING-O,HEAD COVER BOLT

92055-1352

1
Out of stock
← Cylinder Head Cylinder/piston →
