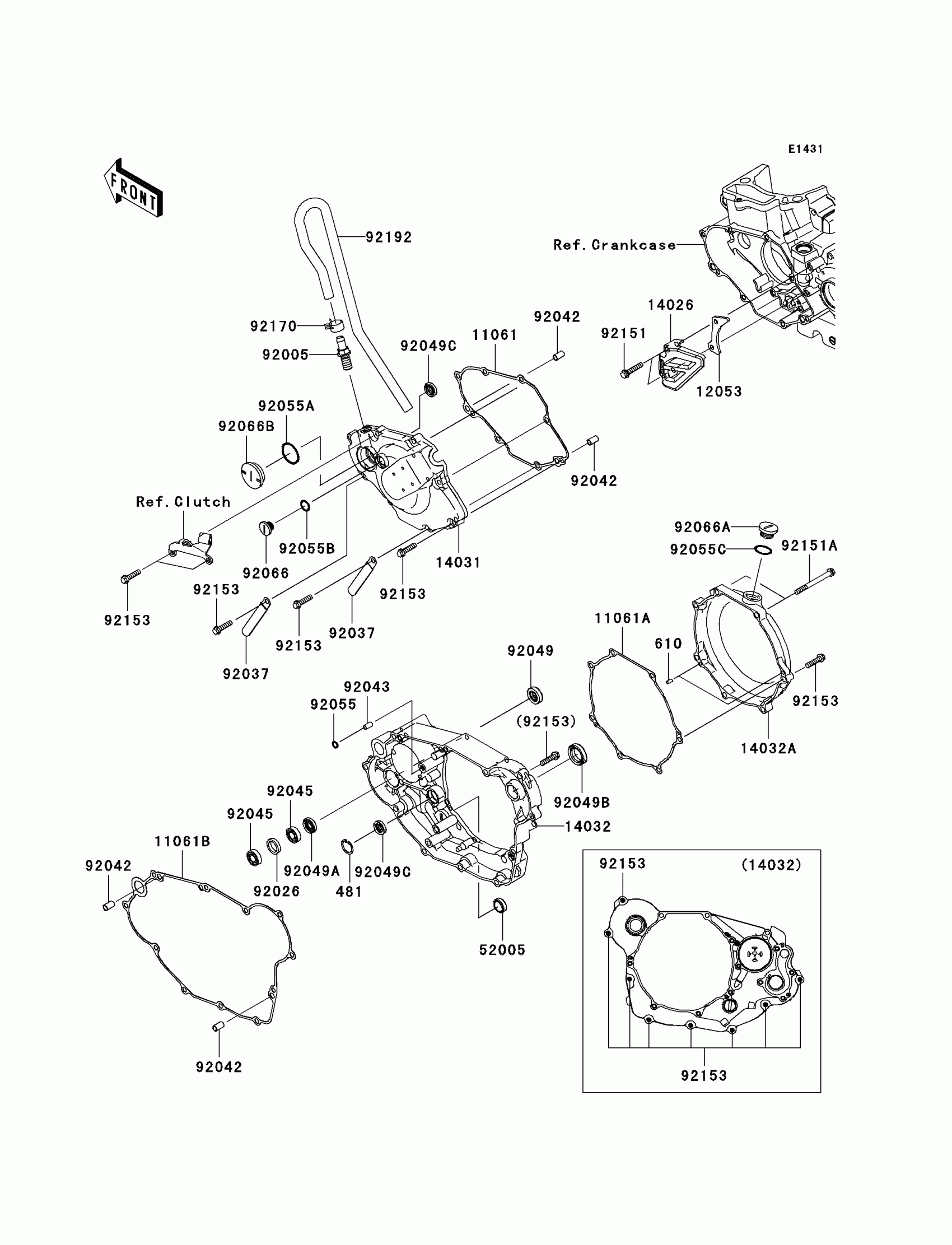

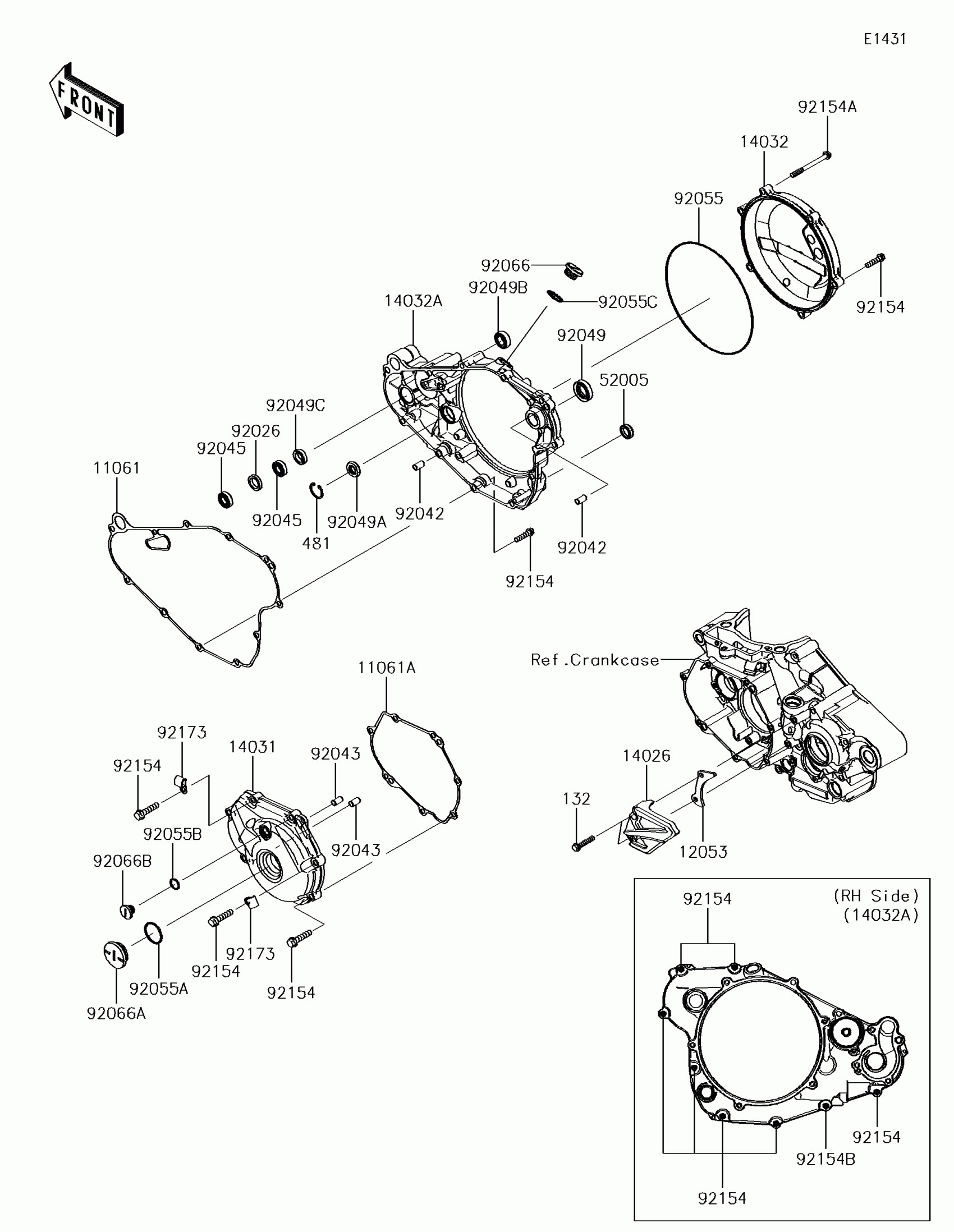

Kawasaki KX™450F Engine Cover(s) Diagram

#

Description
Price

481

CIRCLIP-TYPE-C,20MM

481J2000

$7.58

610

ROLLER,4X8

610A0408

$3.29

11061

GASKET,GENERATOR COVER

11061-0084

$31.06

11061A

GASKET,CLUTCH COVER,OUTER

11061-0145

Unavailable

11061B

GASKET,CLUTCH COVER,INNER

11061-0224

$41.34

12053

GUIDE-CHAIN

12053-0056

Unavailable

14026

COVER-CHAIN

14026-0047

$30.16

14031

COVER-GENERATOR

14031-0090

$168.39

14032

COVER-CLUTCH,INNER

14032-0062

$242.41

14032A

COVER-CLUTCH,OUTER

14032-0101

Unavailable

52005

GAUGE,OIL LEVEL

52005-0019

$11.20

92005

FITTING,BREATHER

92005-0014

$21.63

92026

SPACER,16X22X4.3

92026-0064

$7.61

92037

CLAMP

92037-1993

$4.18

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,4.2X6X12

92043-1262

$3.29

92045

BEARING-BALL,6900C3

92045-0039

$12.54

92049

SEAL-OIL,12X24X7

92049-0040

Unavailable

92049A

SEAL-OIL,12X22X5

92049-0041

Unavailable

92049B

SEAL-OIL

92049-1541

$9.47

92049C

SEAL-OIL,10X20X5

92049-1542

$6.07

92055

RING-O

92055-0113

$3.51

92055A

RING-O,27.7X2.4

92055-091

$4.67

92055B

RING-O,13.0X1.9

92055-1011

$5.81

92055C

RING-O,20X2

92055-1146

$6.55

92066

PLUG,12X9.1

92066-0039

$8.72

92066A

PLUG,OIL,18X9

92066-0106

$15.92

92066B

PLUG

92066-1404

$12.98

92151

BOLT,6X30

92151-1134

$1.57

92151A

BOLT,6X65

92151-1199

$4.32

92153

BOLT,FLANGED-SMALL,6X25

92153-1784

Unavailable

92170

CLAMP

92170-1938

$2.84

92192

TUBE,BREATHER,L=491.4

92192-0218

$20.17
