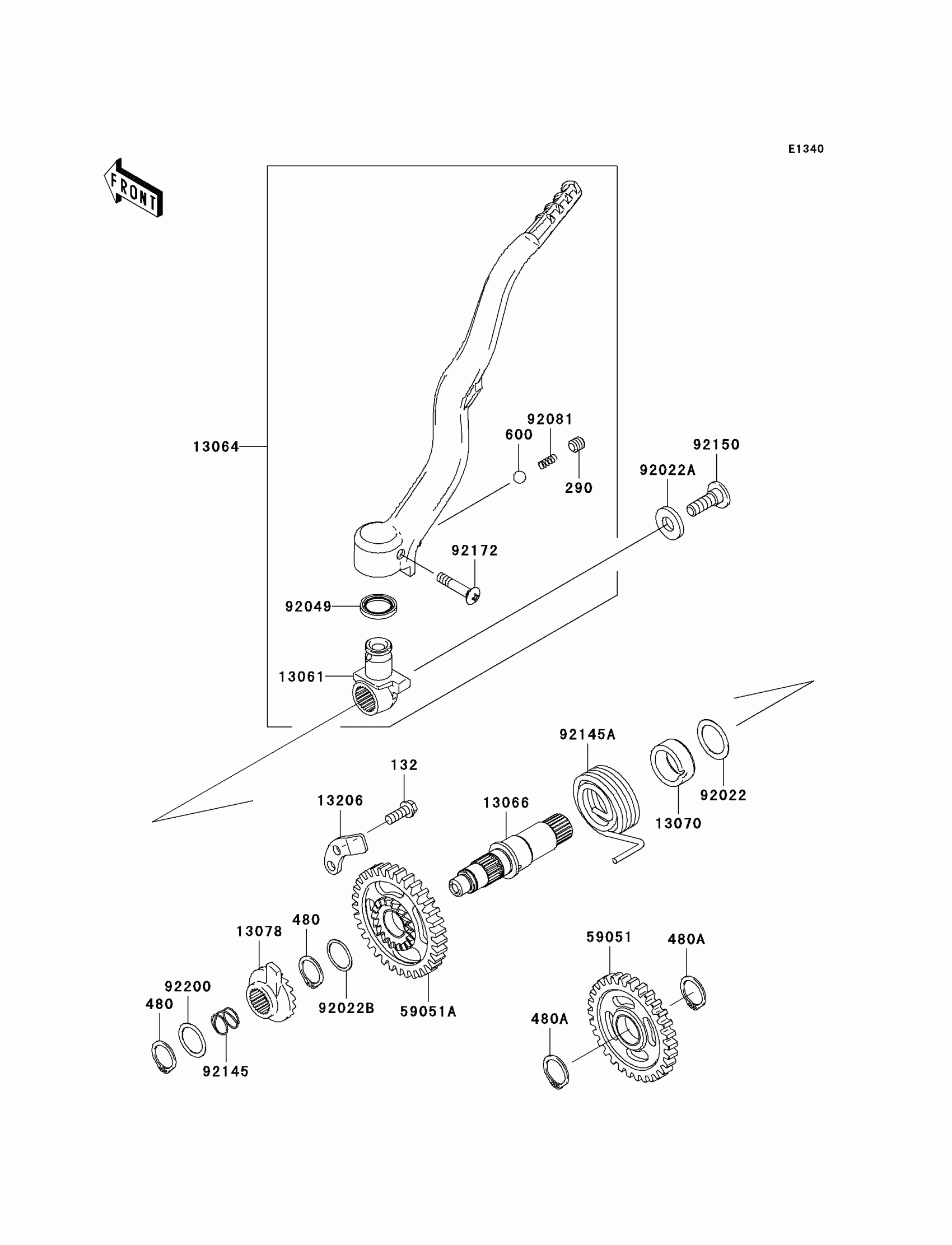

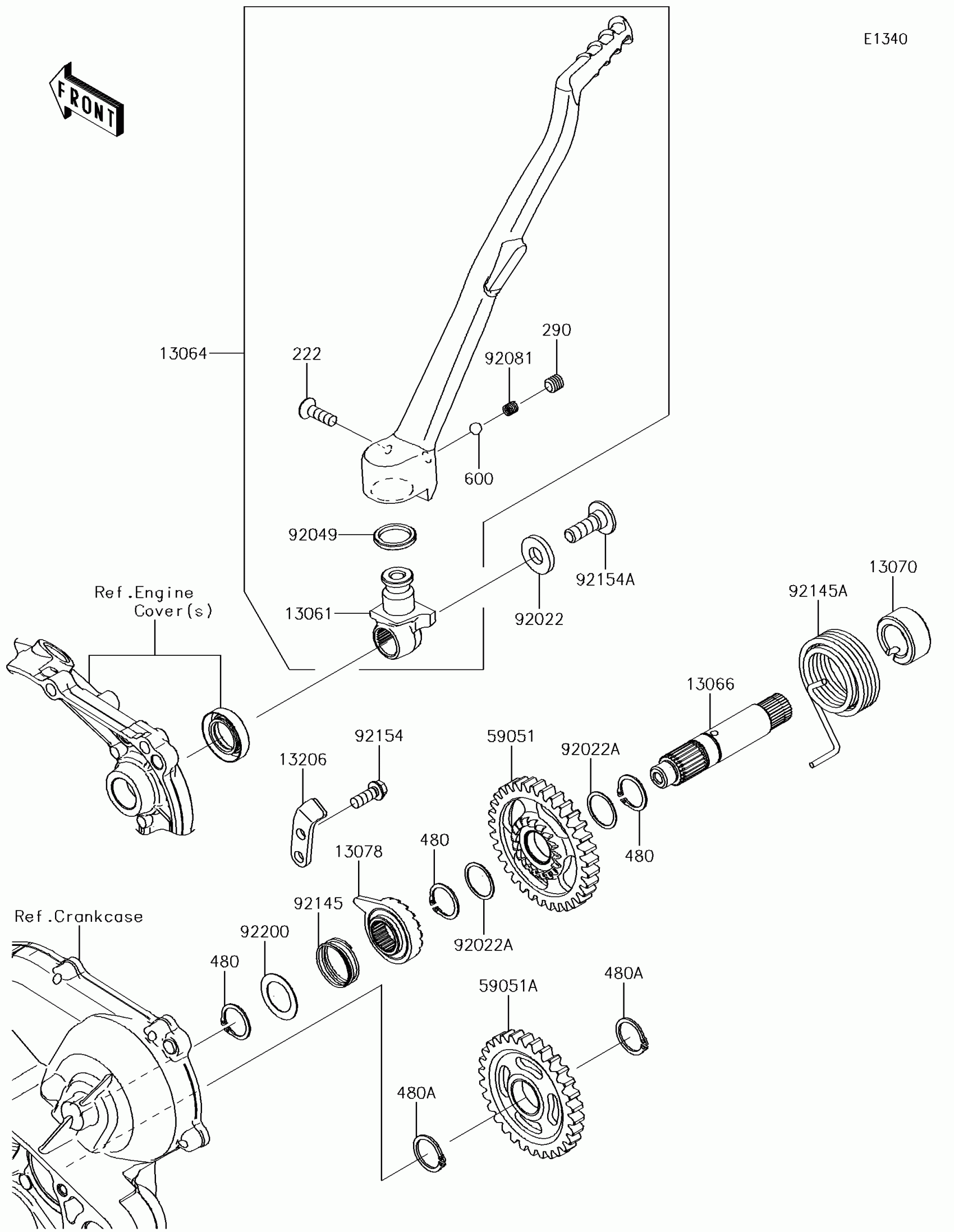

Kawasaki KX™450F Kickstarter Mechanism Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable

290

SCREW-SET-SOCKET,8X8

290CA0808

$2.34

480

CIRCLIP-TYPE-C,18MM

480J1800

$0.98

480A

CIRCLIP-TYPE-C,19MM

480J1900

$0.98

600

BALL-STEEL,1/4

600A0800

$0.59

13061

BOSS

13061-0146

$80.57

13064

LEVER-ASSY-KICK

13064-0051

$133.83

13066

SHAFT-KICK

13066-0008

$122.88

13070

GUIDE,KICK SPRING

13070-1378

$19.47

13078

RATCHET

13078-0008

Unavailable

13206

GUIDE-KICK

13206-0005

$11.90

59051

GEAR-SPUR,30T

59051-0030

$94.16

59051A

GEAR-SPUR,33T

59051-0046

$101.43

92022

WASHER,20.3X28.0X0.5

92022-1885

$3.85

92022A

WASHER,10X22X3.2

92022-1944

$3.81

92022B

WASHER,18.3X22X0.5

92022-271

$4.18

92049

SEAL-OIL,KICK PEDAL

92049-1387

$4.67

92081

SPRING,KICK PEDAL

92081-020

$3.25

92145

SPRING

92145-0162

$12.07

92145A

SPRING,RETURN

92145-0297

$9.86

92150

BOLT,8X25

92150-1858

$5.99

92172

SCREW,6X30

92172-1088

$3.55

92200

WASHER,18.3X24X0.5

92200-0075

$1.78
