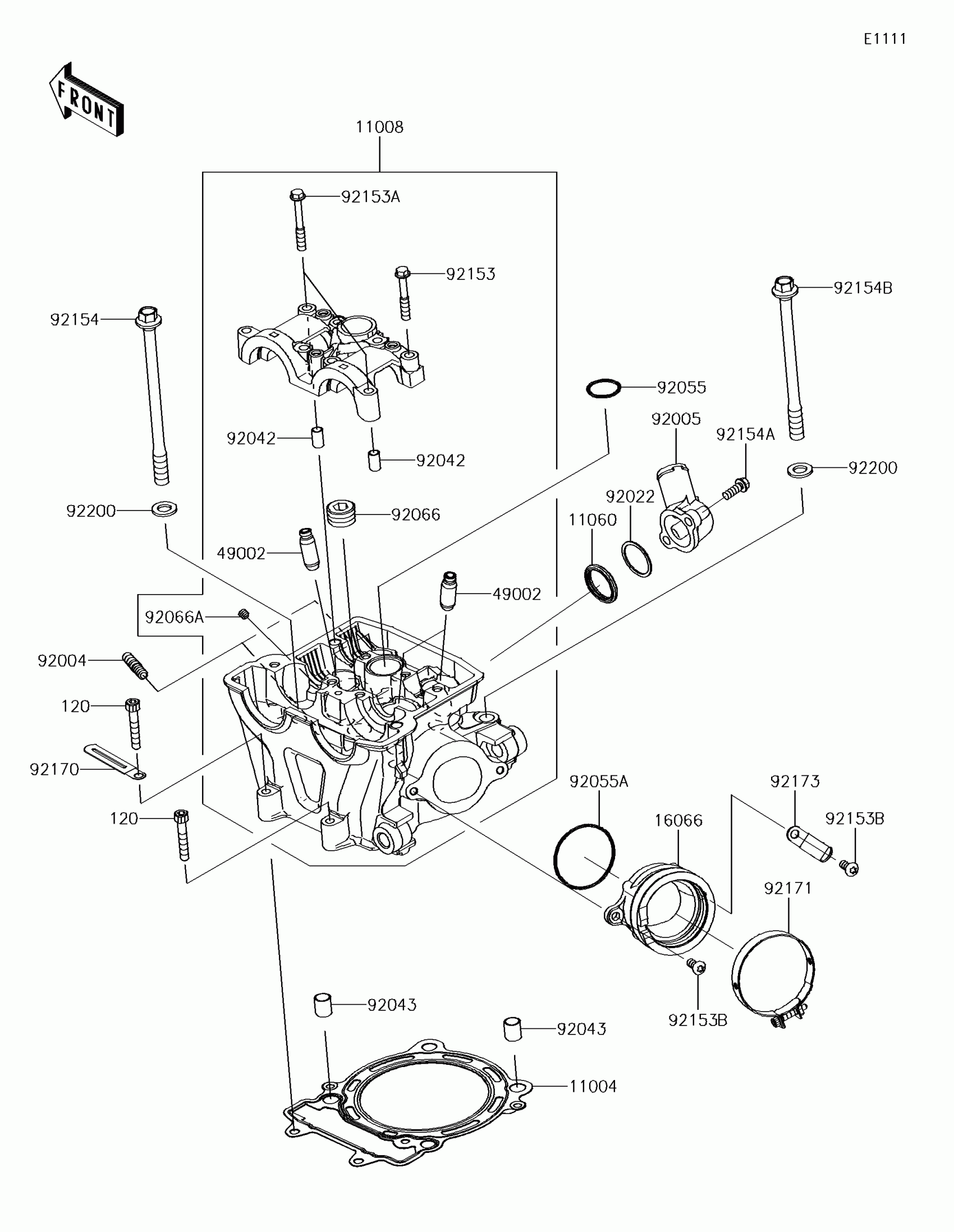

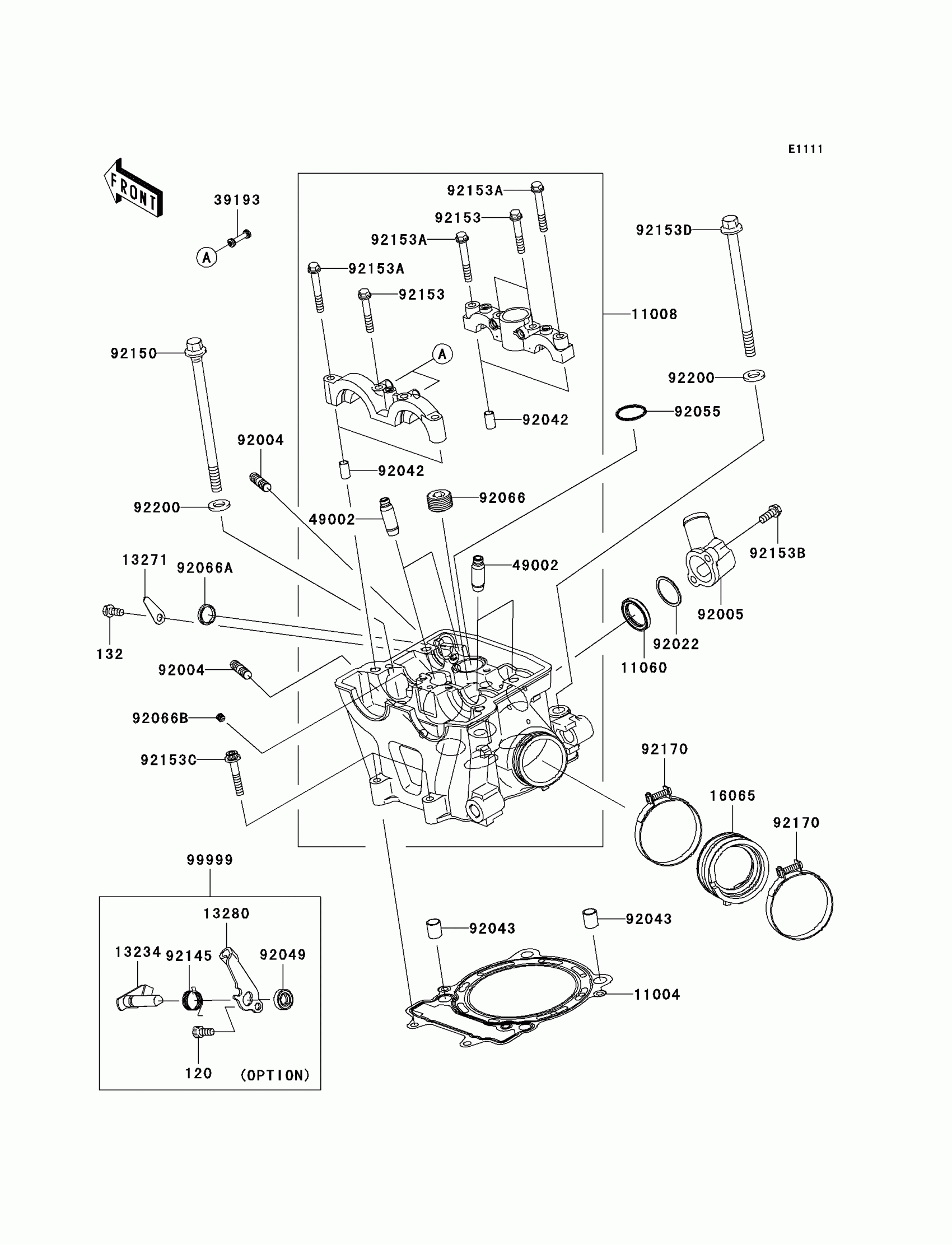

Kawasaki KX™450F Cylinder Head Diagram

#

Description
Price

120

BOLT-SOCKET,6X12

120P0612

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132L0612

Unavailable

11004

GASKET-HEAD

11004-0045

Unavailable

11008

HEAD-COMP-CYLINDER

11008-0143

$959.20

11060

GASKET,THERMOSTAT

11060-1300

$4.88

13234

SHAFT-COMP,DECOMP

13234-0009

$32.59

13271

PLATE

13271-0675

$2.34

13280

HOLDER,DECOMP

13280-0038

$7.47

16065

HOLDER-CARBURETOR

16065-0050

$13.29

39193

PIPE-OIL

39193-0027

$13.19

49002

GUIDE-VALVE

49002-0007

Unavailable

92004

STUD,8X22

92004-0025

$2.95

92005

FITTING

92005-0018

Unavailable

92022

WASHER,25.3X30X1

92022-161

$8.10

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,10.1X12X14

92043-4009

$4.67

92049

SEAL-OIL

92049-1196

$5.42

92055

RING-O,23.5X2.0

92055-0046

$1.57

92066

PLUG,PT1/2X12.5

92066-0002

$6.85

92066A

PLUG,4X18

92066-0024

$3.45

92066B

PLUG,6X6

92066-0068

$4.32

92145

SPRING

92145-0048

$3.25

92150

BOLT,L=140

92150-1935

$12.66

92153

BOLT,6X38

92153-0338

$2.30

92153A

BOLT,6X45

92153-0339

$2.30

92153B

BOLT,6X16

92153-0695

$2.14

92153C

BOLT,6X35

92153-0810

Unavailable

92153D

BOLT,FLANGED-SMALL,10X127

92153-1001

$11.53

92170

CLAMP

92170-1448

$6.18

92200

WASHER,10.5X19X2.3

92200-0114

$2.28

99999

KIT.,MANUAL DECOMP

99999-0023

$45.25
