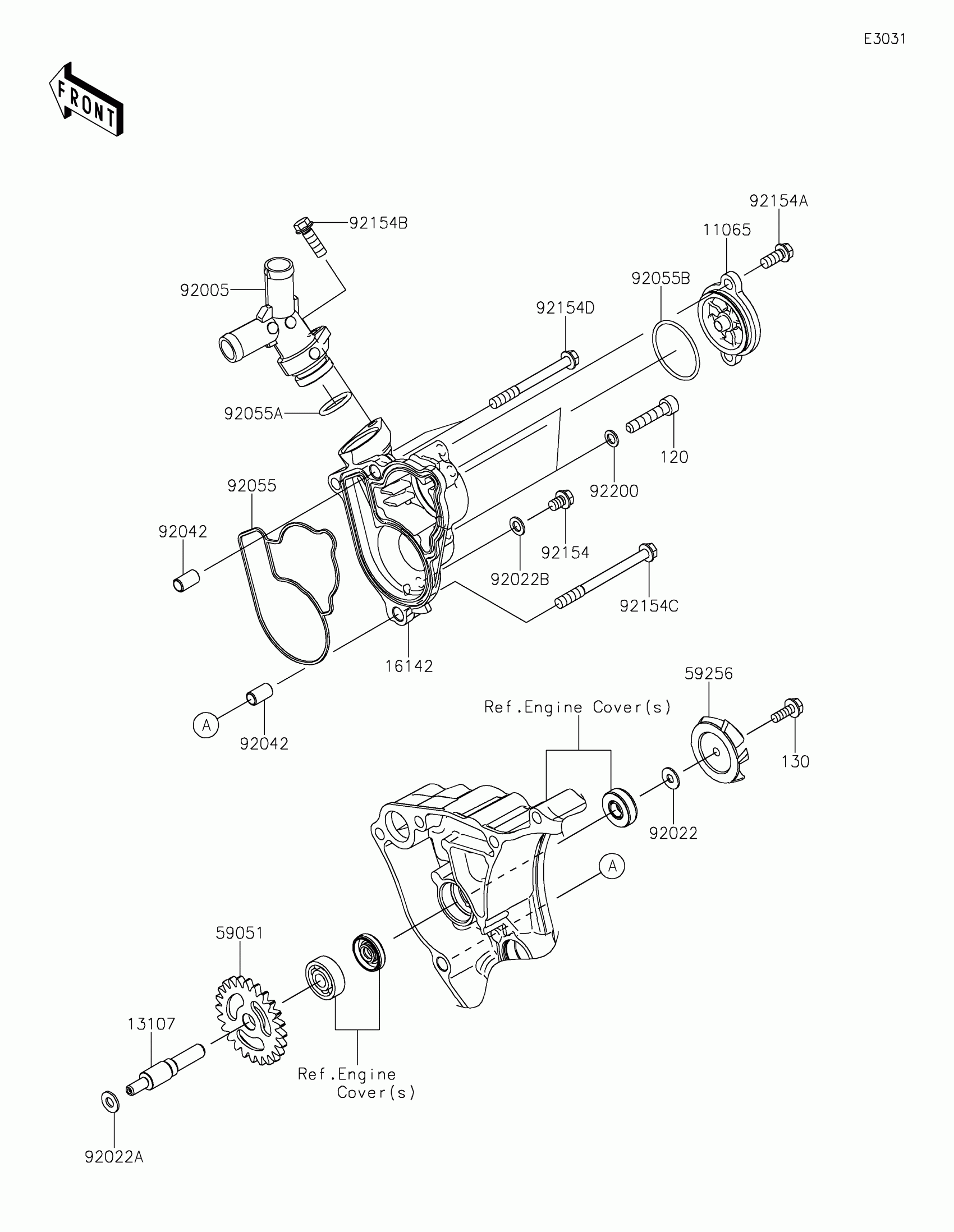

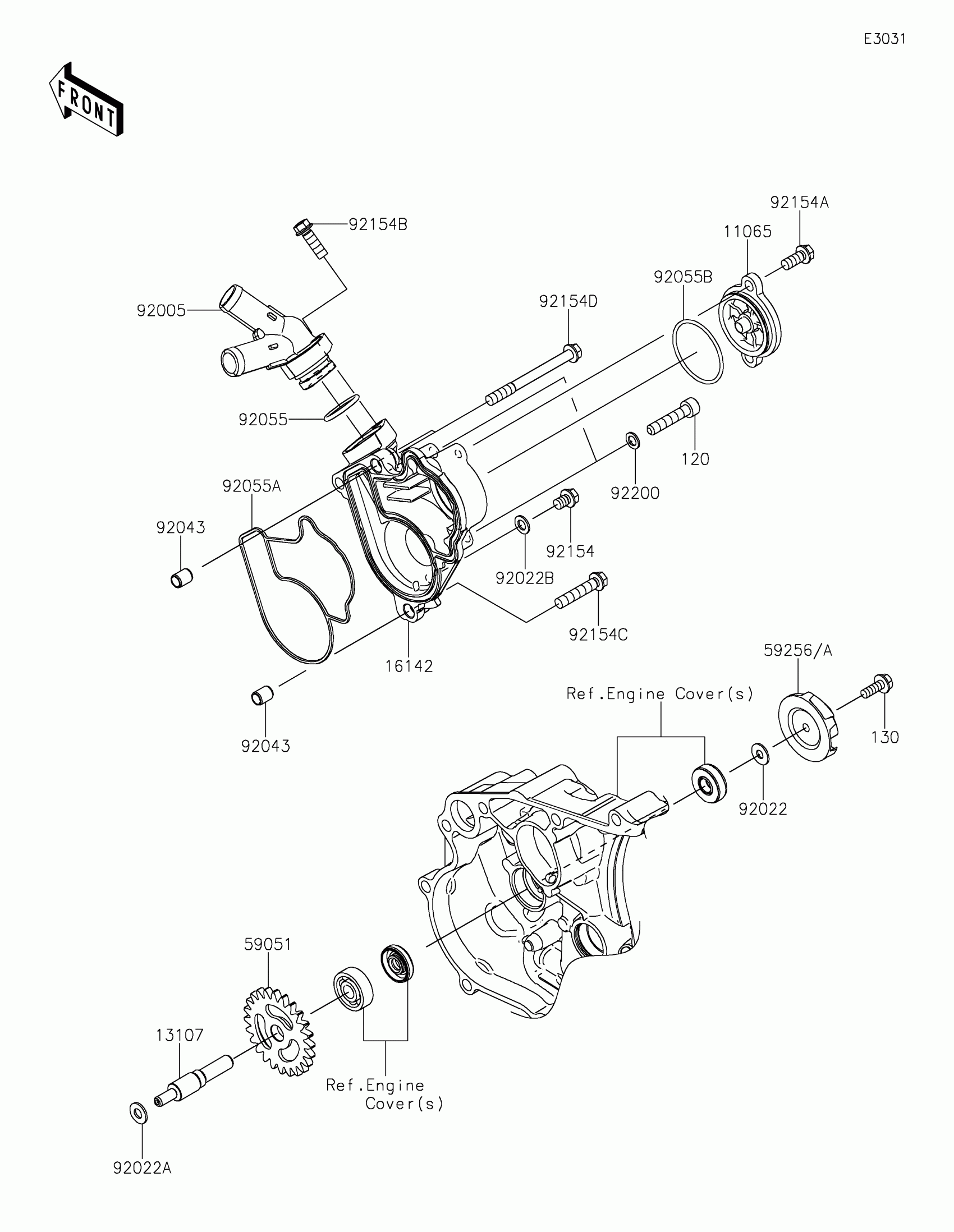

Find the part on the Water Pump diagram for your 2024 Kawasaki KX™250X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki KX™250X Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0087

1

$17.20

In stock

13107

SHAFT,WATER PUMP

13107-0916

1

$33.99

In stock

16142

COVER-PUMP,WATER

16142-0738

1

$129.25

In stock

59051

1

$49.52

In stock

59256

IMPELLER

59256-1065

1

$33.05

In stock

92005

FITTING,WATER PUMP

92005-0839

1
Out of stock

92022

WASHER,5.2X13X1

92022-1380

1

$3.43

In stock

92022A

WASHER,6X12.8X1.2

92022-1827

1
Out of stock

92022B

WASHER,6.2X11X1

92022-304

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92055

RING-O,WATER PUMP

92055-0010

1
Out of stock

92055A

RING-O,18.8X2.4

92055-1308

1

$4.37

In stock

92055B

RING-O,35.2X1.9

92055-520

1

$4.21

In stock

92154

BOLT,FLANGED,6X8

92154-2962

1

$0.69

In stock

92154A

BOLT,FLANGED,6X14

92154-2964

1

$0.69

In stock

92154B

BOLT,FLANGED,6X18

92154-2976

1

$0.69

In stock

92154C

BOLT,FLANGED,6X70

92154-2981

1

$1.27

In stock

92154D

BOLT,FLANGED,6X60

92154-4134

1

$1.22

In stock

92200

WASHER,6.1X10.0X1.0

92200-0190

1
Out of stock

120

BOLT-SOCKET,6X30

120CA0630

1

$5.05

In stock

130

BOLT-FLANGED,5X14

130CD0514

1

$1.69

In stock
