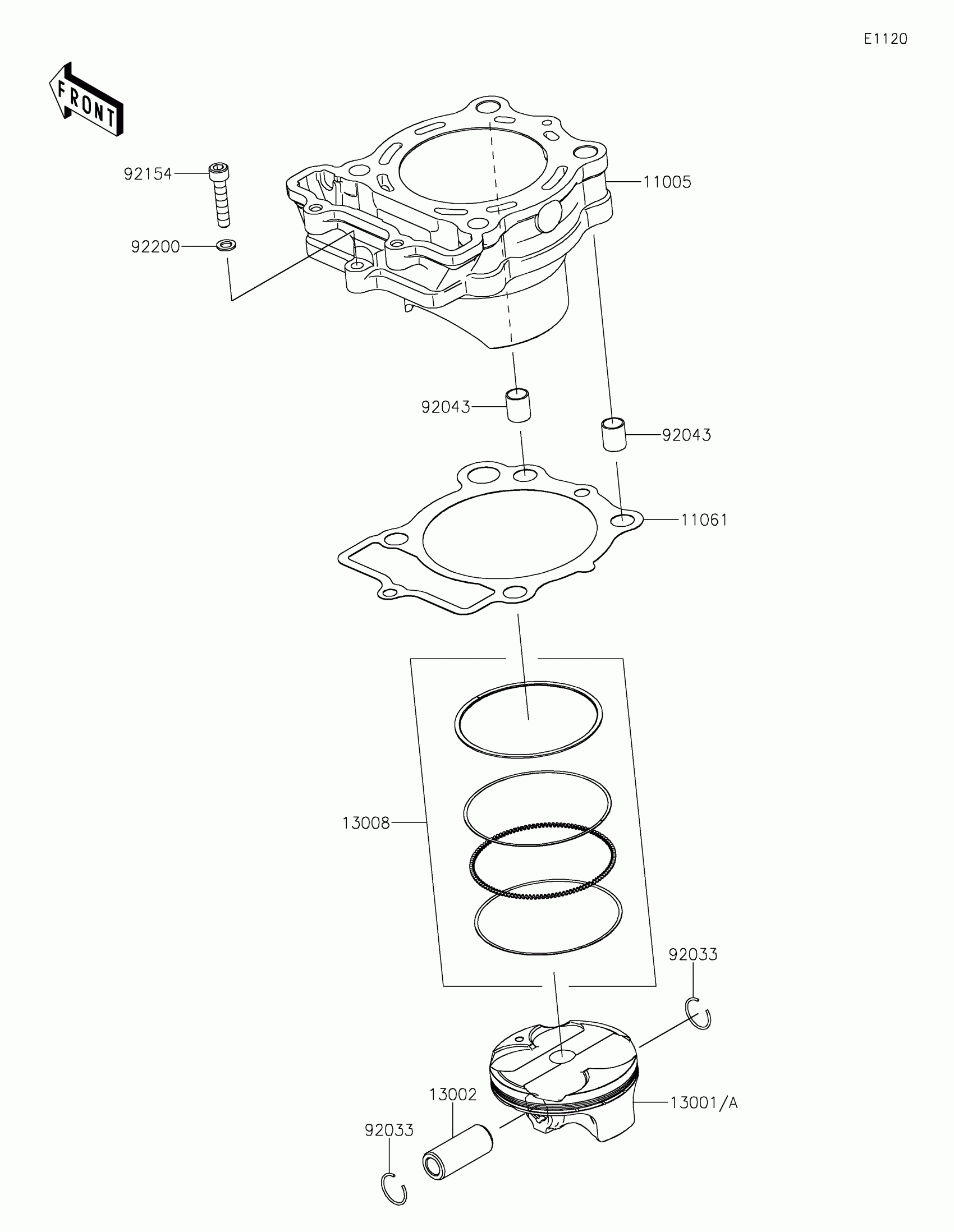

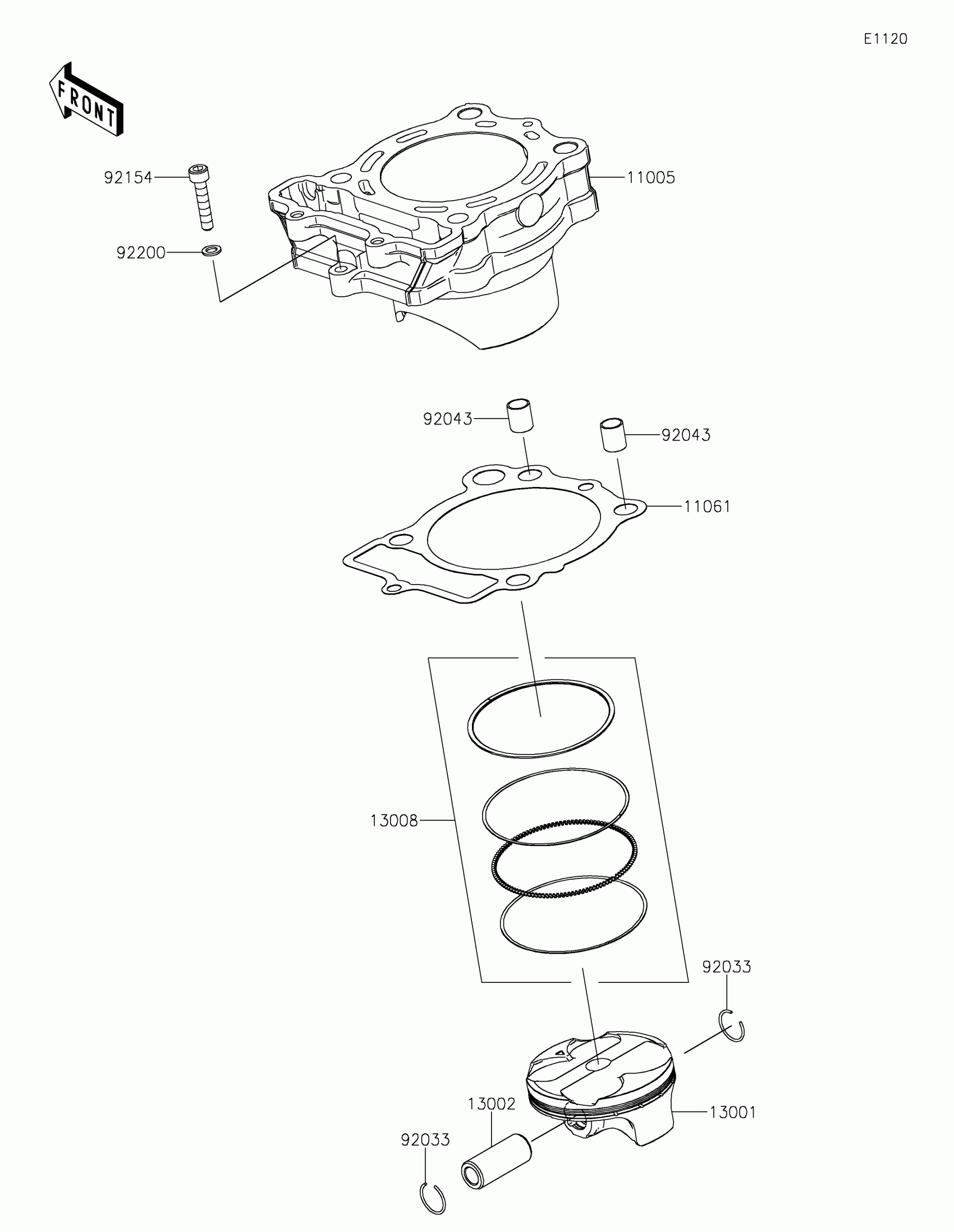

Find the part on the Cylinder/piston diagram for your 2024 Kawasaki KX™250X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki KX™250X Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-0717

1
Out of stock

11061

GASKET,CYLINDER BASE

11061-1198

1
Out of stock

13001

PISTON-ENGINE

13001-0820

1
Out of stock

13001A

PISTON-ENGINE

13001-0838

1
Out of stock

13002

PIN-PISTON

13002-0721

1
Out of stock

13008

RING-SET-PISTON

13008-0585

1
Out of stock

92033

RING-SNAP,PISTON PIN

92033-1161

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock

92154

BOLT,SOCKET,6X30

92154-4181

1
Out of stock

92200

WASHER,6.1X10.0X1.0

92200-0190

1
Out of stock
