2024 Kawasaki KX™250X Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2024 Kawasaki KX™250X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

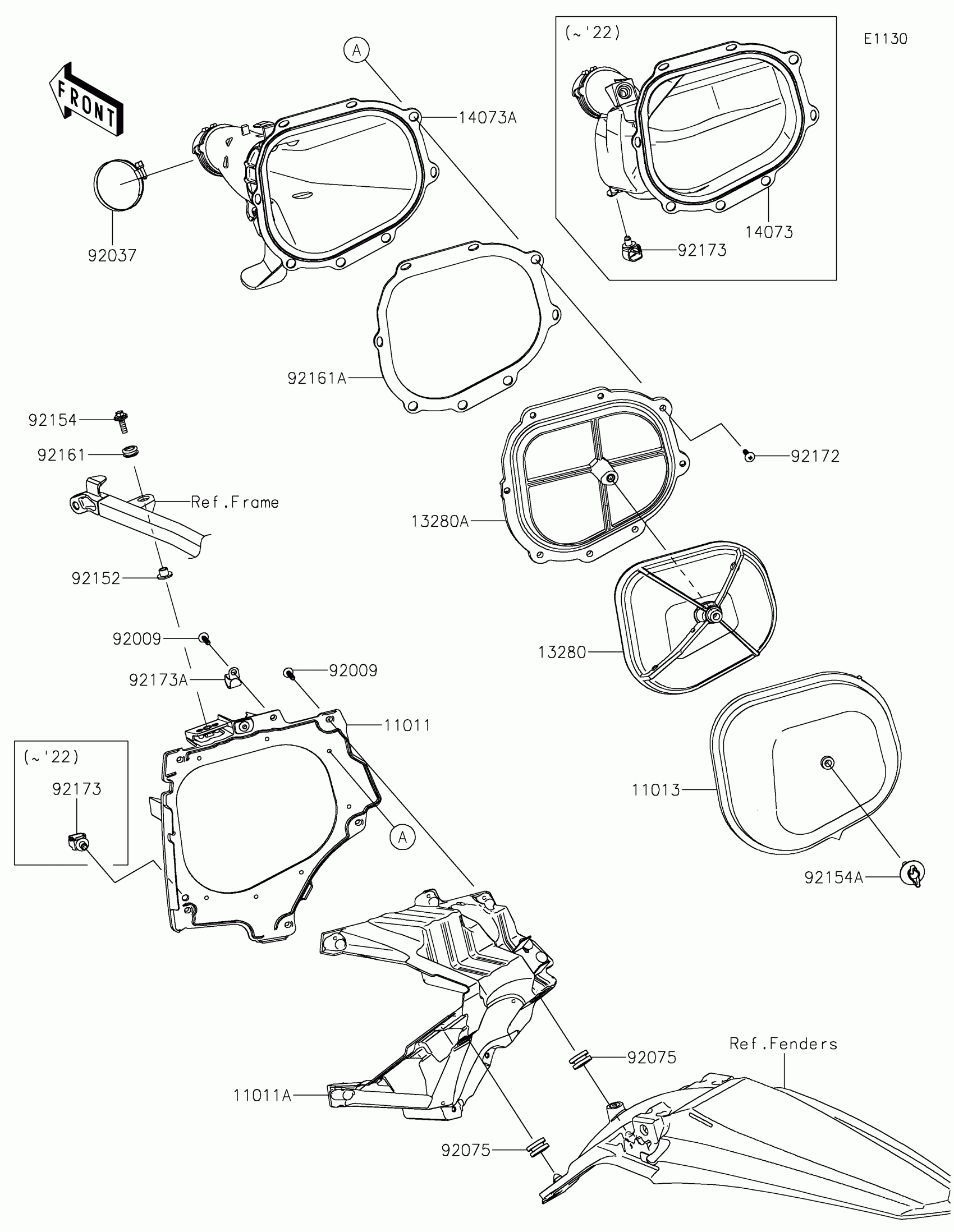

2024 Kawasaki KX™250X Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011

1

$52.68

In stock

11011A

1

$132.10

In stock

11013

ELEMENT-AIR FILTER

11013-0811

1

$48.80

In stock

13280

HOLDER,ELEMENT BASE

13280-0913

1

$48.47

In stock

13280A

HOLDER,ELEMENT BASE

13280-0988

1

$48.47

In stock

14073

DUCT

14073-1869

1

$102.26

In stock

14073A

DUCT

14073-1877

1

$97.84

In stock

92009

SCREW,TAPPING,5X20

92009-1993

1
Out of stock

92037

CLAMP,RESERVE TANK

92037-1586

1

$11.90

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92152

COLLAR

92152-1449

1

$7.42

In stock

92154

BOLT,FLANGED,6X20

92154-1268

1

$1.10

In stock

92154A

BOLT,WING,6X35

92154-2943

1

$8.75

In stock

92161

DAMPER

92161-0266

1

$1.53

In stock

92161A

DAMPER,HOLDER

92161-2319

1

$24.25

In stock

92172

SCREW,TAPPING,5X20

92172-0382

1

$2.10

In stock

92173

CLAMP,12MM DIA.

92173-0736

1

$4.01

In stock

92173A

CLAMP

92173-1549

1

$4.61

In stock
