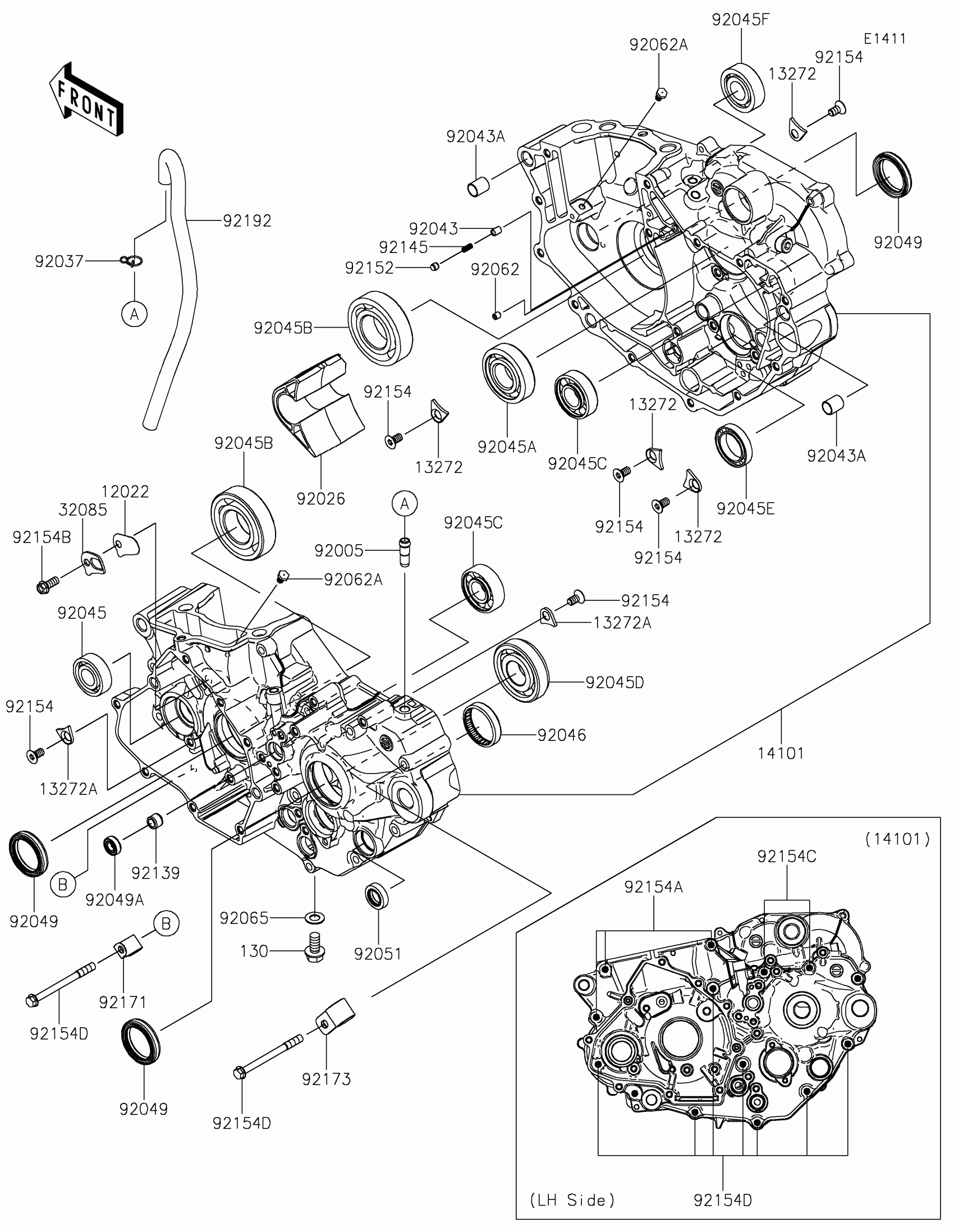

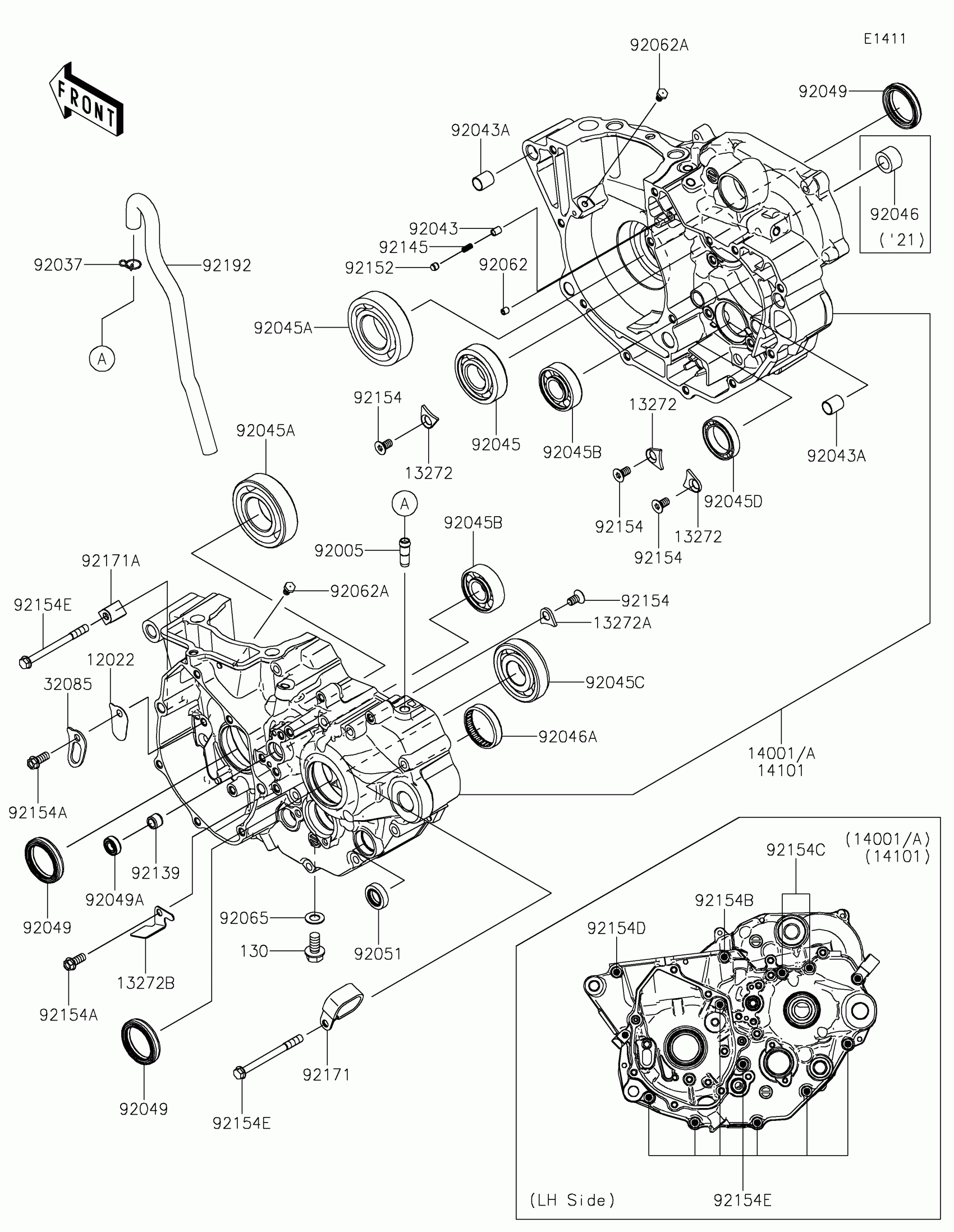

Find the part on the Crankcase diagram for your 2024 Kawasaki KX™250X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki KX™250X Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12022

VALVE-REED

12022-0010

1

$9.34

In stock

13272

PLATE

13272-0488

1

$5.17

In stock

13272A

PLATE

13272-0670

1

$5.17

In stock

13272B

PLATE

13272-3807

1

$2.12

In stock

14001A

SET-CRANKCASE

14001-0733

1

$716.38

In stock

14101

SET-CRANKCASE

14101-0020

1

$668.46

In stock

32085

STOPPER,VALVE-REED

32085-0876

1

$3.49

In stock

92005

FITTING

92005-1369

1
Out of stock

92037

CLAMP,TUBE

92037-1972

1

$3.43

In stock

92043

PIN,PLUNGER

92043-1676

1

$6.93

In stock

92043A

PIN,10.1X12X14

92043-4009

1

$4.93

In stock

92045

1

$29.18

In stock

92045A

1

$59.20

In stock

92045B

1

$23.73

In stock

92045C

1

$60.10

In stock

92045D

1

$29.77

In stock

92046A

BEARING-NEEDLE,7E-HKS33X38X8

92046-1221

1
Out of stock

92049

SEAL-OIL,TC 30 40 7

92049-0030

1
Out of stock

92049A

SEAL-OIL

92049-0808

1

$7.14

In stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92062

NOZZLE

92062-0029

1

$5.44

In stock

92062A

NOZZLE

92062-0576

1

$13.61

In stock

92065

GASKET,8.5X16X1

92065-023

1

$2.74

In stock

92139

BUSHING

92139-0907

1

$9.12

In stock

92145

SPRING

92145-0453

1

$3.49

In stock

92152

COLLAR

92152-2453

1
Out of stock

92154

BOLT,TORX

92154-1621

1

$3.11

In stock

92154A

BOLT,FLANGED,6X14

92154-2964

1

$0.69

In stock

92154B

BOLT,FLANGED,6X65

92154-2980

1

$1.27

In stock

92154C

BOLT,FLANGED,6X70

92154-2981

1

$1.27

In stock

92154D

BOLT,FLANGED,6X50

92154-4132

1

$1.03

In stock

92154E

BOLT,FLANGED,6X60

92154-4134

1

$1.22

In stock

92171

CLAMP

92171-0594

1

$7.56

In stock

92171A

CLAMP

92171-0761

1

$8.46

In stock

92192

TUBE,BREATHER

92192-1886

1

$8.90

In stock

130

BOLT-FLANGED,8X16

130AA0816

1

$0.83

In stock
