2024 Kawasaki KX™250X Crankshaft Diagram

← All diagrams

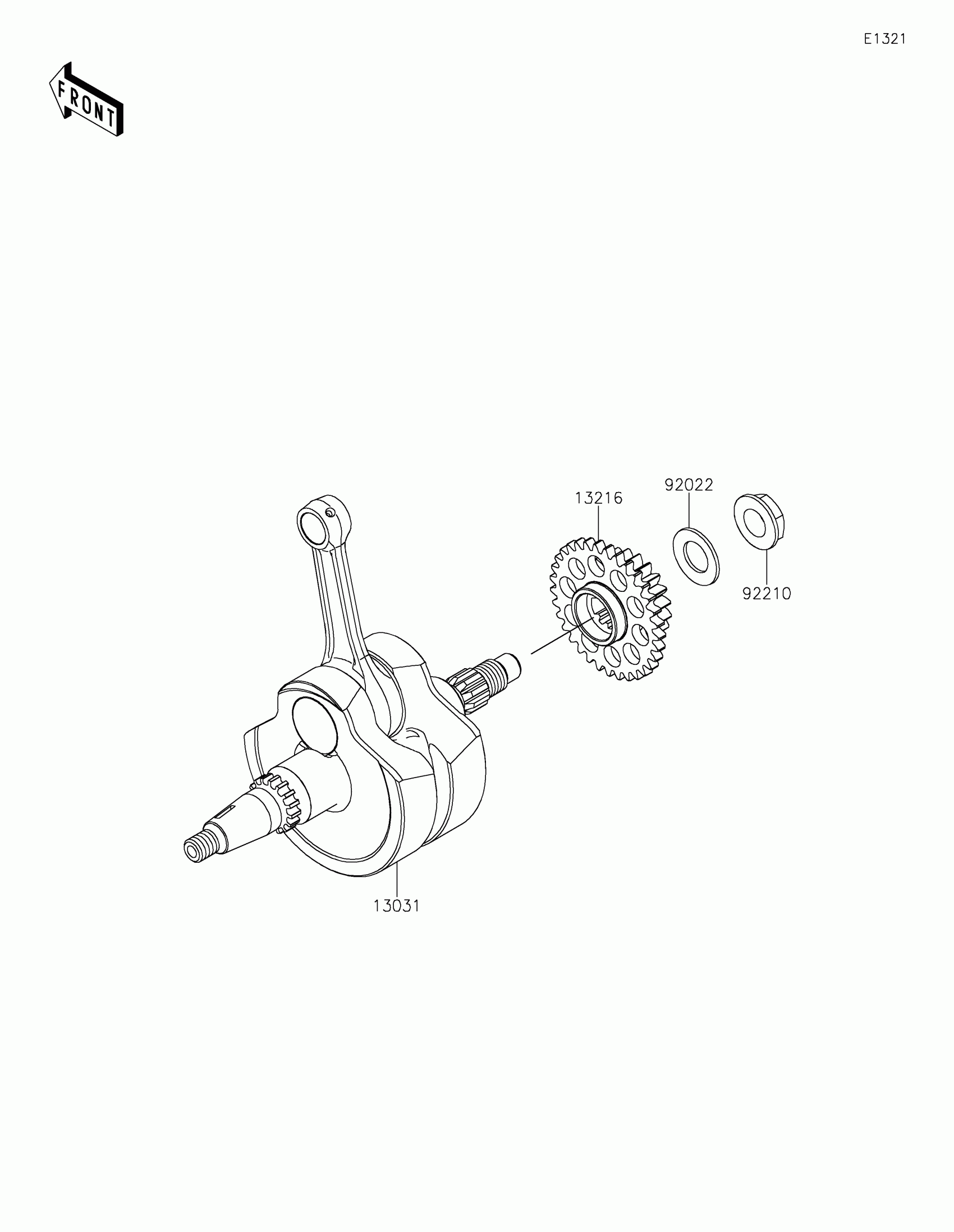

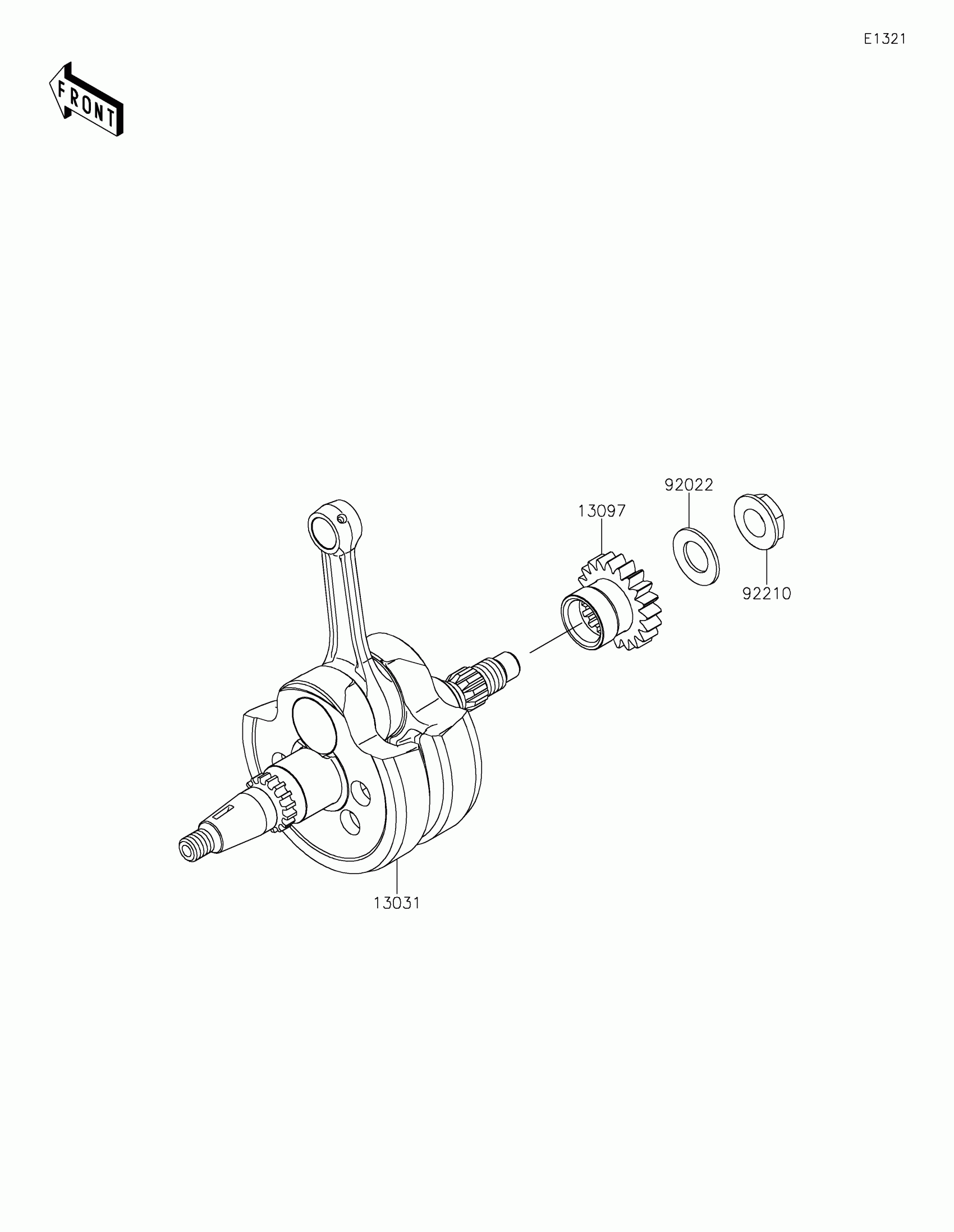

Find the part on the Crankshaft diagram for your 2024 Kawasaki KX™250X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki KX™250X Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-1539

1

$554.06

In stock

13097

1

$79.09

In stock

92022

WASHER,16.3X29X1.75

92022-1356

1

$5.84

In stock

92210

NUT,LEFT HANDED,16MM

92210-0350

1
Out of stock
← Crankcase Cylinder Head →
