2024 Kawasaki KX™250X Muffler Diagram

← All diagrams

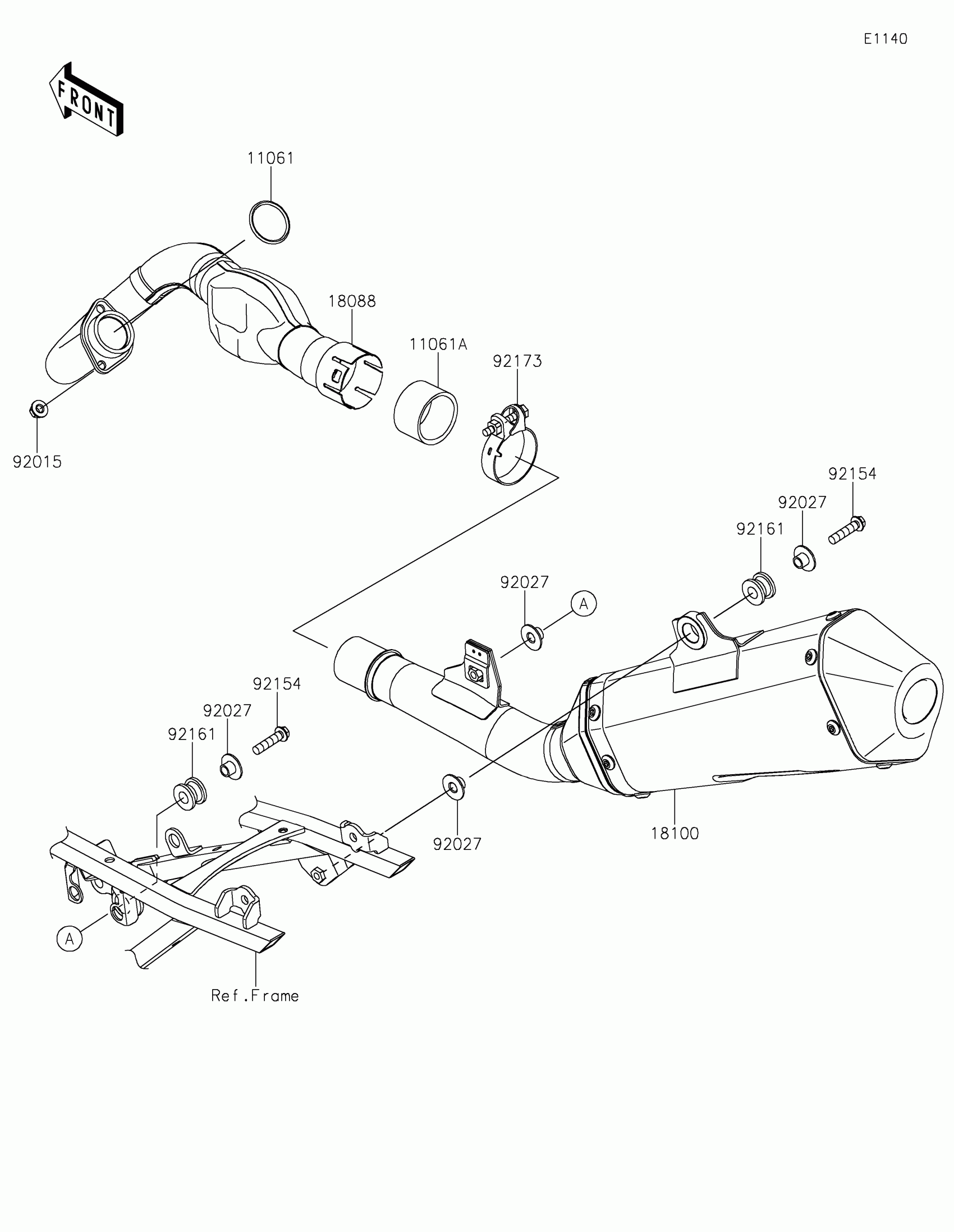

Find the part on the Muffler diagram for your 2024 Kawasaki KX™250X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki KX™250X Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,EX PIPE

11061-0027

1

$6.05

In stock

11061A

GASKET,CONNECTING

11061-0434

1

$20.55

In stock

18088

PIPE-EXHAUST

18088-1610

1

$297.54

In stock

18088A

PIPE-EXHAUST

18088-1682

1

$277.44

In stock

18100

BODY-ASSY-MUFFLER

18100-0611

1

$830.72

In stock

49107

COVER-EXHAUST PIPE

49107-0799

1

$55.66

In stock

92015

NUT,8MM

92015-1402

1

$3.72

In stock

92027

1

$8.16

In stock

92154

BOLT,TORX,6X10

92154-1938

1

$1.10

In stock

92154A

BOLT,FLANGED,8X18

92154-2984

1

$1.10

In stock

92154B

BOLT,FLANGED,8X35

92154-2985

1

$1.27

In stock

92160

1

$4.37

In stock

92173

CLAMP

92173-2327

1

$20.69

In stock

411

WASHER-PLAIN,6MM

411S0600

1

$1.73

In stock

461

1

$0.97

In stock
