1988 Kawasaki KX™250 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

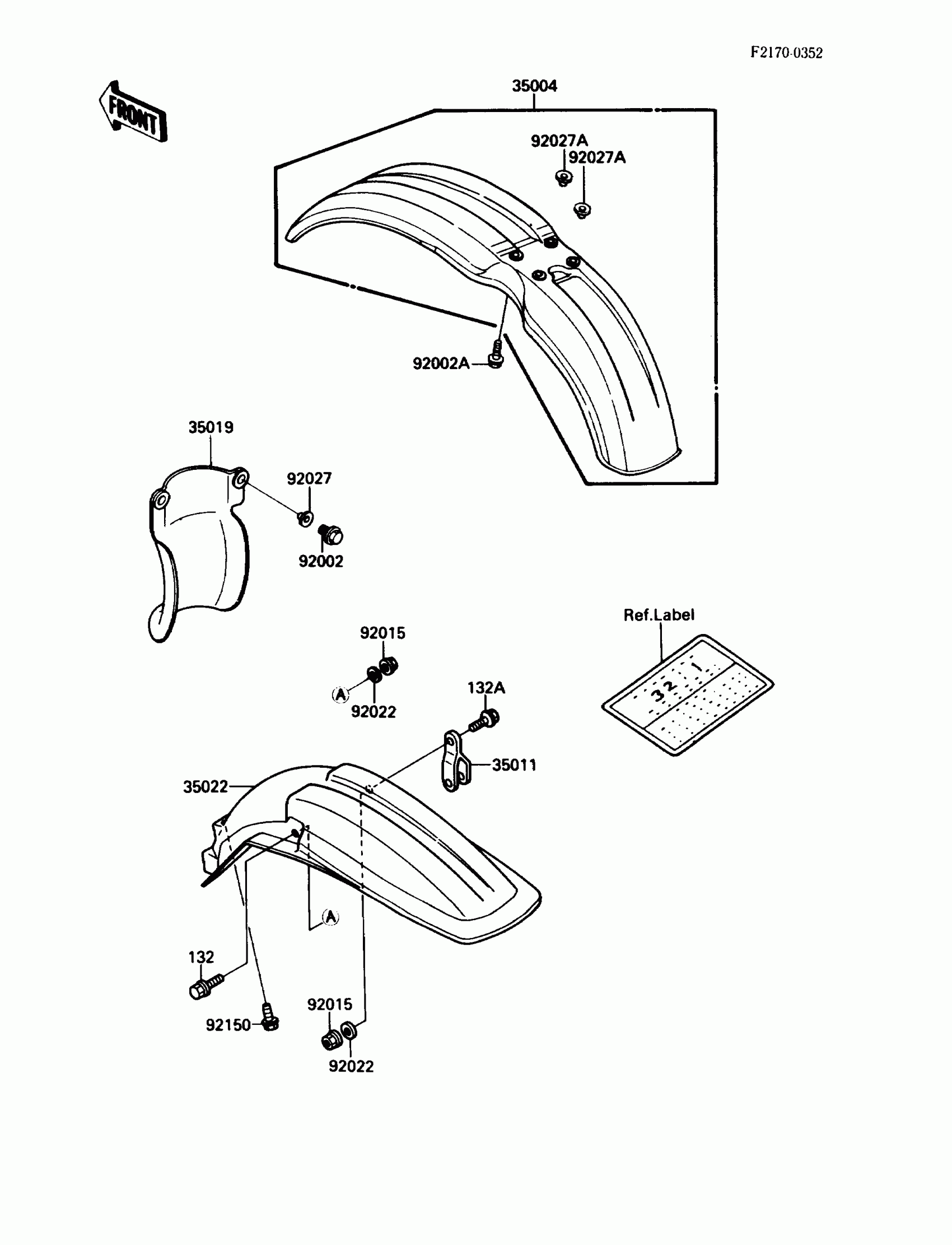

1988 Kawasaki KX™250 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,L.GREEN

35004-1176-6W

1
Out of stock

35011

STAY,MUFFLER

35011-1385

1
Out of stock

35019

FLAP,AIR FILTER

35019-1159

1
Out of stock

35022

FENDER-COMP-REAR,L.GREEN

35022-1234-6W

1
Out of stock

92002

BOLT,6X14

92002-1460

1
Out of stock

92002A

BOLT,6X16

92002-1461

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1
Out of stock

92027

COLLAR

92027-1794

1
Out of stock

92027A

COLLAR

92027-1936

1
Out of stock

92150

BOLT,FLANGED,6X20

92150-1131

1
Out of stock

132

BOLT-FLANGED-SMALL,6X40

132G0640

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X45

132G0645

1
Out of stock
