1988 Kawasaki KX™250 Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

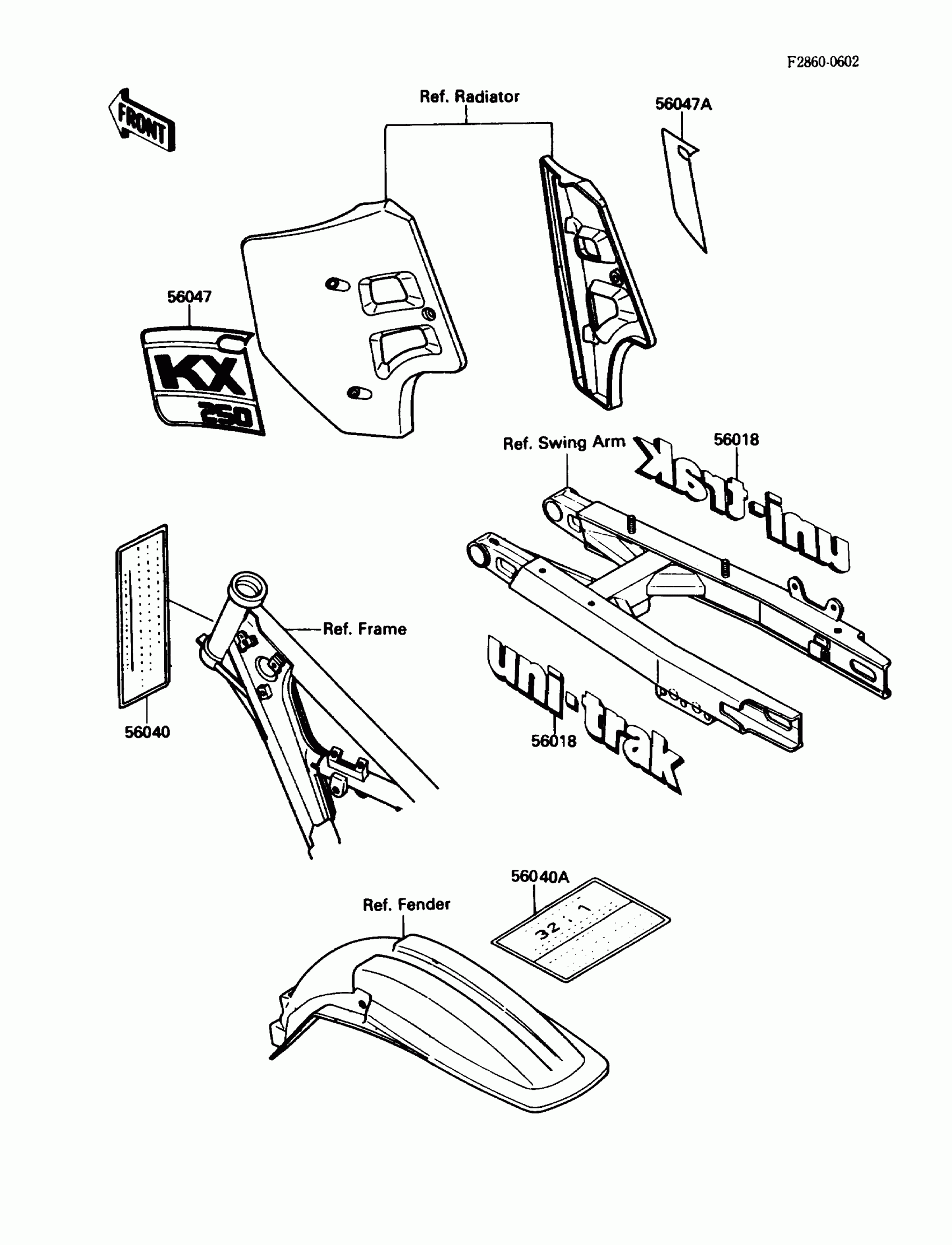

1988 Kawasaki KX™250 Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56018

MARK,SWING ARM,UNI-TRAK

56018-1910

1
Out of stock

56040

LABEL-WARNING,NOISE

56040-1101

1
Out of stock

56040A

LABEL-WARNING,GASOLINE/OIL

56040-1129

1
Out of stock

56047

PATTERN,SHROUD,LH

56047-1787

1

$18.20

In stock

56047A

PATTERN,SHROUD,RH

56047-1788

1

$38.20

In stock
← Frame Fittings Seat →
