1988 Kawasaki KX™250 Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

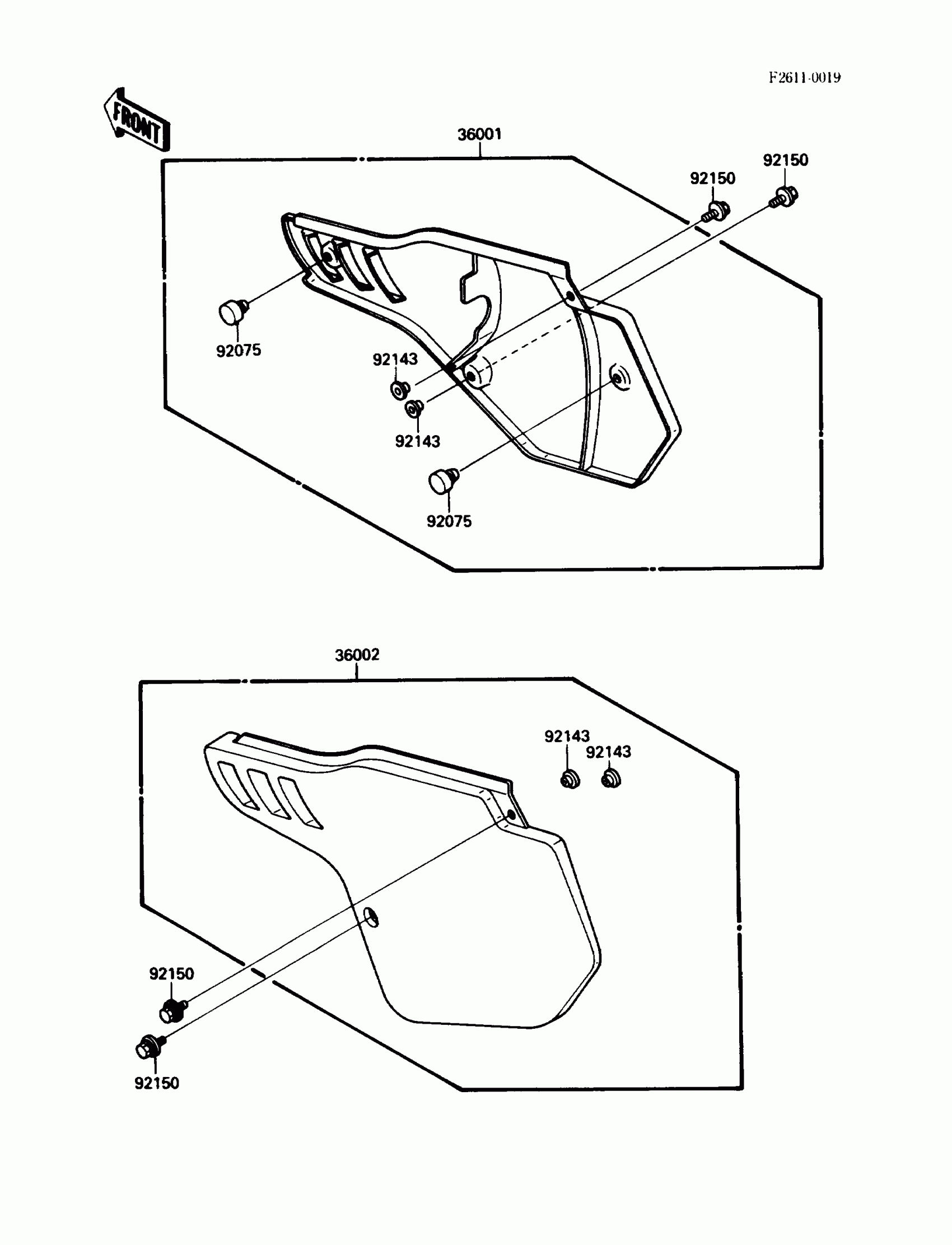

1988 Kawasaki KX™250 Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,RH,GREEN/WHITE

36001-1376-AC

1
Out of stock

36002

COVER-SIDE,LH,L.GREEN

36002-5451-6W

1
Out of stock

92075

DAMPER

92075-1598

1
Out of stock

92143

COLLAR

92143-1196

1
Out of stock

92150

BOLT,FLANGED,6X20

92150-1131

1
Out of stock
