1988 Kawasaki KX™250 Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

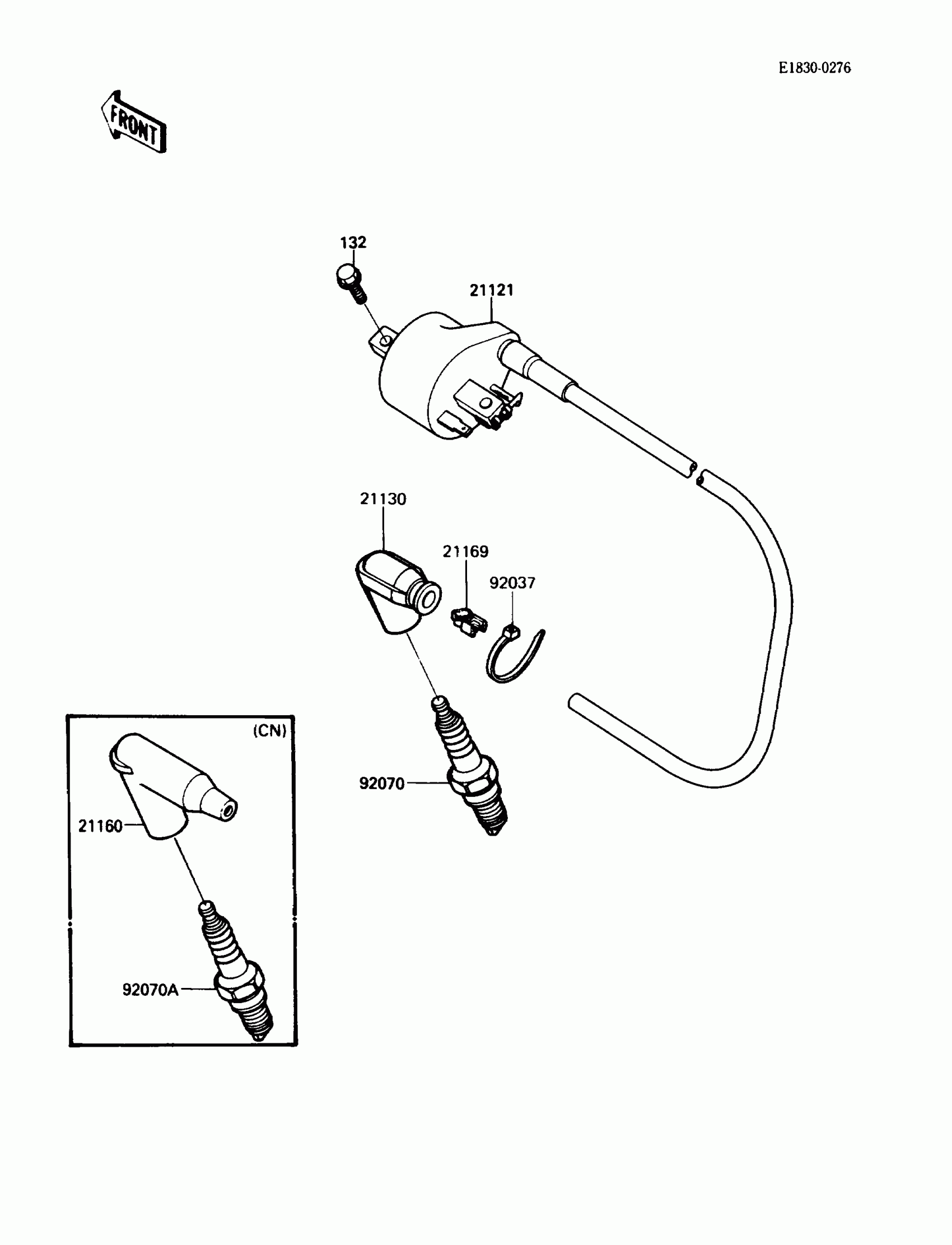

1988 Kawasaki KX™250 Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21121

COIL-IGNITION

21121-1170

1
Out of stock

21130

CAP-SPARK PLUG

21130-1006

1
Out of stock

21160

CAP-ASSY-PLUG

21160-1009

1
Out of stock

21169

TERMINAL,PLUG CAP

21169-001

1
Out of stock

92037

CLAMP

92037-1173

1

$2.92

In stock

92070

1

$4.90

In stock

92070A

1

$6.75

In stock

132

BOLT-FLANGED-SMALL,6X18

132G0618

1
Out of stock
