1988 Kawasaki KX™250 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

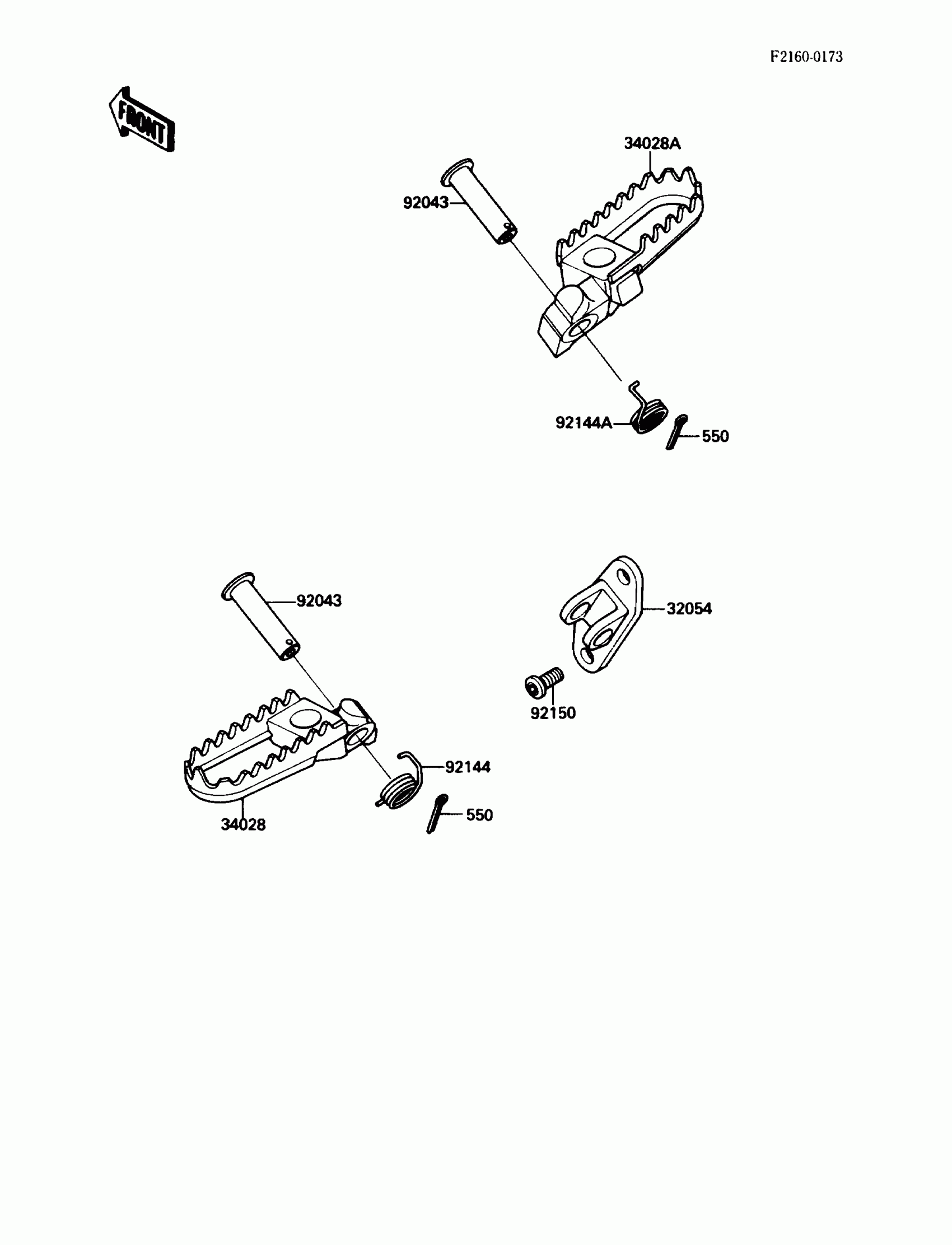

1988 Kawasaki KX™250 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32054

BRACKET-STEP

32054-1164

1
Out of stock

34028

STEP,LH

34028-1233

1
Out of stock

34028A

STEP,RH

34028-1234

1
Out of stock

92043

PIN,10X45.5

92043-1372

1

$9.11

In stock

92144

SPRING,STEP,LH

92144-1249

1

$7.25

In stock

92144A

SPRING,STEP,RH

92144-1250

1

$7.25

In stock

92150

BOLT,SOCKET,10X16

92150-1111

1
Out of stock

550

1

$1.53

In stock
