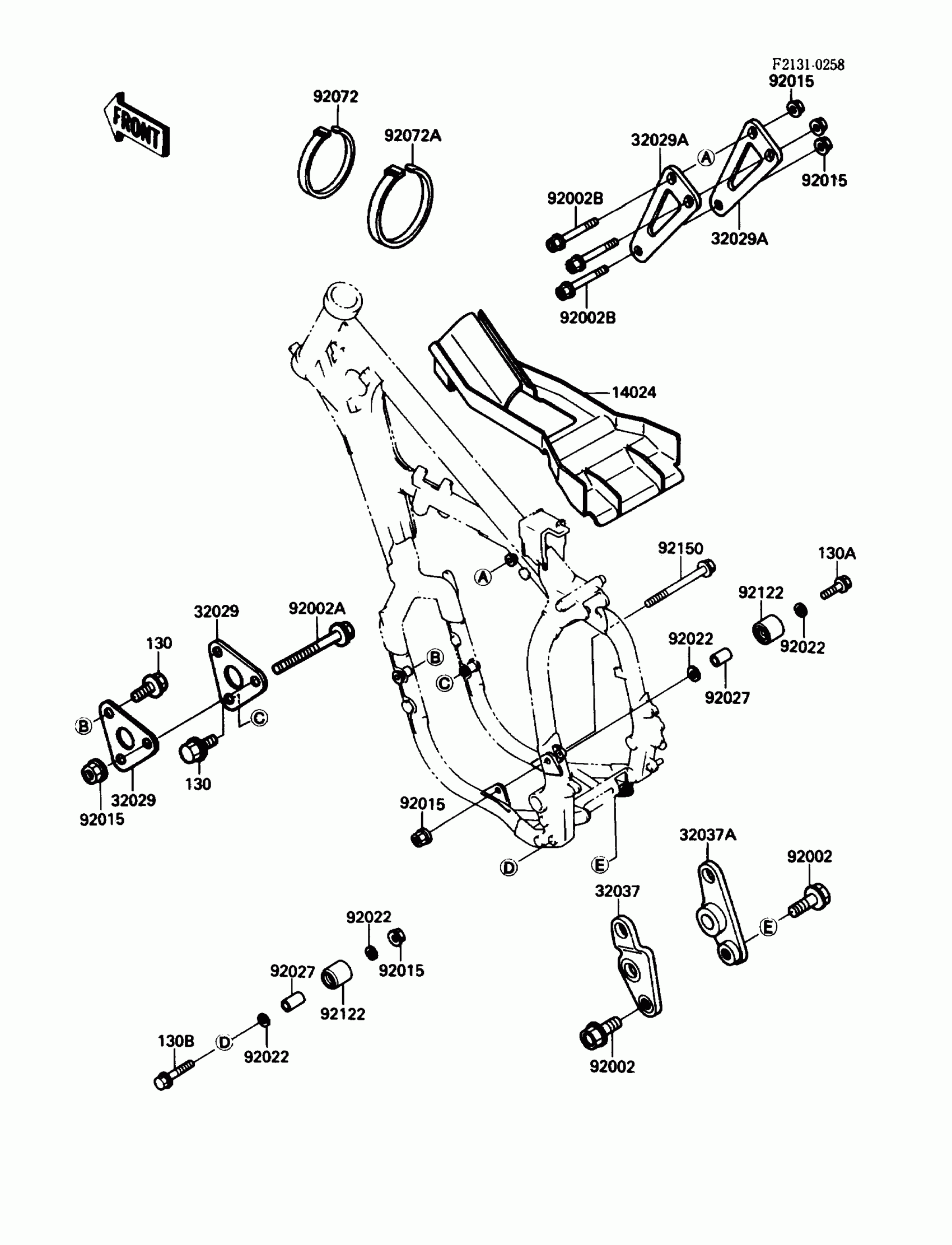

Find the part on the Frame Fittings diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KX™250 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,AIR FILTER

14024-1561

1

$13.05

In stock

32029

BRACKET-ENGINE

32029-1507

1
Out of stock

32029A

BRACKET-ENGINE

32029-1570

1
Out of stock

32037

BRACKET-SHOCKABSORBER,LH

32037-1461

1
Out of stock

32037A

BRACKET-SHOCKABSORBER,RH

32037-1462

1
Out of stock

92002

BOLT,FLANGED,12X24

92002-1845

1
Out of stock

92002A

BOLT,FLANGED,8X90

92002-1849

1
Out of stock

92002B

BOLT,FLANGED,8X47

92002-1850

1
Out of stock

92015

NUT,8MM

92015-1143

1
Out of stock

92022

WASHER,8.5X22X1.5

92022-1629

1
Out of stock

92027

COLLAR,CHAIN ROLLER

92027-1670

1
Out of stock

92072

BAND,L=149

92072-031

1
Out of stock

92072A

BAND,L=218

92072-032

1
Out of stock

92122

ROLLER,CHAIN GUIDE

92122-1153

1
Out of stock

92150

BOLT,FLANGED,8X105

92001-1649

1
Out of stock

130

BOLT-FLANGED,8X25

130G0825

1
Out of stock

130A

BOLT-FLANGED,8X40

130G0840

1
Out of stock

130B

BOLT-FLANGED,8X70

130G0870

1
Out of stock
