1988 Kawasaki KX™250 Engine Cover Diagram

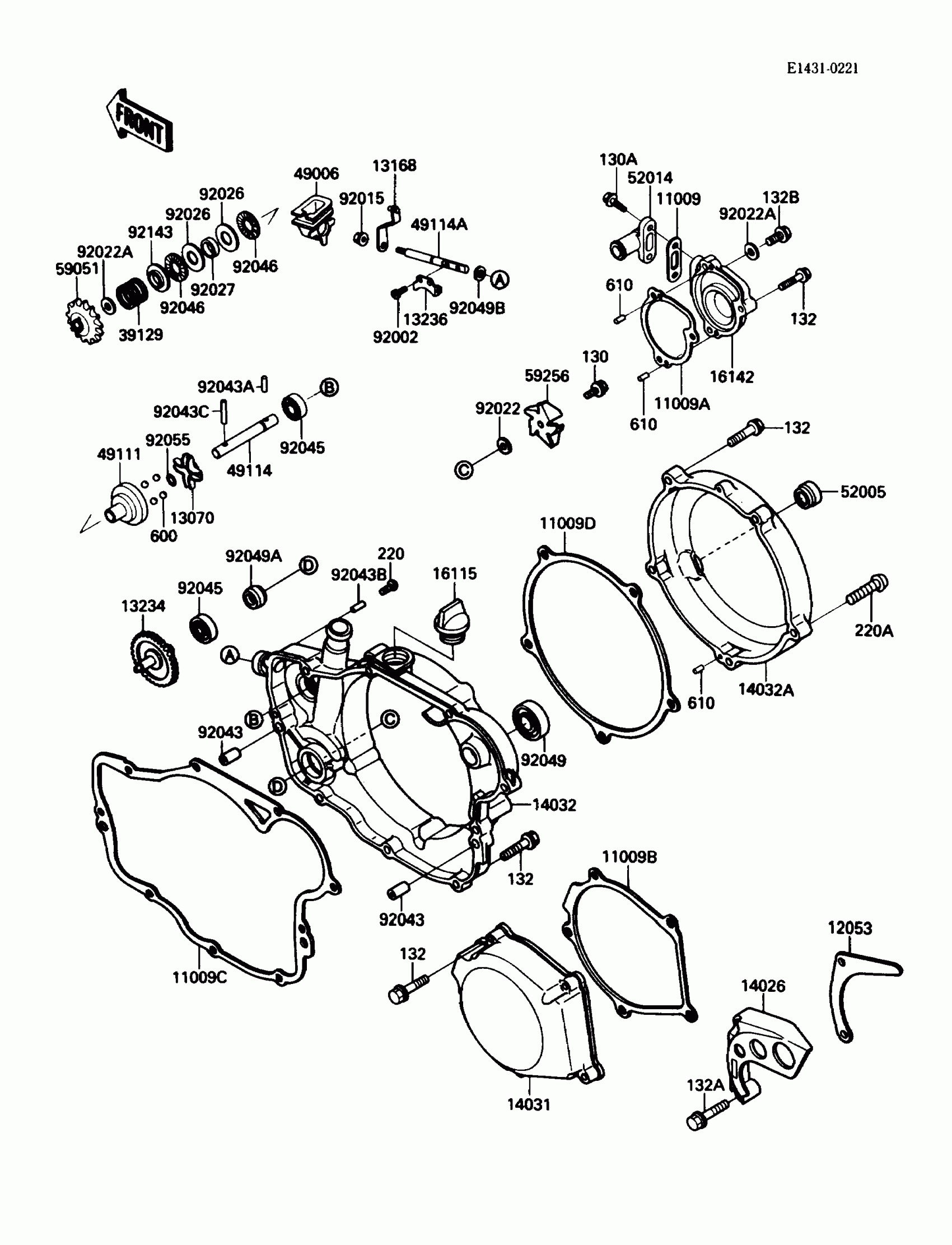

Find the part on the Engine Cover diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
11009
GASKET,ELBOW
11009-1446
11009A
GASKET,WATER PUMP COVER
11009-1464
11009B
GASKET,GENERATOR
11009-1626
11009C
GASKET,CLUTCH COVER,IN
11009-1698
11009D
GASKET,CLUTCH COVER,OUTSIDE
11009-1699
12053
GUIDE-CHAIN
12053-1233
13168
LEVER
13168-1342
13234
SHAFT-COMP,PUMP
13234-1079
13236
LEVER-COMP,GOVERNOR
13236-1182
14026
COVER-CHAIN
14026-1136
14031
COVER-GENERATOR
14031-1218
14032
COVER-CLUTCH,INSIDE
14032-1243
14032A
COVER-CLUTCH,OUTSIDE
14032-1244
16142
COVER-PUMP
16142-1085
39129
SPRING-GOVERNER
39129-1001
49006
BOOT
49006-1202
49114A
SHAFT-GOVERNOR
49114-1061
59256
IMPELLER
59256-1067
92015
NUT,FLANGED,6MM
92015-1193
92049
SEAL-OIL,SB18307
92049-013
92049A
SEAL-OIL,A9567
92049-1081
92049B
SEAL-OIL,SDO8144
92049-1207
130
BOLT-FLANGED
130P0510
130A
BOLT-FLANGED
130P0520
132
BOLT-FLANGED-SMALL
132G0625
132A
BOLT-FLANGED-SMALL,6X30
132G0630
132B
BOLT-FLANGED-SMALL
132G0810
220
SCREW-PAN-CROS,3X6
220B0306
220A
SCREW PAN HEAD 6X25
220B0625
