1988 Kawasaki KX™250 Crankcase Diagram

← All diagrams

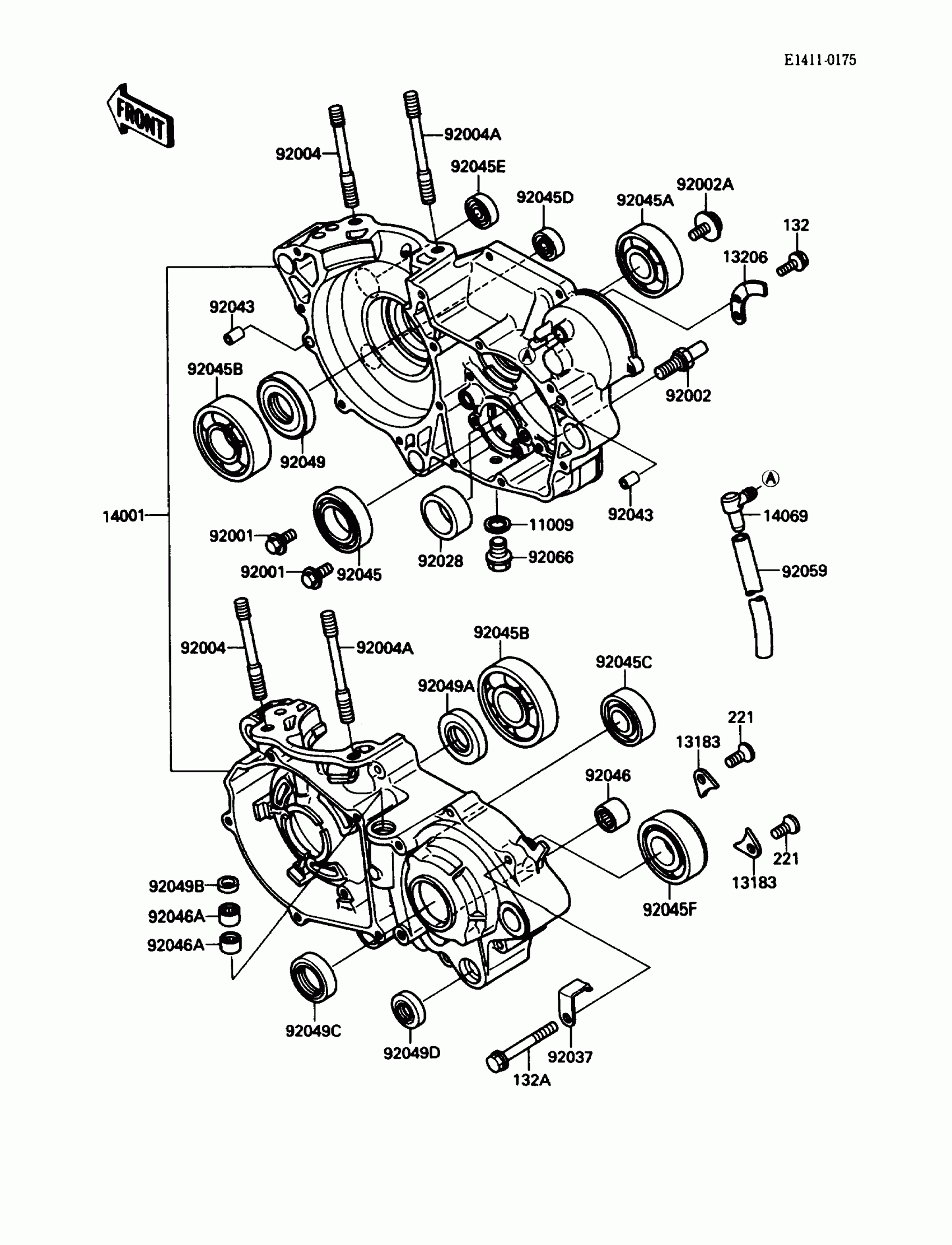

Find the part on the Crankcase diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KX™250 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

13183

PLATE

13183-1182

1

$3.72

In stock

13206

GUIDE-KICK

13206-1001

1
Out of stock

14001

SET-CRANKCASE

14001-5246

1
Out of stock

14069

BREATHER

14069-003

1

$8.16

In stock

92001

BOLT,W/WASHER,6X14

92001-1829

1

$3.53

In stock

92002

BOLT,8X15

92002-1601

1
Out of stock

92002A

BOLT,6X16

92002-1659

1
Out of stock

92004

STUD,10X53

92004-1165

1
Out of stock

92004A

STUD,10X55

92004-1176

1
Out of stock

92028

BUSHING,26X35X14

92028-131

1

$34.76

In stock

92037

CLAMP,HARNESS

92037-1318

1

$7.25

In stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92045

BEARING-BALL,#6905

92045-036

1

$24.62

In stock

92045A

1

$35.79

In stock

92045B

1

$43.98

In stock

92045C

BEARING-BALL,6203SH2C3

92045-1193

1
Out of stock

92045D

BEARING-BALL

92045-1211

1

$9.41

In stock

92045E

BEARING-BALL

92045-1212

1

$9.80

In stock

92045F

BEARING-BALL,TM-SX05A46

92045-1214

1
Out of stock

92046

1

$20.10

In stock

92046A

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,TCJ25457

92049-1051

1
Out of stock

92049A

SEAL-OIL,TCJ20407

92049-1052

1
Out of stock

92049B

SEAL-OIL,AG0353-F0

92049-1262

1
Out of stock

92049C

SEAL-OIL,TB3040

92050-033

1
Out of stock

92049D

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92059

TUBE,6X9X280

92059-1074

1

$14.65

In stock

92066

PLUG,DRAIN

92066-1241

1

$5.39

In stock

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X45

132G0645

1
Out of stock

221

1

$1.73

In stock
