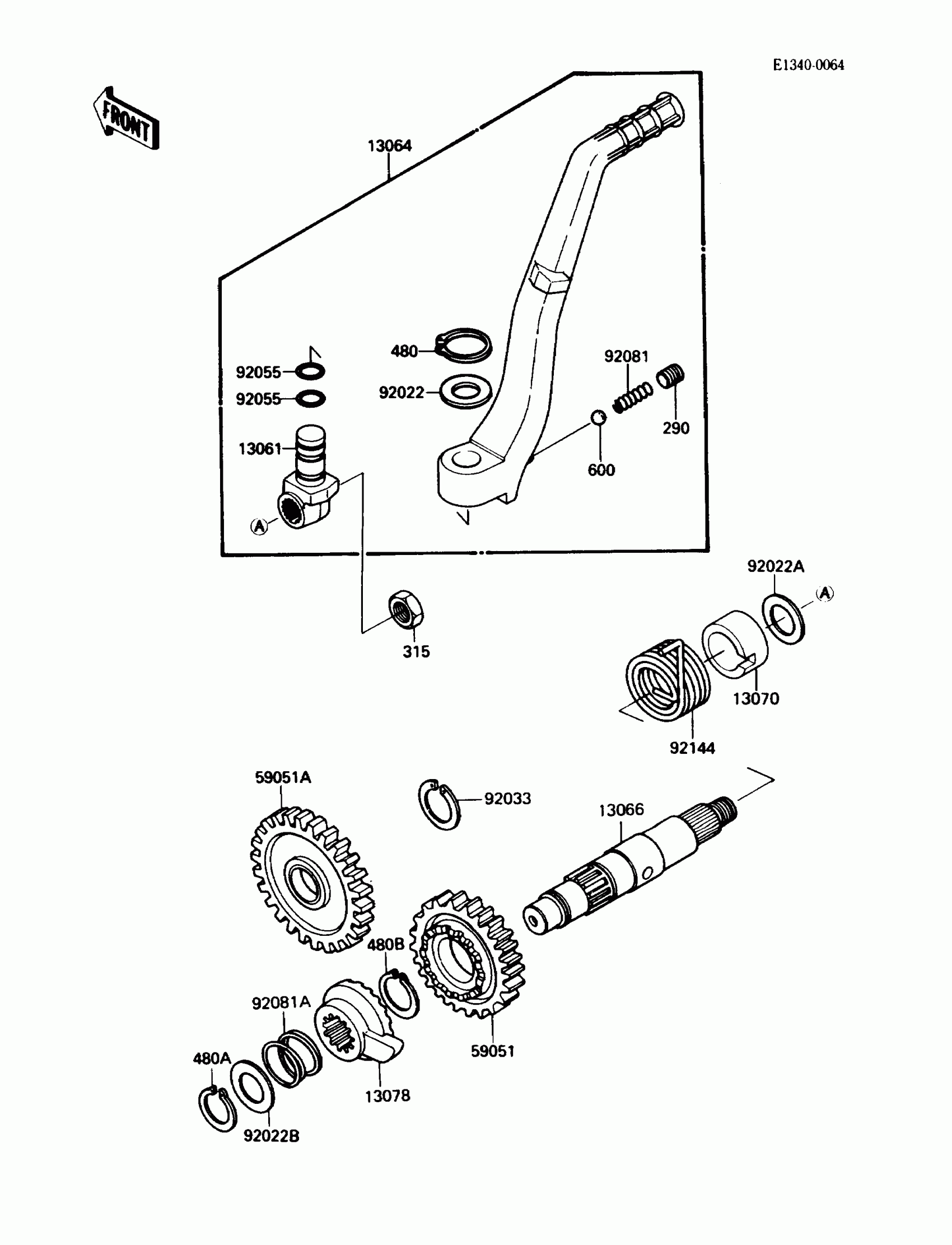

Kawasaki KX™250 Kickstarter Mechanism Diagram

Description

Price

13061

BOSS,KICK PEDAL

13061-1255

Unavailable

13064

LEVER-ASSY-KICK,PEDAL

13064-1135

Unavailable

13066

SHAFT-KICK

13066-1068

Unavailable

13070

GUIDE,KICK SPRING

13070-1063

$17.08

13078

RATCHET

13078-1007

Unavailable

59051

GEAR,KICKSTARTER,26T

59051-1177

Unavailable

59051A

GEAR,KICKSTARTER IDLE,26T

59051-1178

$129.50

92022

WASHER,16.3X24X1

92022-1205

Unavailable

92022A

WASHER,18.3X22X0.5

92022-271

$4.18

92022B

WASHER,16.8X22X0.5

92022-315

$4.67

92033

RING-SNAP,18MM

92033-029

$7.48

92055

RING-O,10X1.5

92055-061

$3.65

92081

SPRING,KICK PEDAL

92081-020

$3.25

92081A

SPRING,RATCHET

92081-122

$6.70

92144

SPRING,KICKSTARTER

92144-1076

$21.52

290

SCREW-SET-SOCKET

290P0812

Unavailable

315

NUT-HEX-FINE

315B1200

Unavailable

480

CIRCLIP-TYPE-C,15MM

480J1500

$1.60

480A

CIRCLIP-TYPE-C,16MM

480J1600

$3.29

480B

CIRCLIP-TYPE-C,18MM

480J1800

$0.98

600

BALL-STEEL,1/4

600A0800

$0.59
