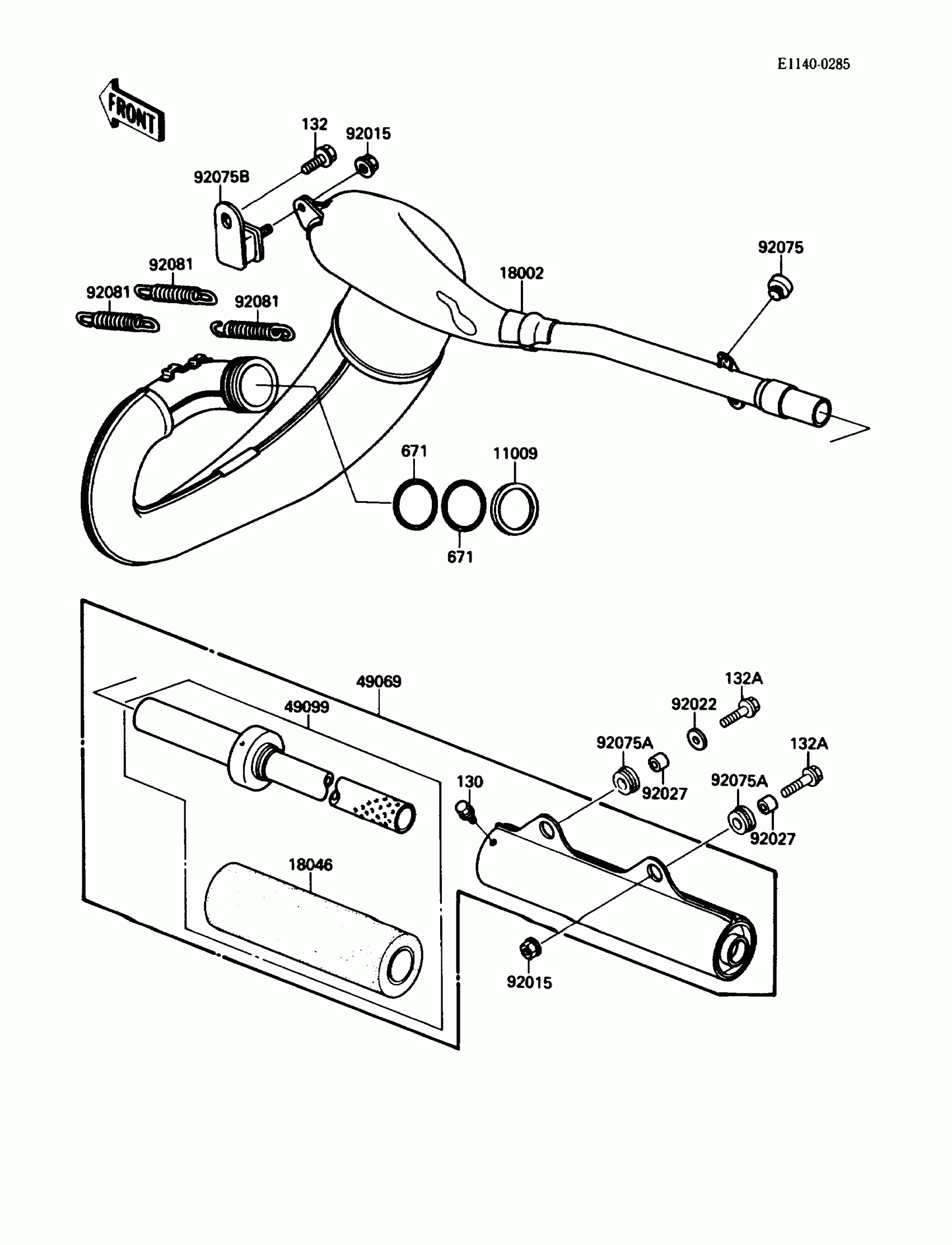

Kawasaki KX™250 Muffler(s) Diagram

Description

Price

11009

GASKET,EXHAUST PIPE

11009-1253

Unavailable

18002

BODY-COMP-MUFFLER

18002-1801

$349.73

18046

WOOL,MUFFLER BAFFLE PIPE

18046-1084

$46.56

49069

MUFFLER-ASSY

49069-1090

$237.03

49099

BAFFLE-PIPE MUFFLER

49099-1248

$74.90

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.5X22X1.6

92022-237

$2.99

92027

COLLAR 6.8X10X10.5

92027-120

$3.81

92075

DAMPER

92075-1598

$6.55

92075A

DAMPER,MUFFLER FITTING

92075-1857

$4.50

92075B

DAMPER,MUFFLER

92075-1891

$29.07

92081

SPRING

92081-1526

$8.94

130

BOLT-FLANGED,5X8

130G0508

Unavailable

132

BOLT-FLANGED-SMALL

132G0612

Unavailable

132A

BOLT-FLANGED-SMALL

132G0625

Unavailable

671

O RING,50MM

671E2550

$11.64
