1988 Kawasaki KX™250 Crankshaft/piston Diagram

← All diagrams

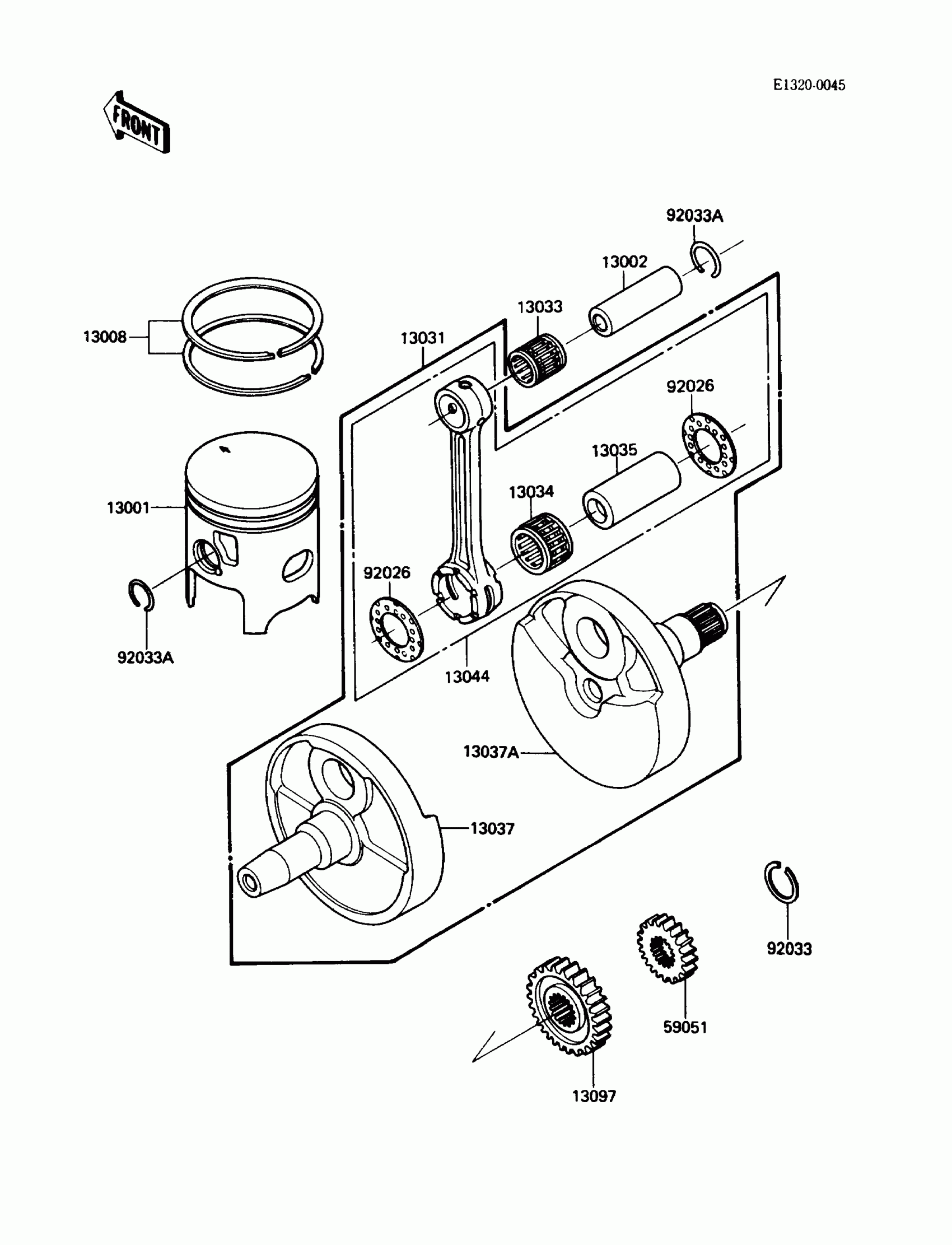

Find the part on the Crankshaft/piston diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KX™250 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13001

PISTON-ENGINE

13001-1246

1
Out of stock

13002

PIN-PISTON

13002-1068

1
Out of stock

13008

RING-SET-PISTON

13008-1091

1

$81.90

In stock

13031

CRANKSHAFT-COMP

13031-1262

1
Out of stock

13033

BEARING-SMALL END

13033-1010

1

$23.08

In stock

13034

BEARING-BIG END,SKTZ243220EGS

13034-1076

1
Out of stock

13035

PIN,CRANK

13035-034

1

$86.76

In stock

13037

CRANKSHAFT,LH

13037-1326

1
Out of stock

13037A

CRANKSHAFT,RH

13037-1327

1
Out of stock

13044

SET-CONNECTING ROD

13044-5056

1
Out of stock

13097

GEAR-PRIMARY SPUR,20T

13097-1208

1
Out of stock

59051

GEAR-SPUR,PUMP,18T

59051-1193

1
Out of stock

92026

SPACER

92026-1241

1

$9.20

In stock

92033

1

$3.94

In stock

92033A

CIRCLIP-PISTON PIN

92036-015

1

$3.93

In stock
