1981 Kawasaki KM100 Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 1981 Kawasaki KM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

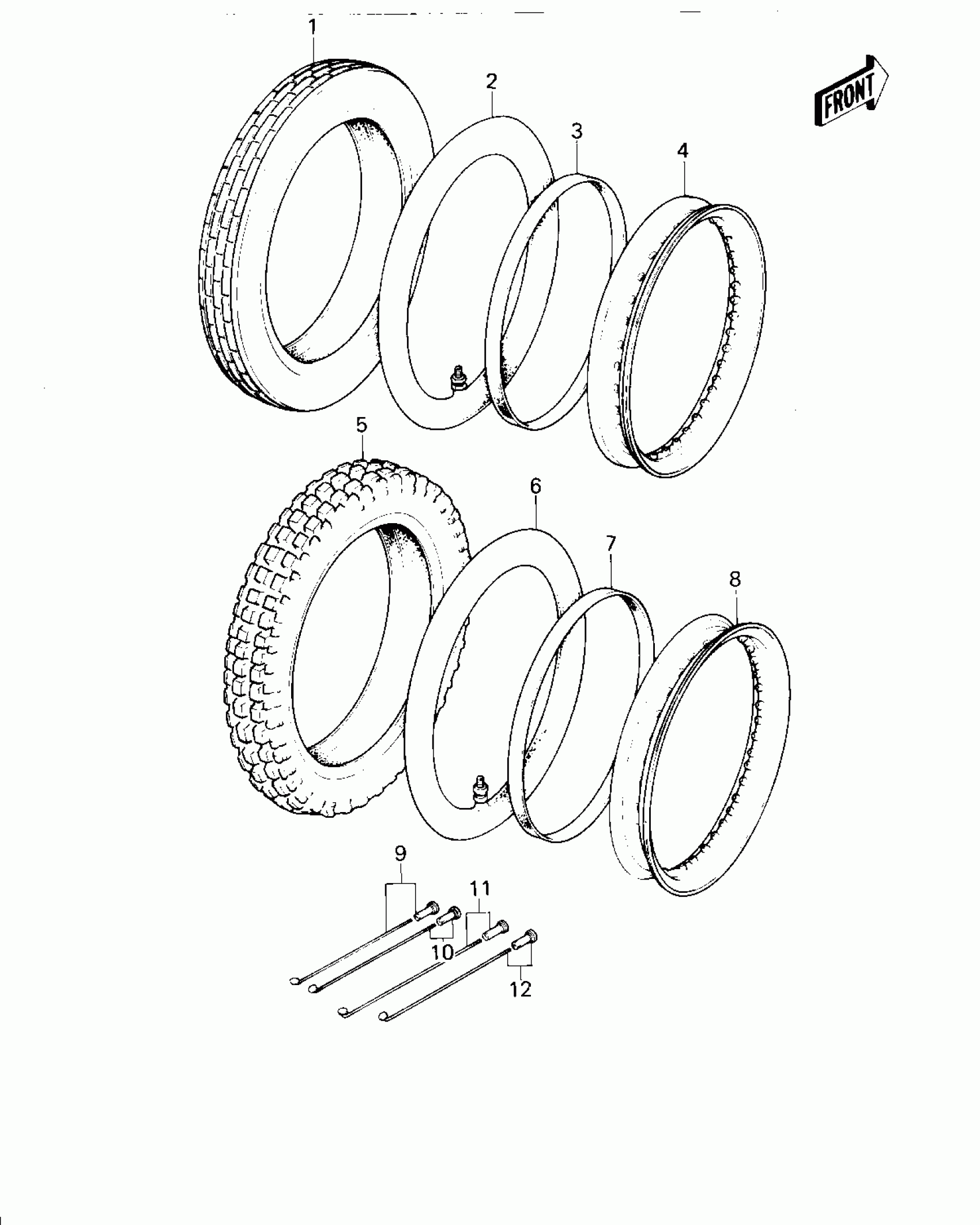

1981 Kawasaki KM100 Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$47.88

In stock

1

TIRE 250-16 NT108A F

41002-1099

1
Out of stock

2

TUBE 225/250-16

41022-041

1
Out of stock

3

BAND,RIM,FRONT

41023-024

1
Out of stock

4

RIM,1.40X16W

41025-069

1
Out of stock

5

1

$58.83

In stock

5

1

$58.83

In stock

6

TUBE 275/410/425-14

41022-042

1
Out of stock

7

BAND,RIM,4.10-14

41023-1025

1
Out of stock

8

RIM,1.60X14W

41025-070

1
Out of stock

9

SPOKE-ASY,FR INNER

41027-065

1

$8.44

In stock

10

SPOKE-ASY FR OUTER

41028-065

1
Out of stock

11

SPOKE-ASY,RR INNER

41027-066

1
Out of stock

12

SPOKE-ASY RR OUTER

41028-066

1

$9.36

In stock
