1981 Kawasaki KM100 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1981 Kawasaki KM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

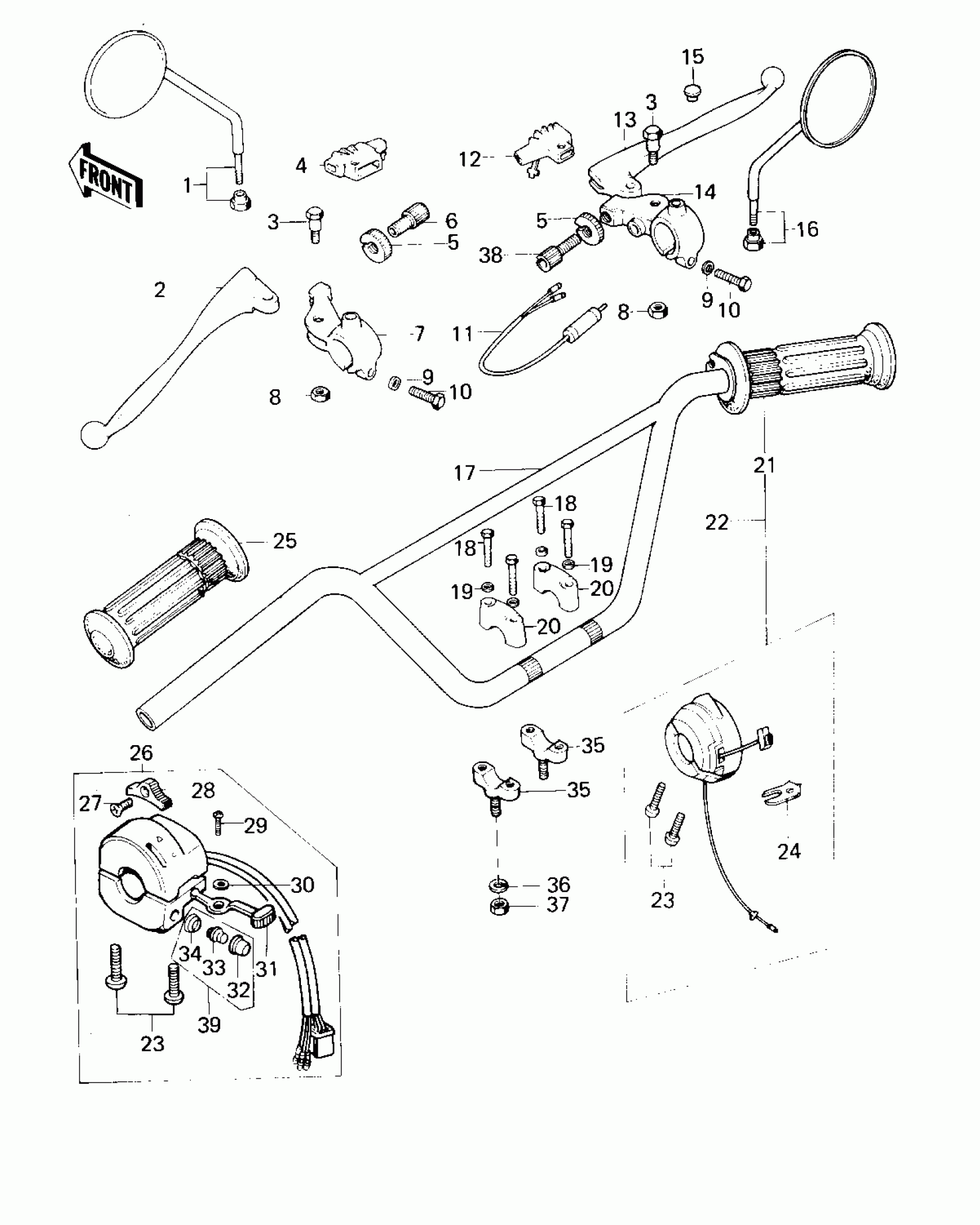

1981 Kawasaki KM100 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MIRROR-ASSY,LH

56003-009

1
Out of stock

2

LEVER-GRIP,CLUTCH

46092-015

1
Out of stock

3

BOLT,5X22

92007-046

1
Out of stock

4

BOOT,LEVER HOLDER

49006-1017

1
Out of stock

5

NUT,CABLE ADJUST LOCK,8MM

46056-005

1
Out of stock

6

SCREW,CABLE ADJUST,8MM

46055-003

1
Out of stock

7

HOLDER,F.BLACK

46094-011-21

1
Out of stock

8

NUT,LOCK,5MM

92019-014

1
Out of stock

9

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

10

BOLT HEX HEAD 6X25

110N0625

1
Out of stock

11

SWITCH,FR BRAKE LAMP

27021-004

1
Out of stock

12

BOOT,LEVER HOLDER

49006-1017

1
Out of stock

13

LEVER-GRIP,FRONT BRAKE

46058-004

1
Out of stock

14

HOLDER,BRAKE LEVER,FR,F.BLACK

46060-009-21

1
Out of stock

15

CAP-RR VIEW MIRROR

92102-009

—
Out of stock

16

MIRROR-ASSY,RH

56002-020

—
Out of stock

17

HANDLEBAR

46004-024

1
Out of stock

18

BOLT 8X38

92001-1405

1
Out of stock

19

WASHER SPRING 8MM

461F0800

1
Out of stock

20

HOLDER-HANDLE,UPP

46012-004

1
Out of stock

21

GRIP ASSY,THROTTLE

46019-039

1
Out of stock

22

CASE ASSY,R.H

46018-047

1
Out of stock

23

SCREW-PAN-CROS,5X25

220B0525

1
Out of stock

24

HOLDER,CONTROL

46037-024

1
Out of stock

25

RUBBER,L.H GRIP

46075-029

1
Out of stock

26

HOUSING-ASSY-CONTROL,LH

46091-040

1
Out of stock

27

SCREW CNTSNK HD 3X8

221B0308A

1
Out of stock

28

KNOB-L.H SWITCH

46044-011

1
Out of stock

29

SCREW PAN HEAD 3X5

220B0305A

1
Out of stock

30

WASHER

92095-010

1
Out of stock

31

KNOB-SWITCH

46044-010

1
Out of stock

32

SWITCH,PUSH BUTTON

27010-1009

1
Out of stock

33

SWITCH,PUSH BUTTON

27010-1009

1
Out of stock

34

SWITCH,PUSH BUTTON

27010-1009

1
Out of stock

35

HOLDER,HANDLEBAR,BUFF

46012-002-80

1
Out of stock

36

WASHER SPRING 10MM

461F1000

1
Out of stock

37

NUT-HEX-FINE,10MM

314B1000

1
Out of stock

38

SCREW,CABLE ADJUST

46055-010

1
Out of stock

39

SWITCH,PUSH BUTTON

27010-1009

1
Out of stock
