1981 Kawasaki KM100 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1981 Kawasaki KM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

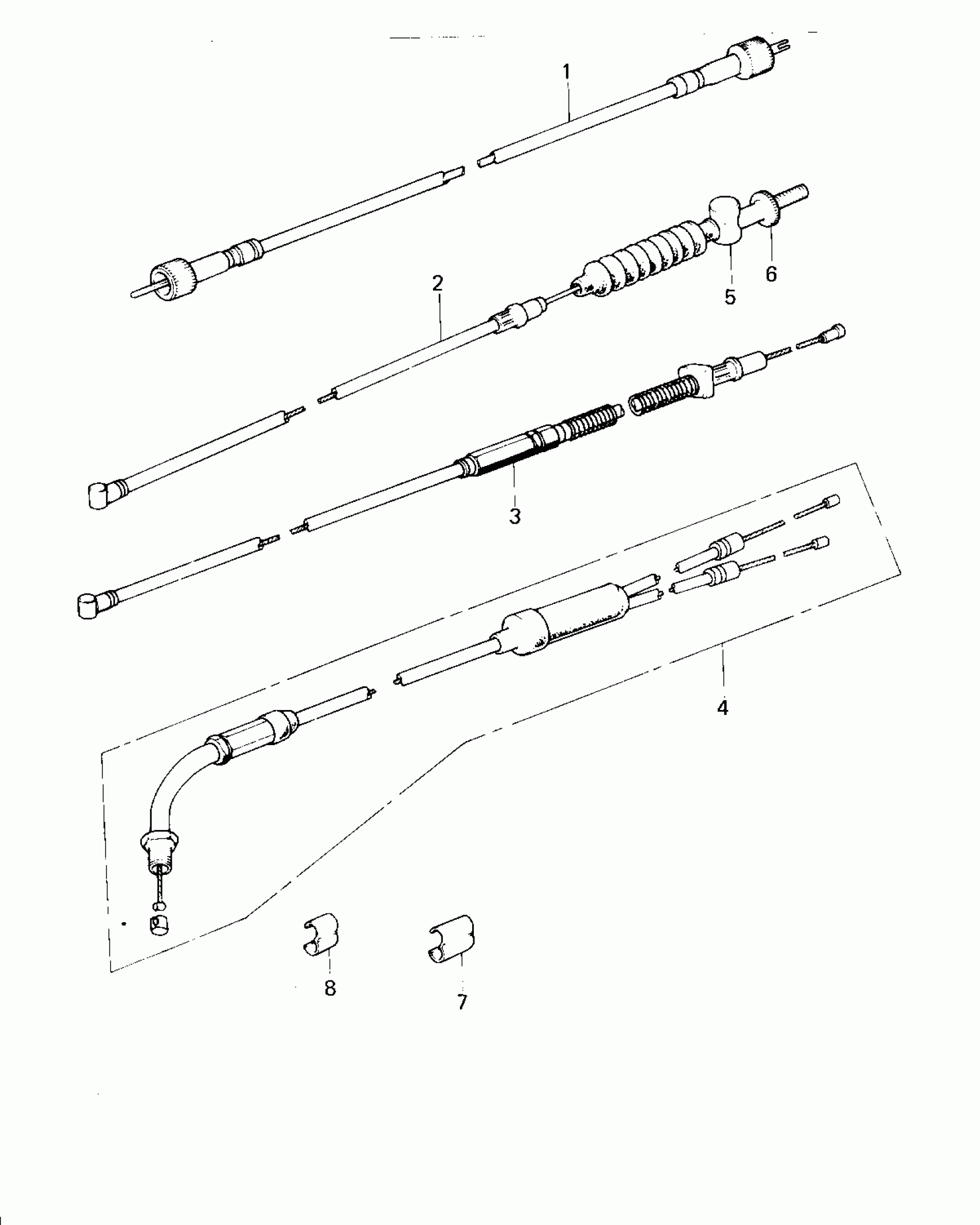

1981 Kawasaki KM100 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE,SPEEDOMETER

54001-054

1
Out of stock

1

CABLE,SPEEDOMETER

54001-1022

1
Out of stock

2

CABLE,FRONT BRAKE

54005-074

1
Out of stock

2

CABLE,FRONT BRAKE

54005-1021

1
Out of stock

3

CABLE, CLUTCH

54011-073

1
Out of stock

4

CABLE,CONTROL

54012-109

1
Out of stock

4

CABLE,THROTTLE

54012-1056

1
Out of stock

5

PIN,BRAKE CABLE

92043-082

1

$4.92

In stock

6

NUT,CABLE ADJUSTER LOCK

92015-052

1
Out of stock

7

CLAMP-CABLE

92037-069

1
Out of stock

8

CLAMP-CABLE

92037-069

1
Out of stock
