1981 Kawasaki KM100 Swing Arm/shock Absorbers Diagram

← All diagrams

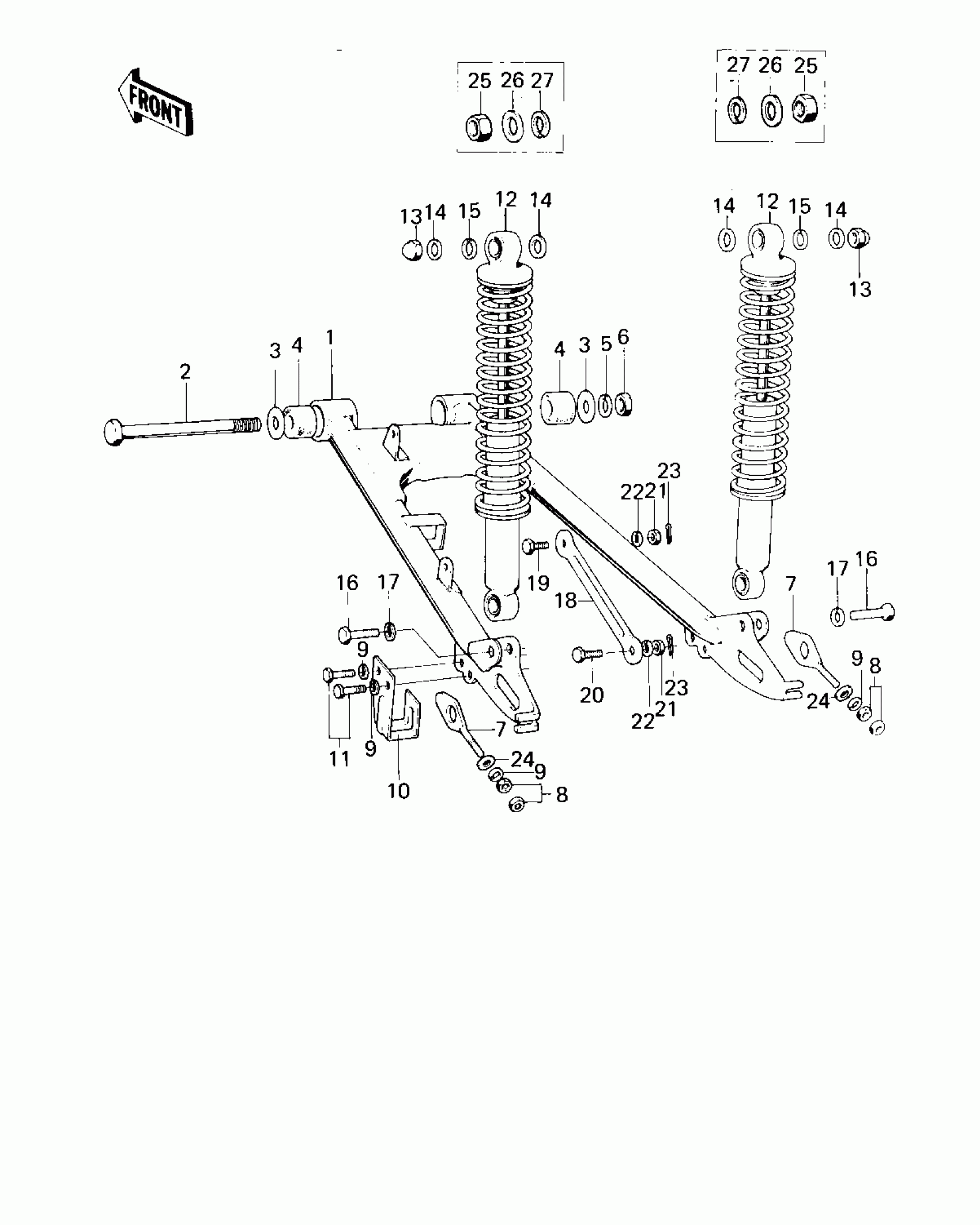

Find the part on the Swing Arm/shock Absorbers diagram for your 1981 Kawasaki KM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KM100 Swing Arm/shock Absorbers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ARM,SWINGING

33001-055

1
Out of stock

1

ARM,SWINGING

33001-1045

1
Out of stock

2

SHAFT,SWING ARM PIVOT

33032-043

1
Out of stock

3

WASHER-PLAIN-SMALL,12MM

410B1200

1
Out of stock

4

BUSHING-RUBBER

92092-005

1
Out of stock

5

WASHER-SPRING,12MM

461F1200

1
Out of stock

6

NUT-HEX-FINE

314B1200

1
Out of stock

7

ADJUSTER CHAIN

33040-008

1
Out of stock

8

NUT 6MM

311B0600

1
Out of stock

9

WASHER SPRING 6MM

461F0600

1
Out of stock

10

GUARD,CHAIN

55020-012

1
Out of stock

11

BOLT-UPSET 6X14

112B0614

1
Out of stock

12

SHOCK ABSBR RR

45014-100

1
Out of stock

12

SHOCK ABSBR RR

45014-1019

1
Out of stock

12

SHOCKABSORBER

45014-1214

1
Out of stock

13

NUT,CAP,12MM

92020-014

1
Out of stock

14

WASHER-PLAIN-SMALL,12MM

410B1200

1
Out of stock

15

WASHER-SPRING,12MM

461F1200

1
Out of stock

16

BOLT HEX HEAD 10X28

113N1028

1
Out of stock

16

BOLT-UPSET,10X30

112G1030

1
Out of stock

17

WASHER SPRING 10MM

461F1000

1
Out of stock

18

TORQUE LINK,RR BRAKE

43007-037

1
Out of stock

19

BOLT,10X25

92003-017

1
Out of stock

20

BOLT,10X32

92003-003

1
Out of stock

21

NUT-HEX-FINE,10MM

314B1000

1
Out of stock

22

WASHER SPRING 10MM

461F1000

1
Out of stock

23

PIN COTTER 2.0X15

550D2015

1
Out of stock

23

PIN COTTER

92041-005

1
Out of stock

24

WASHER,6.5X16X2

92022-116

1
Out of stock

25

NUT-HEX-FINE

315B1200

1
Out of stock

26

WASHER-PLAIN-SMALL,12MM

410B1200

1
Out of stock

27

WASHER-SPRING,12MM

461F1200

1
Out of stock
