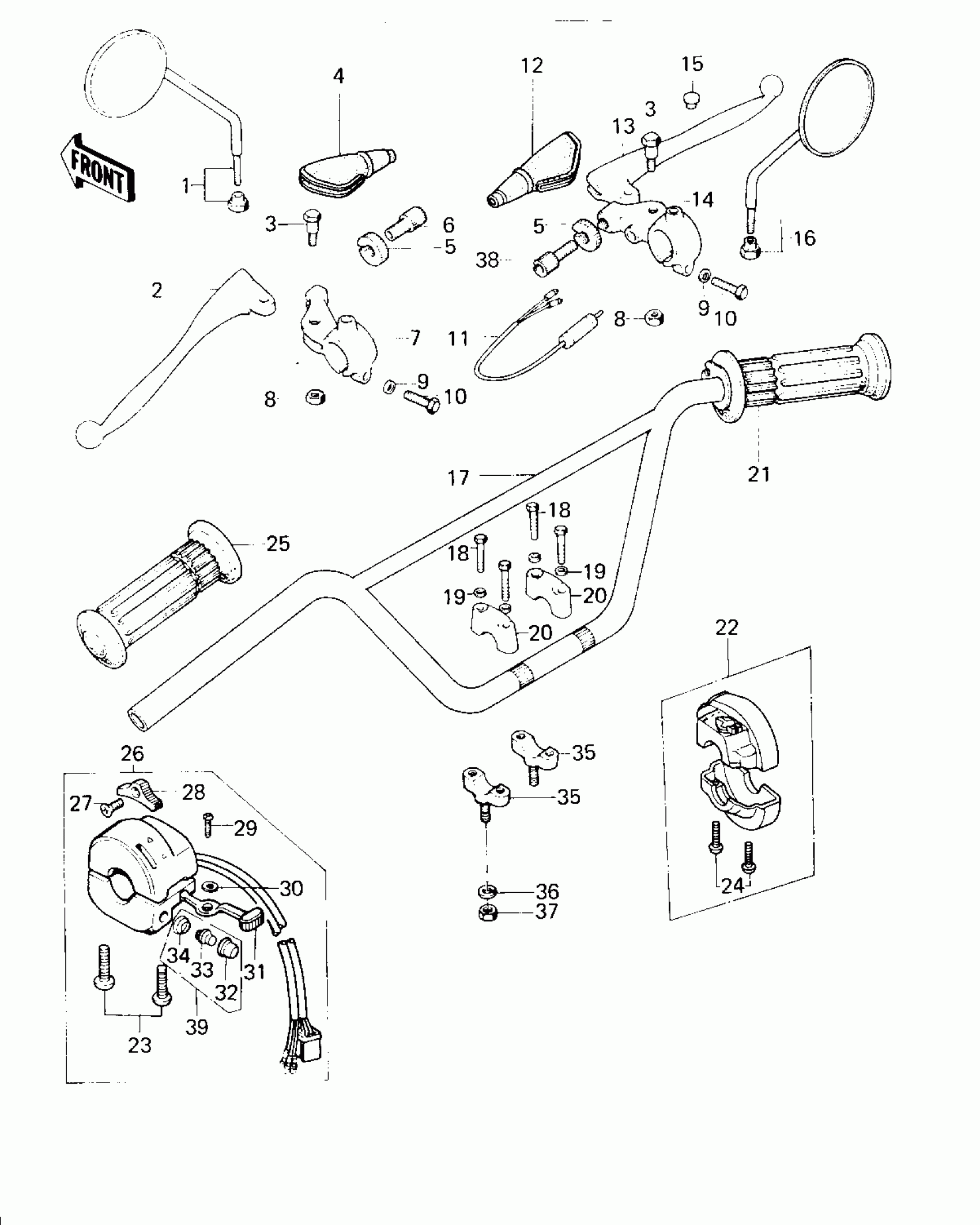

Kawasaki KM100 HANDLEBAR (KM100-A6/A7) Diagram

#

Description
Price

1

MIRROR-ASSY,LH

56003-009

$60.14

2

LEVER-GRIP,CLUTCH

46092-015

$19.69

3

BOLT,5X22

92007-046

$6.08

4

BOOT,LEVER HOLDER

49006-1017

$14.12

5

NUT,CABLE ADJUST LOCK,8MM

46056-005

$6.75

6

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

7

HOLDER,F.BLACK

46094-011-21

$36.50

8

NUT,LOCK,5MM

92019-014

$4.00

9

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

10

BOLT HEX HEAD 6X25

110N0625

Unavailable

11

SWITCH,FR BRAKE LAMP

27021-004

$31.99

12

BOOT,LEVER HOLDER

49006-1017

$14.12

13

LEVER-GRIP,FRONT BRAKE

46058-004

$20.15

14

HOLDER,BRAKE LEVER,FR,F.BLACK

46060-009-21

$41.48

15

CAP-RR VIEW MIRROR

92102-009

Unavailable

16

MIRROR-ASSY,RH

56002-020

Unavailable

17

HANDLEBAR

46004-024

Unavailable

18

BOLT HEX HEAD 8X35

110N0835

Unavailable

18

BOLT HEX HEAD

114N0835

Unavailable

19

WASHER SPRING 8MM

461F0800

Unavailable

20

HOLDER-HANDLE,UPP

46012-004

Unavailable

21

GRIP-ASSY,THROTTLE

46019-1005

$33.35

22

HOUSING-ASSY-CONTROL,RH

46091-1041

Unavailable

23

SCREW, PAN HEAD, 5 X 25

220B0525A

$3.24

24

SCREW-PAN-CROS

220B0518

Unavailable

25

GRIP,LH

46075-1004

$16.22

26

HOUSING-ASSY-CONTROL,LH

46091-040

Unavailable

27

SCREW CNTSNK HD 3X8

221B0308A

Unavailable

28

KNOB-L.H SWITCH

46044-011

Unavailable

29

SCREW PAN HEAD 3X5

220B0305A

$0.54

30

WASHER

92095-010

Unavailable

31

KNOB-SWITCH

46044-010

Unavailable

32

SWITCH,PUSH BUTTON

27010-1009

$7.01

33

SWITCH,PUSH BUTTON

27010-1009

$7.01

34

SWITCH,PUSH BUTTON

27010-1009

$7.01

35

HOLDER,HANDLEBAR,BUFF

46012-002-80

$30.44

36

WASHER SPRING 10MM

461F1000

Unavailable

37

NUT-HEX-FINE,10MM

314B1000

Unavailable

38

SCREW,CABLE ADJUST

46055-010

$29.42

39

SWITCH,PUSH BUTTON

27010-1009

$7.01
