1996 Kawasaki KLX650 Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

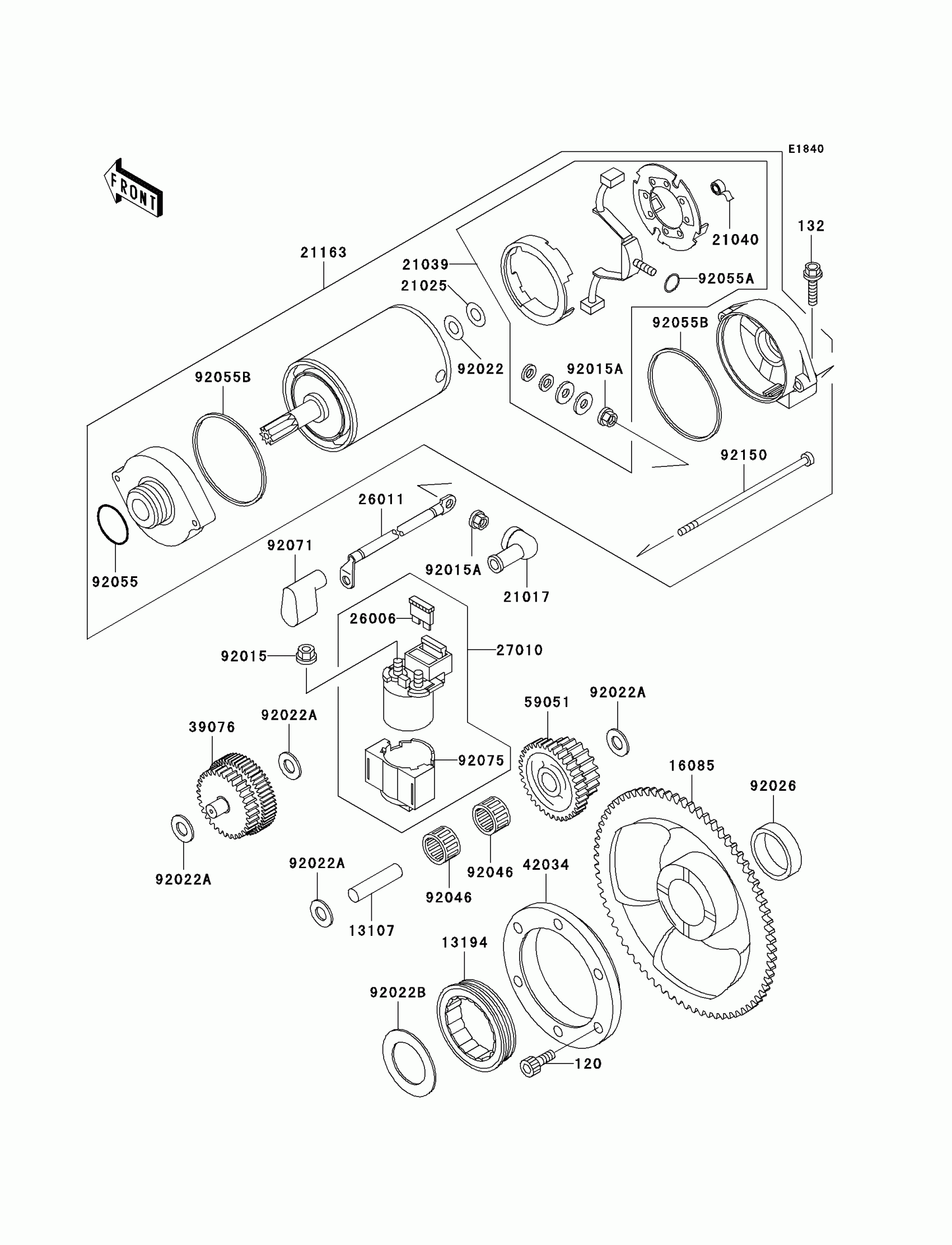

1996 Kawasaki KLX650 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X18

120P0818

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132Y0625

1
Out of stock

13107

SHAFT,IDLER

13107-1135

1

$17.39

In stock

13194

CLUTCH-ONEWAY

13194-1089

1

$111.60

In stock

16085

1

$355.87

In stock

21017

1

$7.48

In stock

21025

WASHER,9.1X18X0.2

21025-011

—

$5.42

In stock

21039

BRUSH,CARBON

21039-1060

1

$85.95

In stock

21040

SPRING-BRUSH

21040-1055

1

$8.24

In stock

21163

STARTER-ELECTRIC

21163-1217

1
Out of stock

26006

1

$4.39

In stock

26011

WIRE-LEAD,STARTER MOTOR

26011-1583

1
Out of stock

27010

SWITCH

27010-1243

1
Out of stock

39076

LIMITER,STARTER IDLE GEAR

39076-1065

1
Out of stock

42034

COUPLING

42034-1094

1

$138.51

In stock

59051

GEAR-SPUR,39T&20T

59051-1298

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92015A

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92022

WASHER,9.1X18X0.8

92022-1132

1

$5.42

In stock

92022A

WASHER,10.2X20X0.5

92022-1649

1

$3.43

In stock

92022B

WASHER,32.2X50X1.0

92022-1650

1

$7.49

In stock

92026

SPACER,32.1X38.8X10.1

92026-1426

1
Out of stock

92046

BEARING-NEEDLE,K10X14X10

92046-1134

1
Out of stock

92055

RING-O

92055-1276

1

$7.86

In stock

92055A

RING-O,4.5X2.0

92055-1370

1

$4.17

In stock

92055B

1

$9.58

In stock

92071

GROMMET,TERMINAL

92071-1130

1

$10.85

In stock

92075

DAMPER,MAGNETIC SWITCH

92075-1863

1
Out of stock

92150

BOLT

92150-1693

1
Out of stock
