1996 Kawasaki KLX650 Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

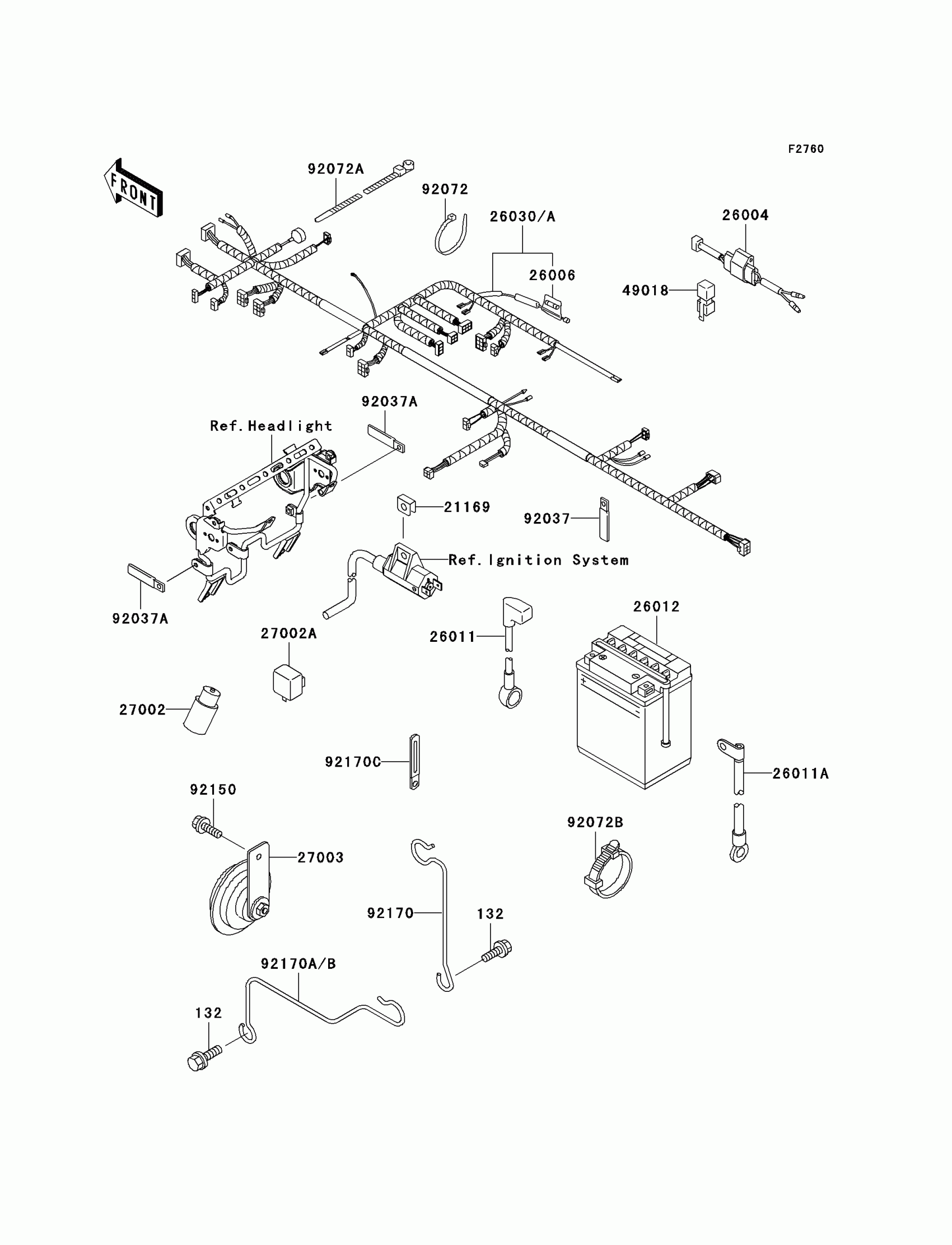

1996 Kawasaki KLX650 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

21169

TERMINAL

21169-1066

1

$4.81

In stock

26004

FUSE-ASSY

26004-1089

1

$46.37

In stock

26006

1

$4.05

In stock

26011

1

$32.41

In stock

26011A

WIRE-LEAD,BATTERY(-)

26011-1548

1
Out of stock

26012

1

$145.53

In stock

26030A

HARNESS,MAIN

26030-1221

1
Out of stock

27002

RELAY-ASSY

27002-1051

1

$49.55

In stock

27002A

1

$53.03

In stock

27003

HORN

27003-1288

1

$76.52

In stock

49018

DIODE

49018-1058

1

$42.68

In stock

92037

CLAMP

92037-1679

1

$4.37

In stock

92037A

CLAMP

92037-1993

1

$4.37

In stock

92072

BAND,L=250

92072-1237

1

$1.80

In stock

92072A

BAND,L=215

92072-1288

1

$10.90

In stock

92072B

BAND,L=140

92072-1293

1

$5.61

In stock

92150

BOLT,6X14

92150-1340

1

$4.02

In stock

92170

CLAMP,HARNESS

92170-1359

1
Out of stock

92170B

CLAMP,HARNESS

92170-1428

1
Out of stock

92170C

CLAMP

92170-1514

1

$3.43

In stock
