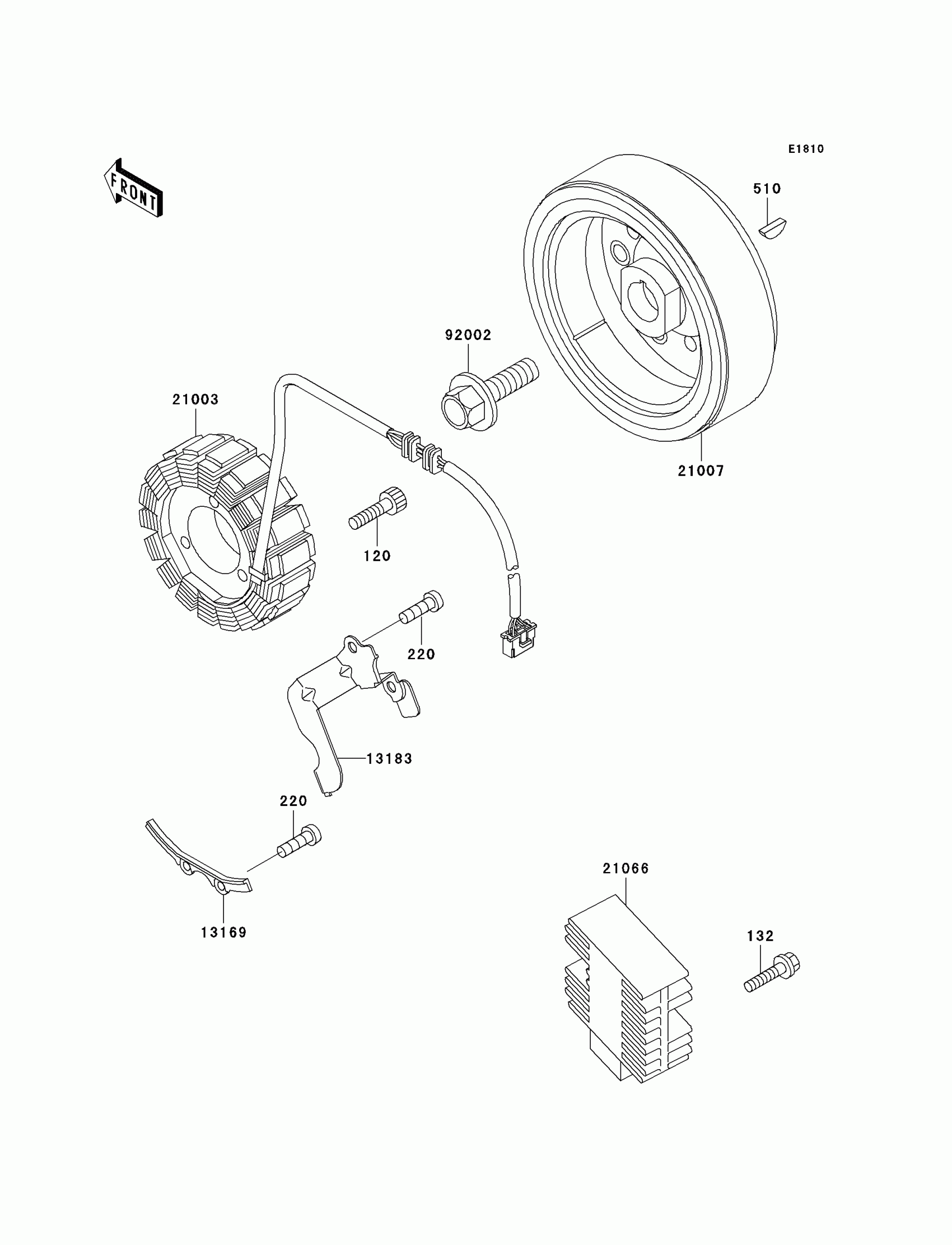

Kawasaki KLX650 Generator Diagram

#

Description

Price

120

BOLT-SOCKET,6X30

120P0630

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

220

SCREW PAN HEAD 5X8

220B0508

Unavailable

510

KEY-WOODRUFF

510A4200

$2.04

13169

PLATE,PULSING COIL LEAD

13169-1882

$8.63

13183

PLATE,LEAD WIRE

13183-1989

Unavailable

21003

STATOR

21003-1255

$588.81

21007

ROTOR,MAGNETO

21007-1255

Unavailable

21066

REGULATOR-VOLTAGE

21066-1091

Unavailable

92002

BOLT,FLANGED,12X40

92002-1693

$17.58
