1996 Kawasaki KLX650 Ignition Switch Diagram

← All diagrams

Find the part on the Ignition Switch diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

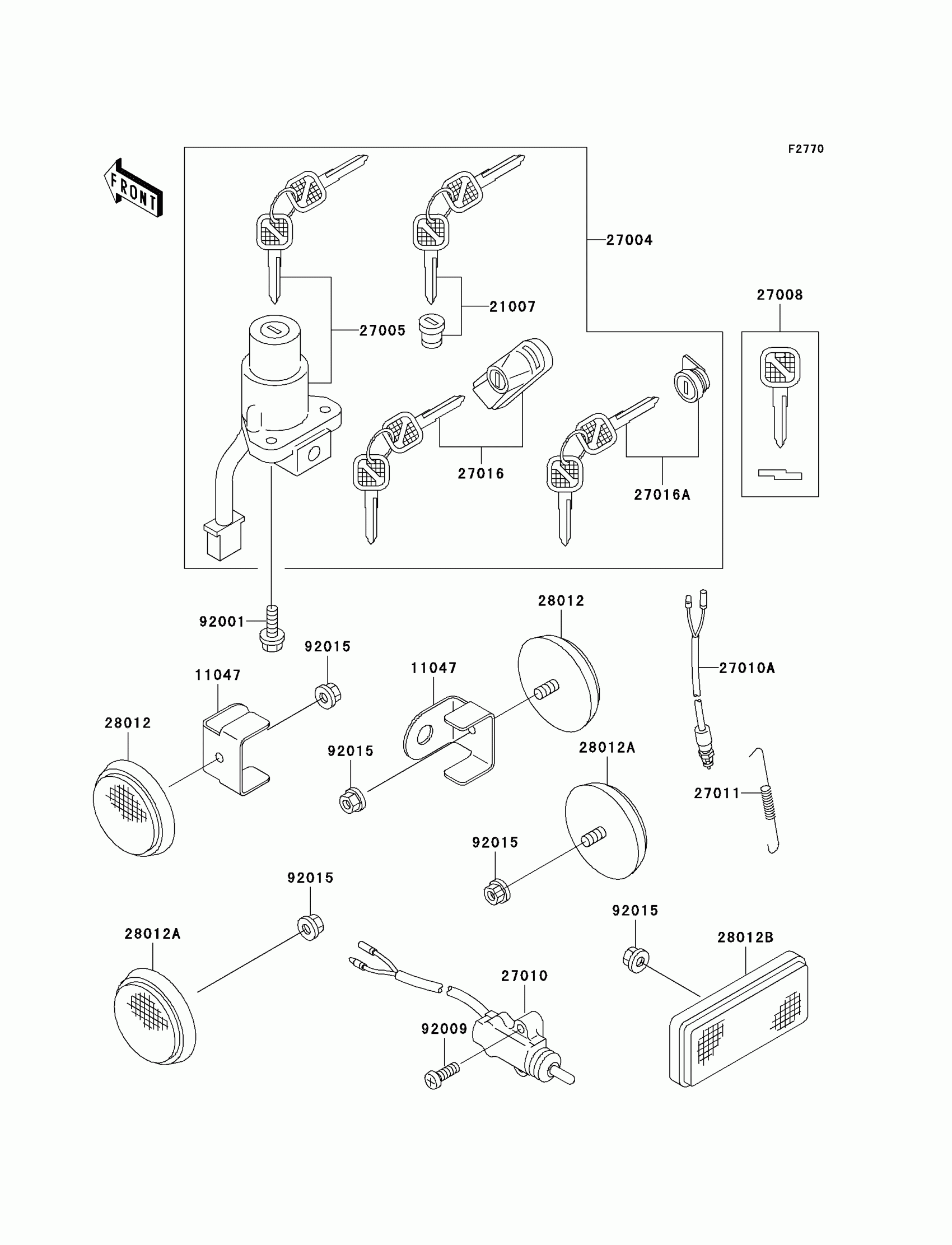

1996 Kawasaki KLX650 Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11047

BRACKET,REFLECTOR

11047-1441

1

$8.75

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5023

1

$74.13

In stock

27004

SWITCH-ASSY

27004-5443

1

$239.92

In stock

27005

SWITCH-ASSY-IGNITION

27005-1170

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1105

1
Out of stock

27010

SWITCH,SIDE STAND

27010-1264

1
Out of stock

27010A

SWITCH,BRAKE LAMP

27010-1323

1

$42.42

In stock

27011

1

$23.12

In stock

27016

LOCK-ASSY,HELMET

27016-5110

1

$37.42

In stock

27016A

LOCK-ASSY,TOOL BOX

27016-5193

1
Out of stock

28012

1

$21.56

In stock

28012A

REFLECTOR-REFLEX

28012-1067

1

$21.58

In stock

28012B

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

92001

BOLT,TORX,6X20

92001-1465

1
Out of stock

92009

SCREW,5X20

92009-1459

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock
