1996 Kawasaki KLX650 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

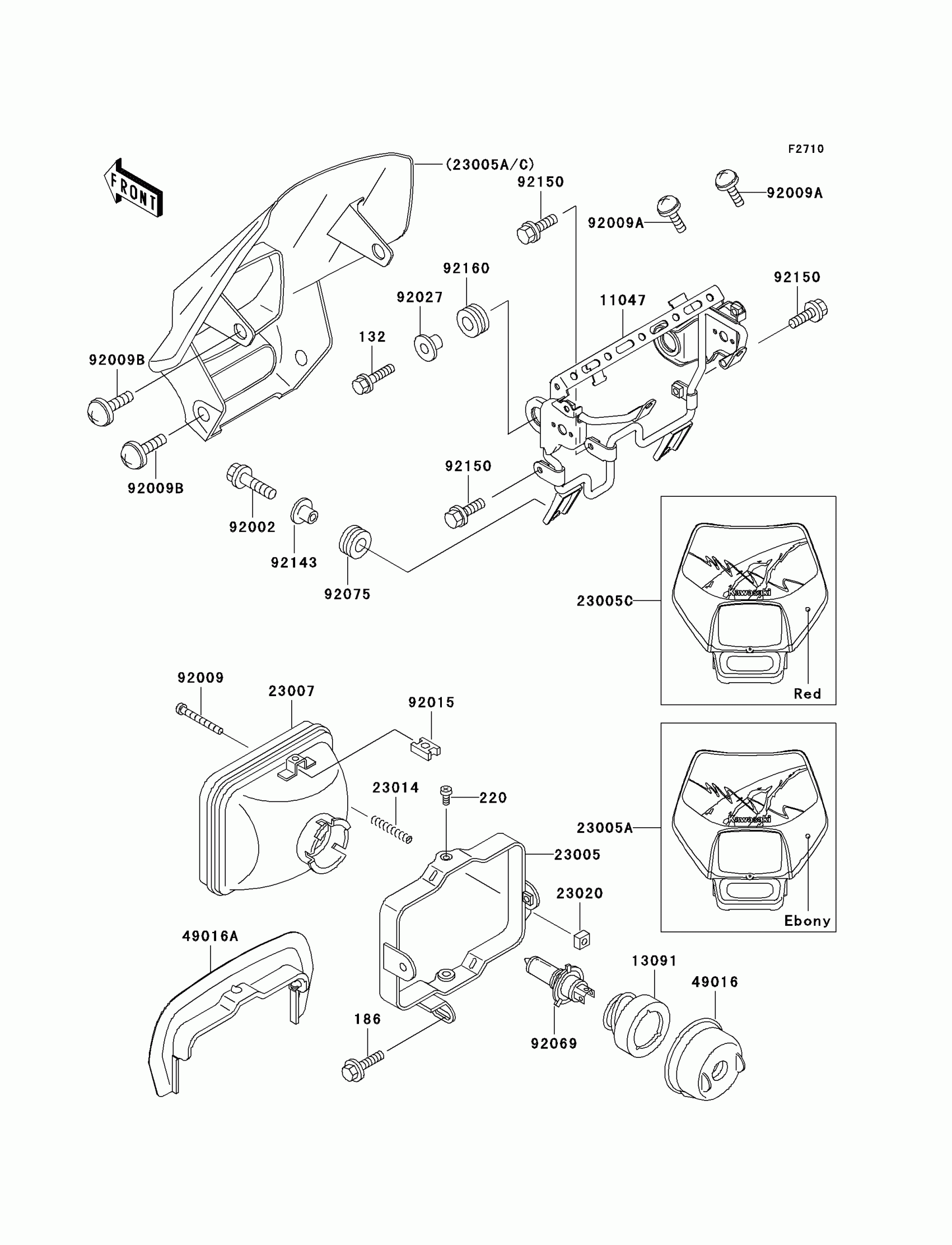

1996 Kawasaki KLX650 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,8X25

132G0825

1
Out of stock

186

BOLT

186B0614

1
Out of stock

220

SCREW PAN HEAD 5X8

220B0508

1
Out of stock

11047

BRACKET,HEAD LAMP

11047-1881

1
Out of stock

13091

HOLDER,SOCKET

13091-1558

1

$11.36

In stock

23005

BODY-COMP-HEAD LAMP

23005-1052

1

$47.15

In stock

23005C

BODY-COMP-HEAD LAMP,S.RED

23005-5024-6B

1
Out of stock

23007

LENS-COMP,HEAD LAMP

23007-1280

1

$135.45

In stock

23014

1

$3.19

In stock

23020

1

$3.69

In stock

49016

COVER-SEAL,SOCKET

49016-1037

1

$11.19

In stock

49016A

1

$29.44

In stock

92002

BOLT,UPSET-WP,6X22

92002-1262

1
Out of stock

92009

SCREW,4X48

92009-1065

1
Out of stock

92009A

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92009B

SCREW,6X14

92009-1288

1
Out of stock

92015

NUT,5MM

92015-1354

1

$3.90

In stock

92027

1

$8.16

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92075

1

$3.72

In stock

92143

COLLAR

92143-1353

1

$6.81

In stock

92150

BOLT,6X12

92150-1435

1

$3.43

In stock

92160

DAMPER

92160-1007

1

$4.37

In stock
