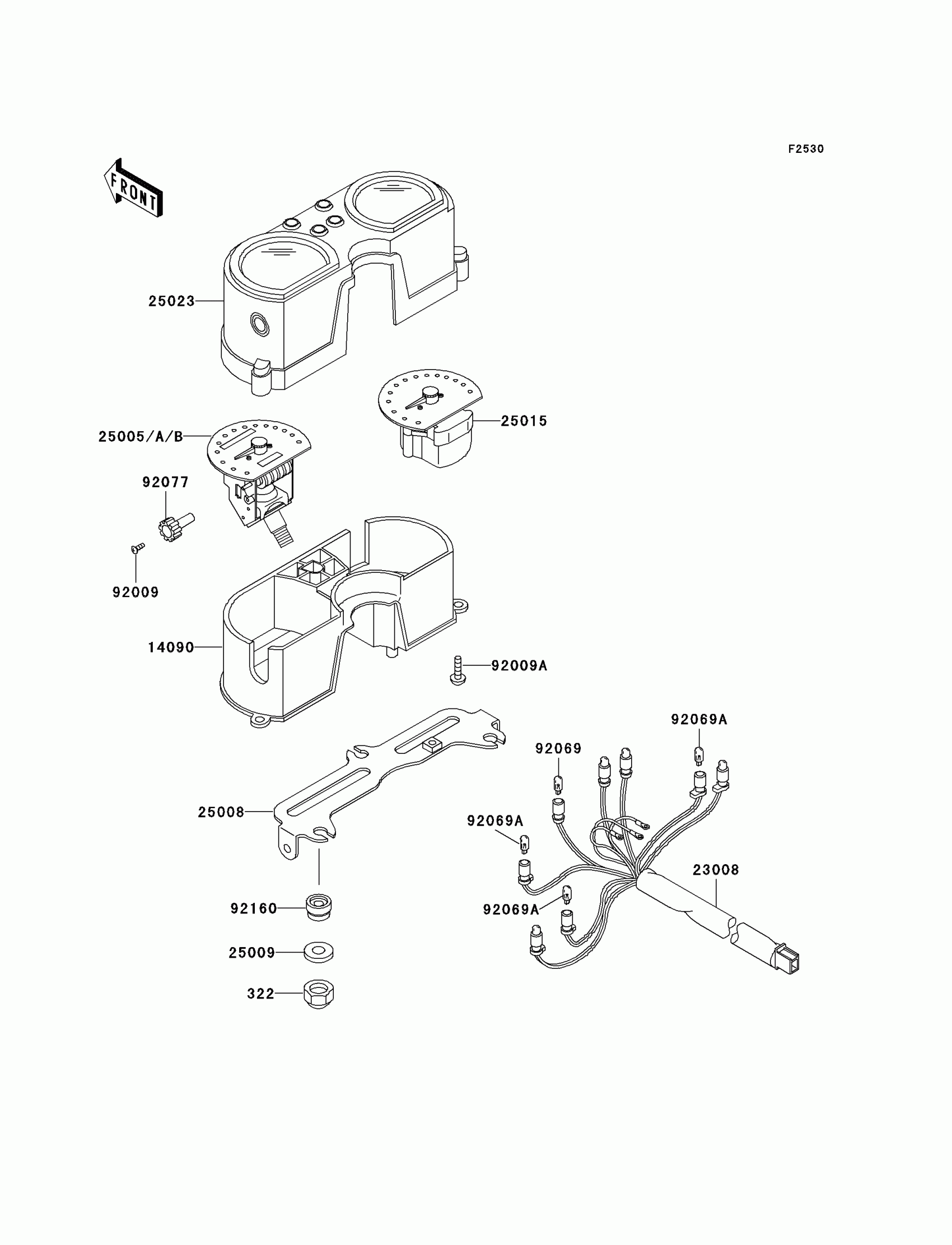

Kawasaki KLX650 Meter(s) Diagram

Description

Price

322

NUT-CAP

322C0500

Unavailable

14090

COVER,METER HOUSING

14090-1303

$132.68

23008

SOCKET-ASSY,METER

23008-1506

$131.44

25008

BRACKET-METER

25008-1194

$68.40

25009

WASHER,5.2X16X1.2

25009-004

$2.88

25015

TACHOMETER,X1000R/MIN

25015-1320

Unavailable

25023

COVER-METER CASE,UPP

25023-1202

$135.35

92009

SCREW,2X6,BLACK

92009-1172

$2.15

92009A

SCREW,TAPPING,4X14

92009-1503

$3.20

92069

BULB,14V 3W,T6.5

92069-1068

$3.81

92069A

BULB,12V 1.7W,T6.5

92069-1070

$4.88

92077

KNOB,METER

92077-1059

$7.36

92160

DAMPER

92160-1460

$4.32

25005

SPEEDOMETER,KPH

25005-1534

Unavailable

25005B

SPEEDOMETER,MPH

25005-1541

$317.36
