2004 Kawasaki KLX400SR (Canada Only) Oil Pump Diagram

← All diagrams

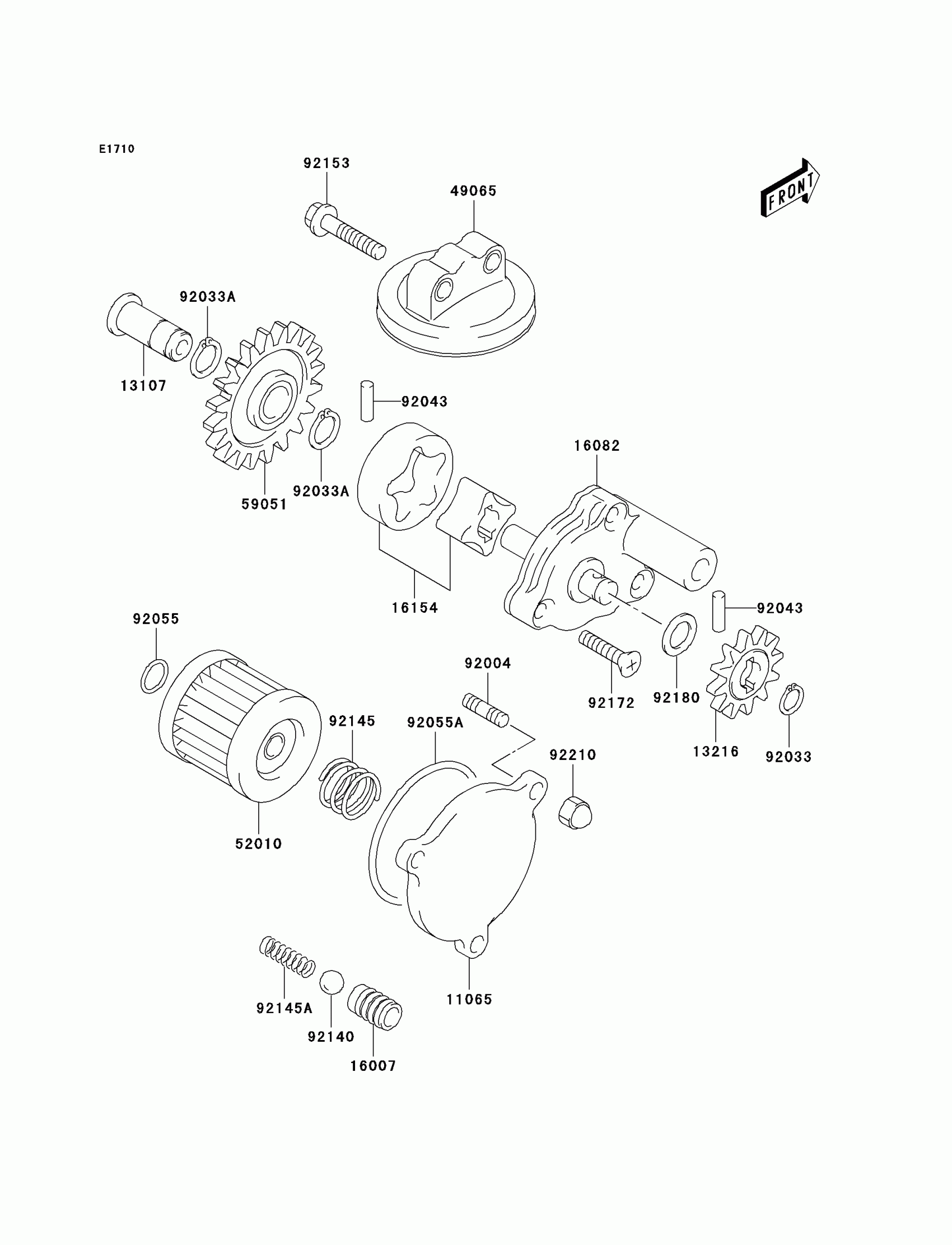

Find the part on the Oil Pump diagram for your 2004 Kawasaki KLX400SR (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KLX400SR (Canada Only) Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,OIL FILTER

11065-S002

1
Out of stock

13107

SHAFT,OIL PUMP IDLE GEAR

13107-S004

1
Out of stock

13216

GEAR-COMP,OIL PUMP

13216-S012

1
Out of stock

16007

SEAT-SPRING

16007-S006

1
Out of stock

16082

PUMP-ASSY-OIL

16082-S004

1
Out of stock

16154

ROTOR-PUMP

16154-S001

1
Out of stock

49065

FILTER-OIL

49065-S004

1
Out of stock

52010

ELEMENT-OIL FILTER

52010-S004

1
Out of stock

59051

GEAR-SPUR,OIL PUMP

59051-S005

1
Out of stock

92004

STUD

92004-S007

1
Out of stock

92033

RING-SNAP

92033-S001

1
Out of stock

92033A

RING-SNAP

92033-S023

1
Out of stock

92043

PIN,4X15.8

92043-S007

1
Out of stock

92055

RING-O,D=1.9

92055-S005

1
Out of stock

92055A

RING-O,D=2.4

92055-S010

1
Out of stock

92140

BALL,OIL CHECK VALVE

92140-S003

1
Out of stock

92145

SPRING,OIL FILTER CAP

92145-S004

1
Out of stock

92145A

SPRING,OIL CHECK VALVE

92145-S090

1
Out of stock

92153

BOLT

92153-S067

1
Out of stock

92172

SCREW,OIL PUMP

92172-S167

1
Out of stock

92180

SHIM,10X18X0.5

92180-S001

1
Out of stock

92210

NUT

92210-S045

1
Out of stock
