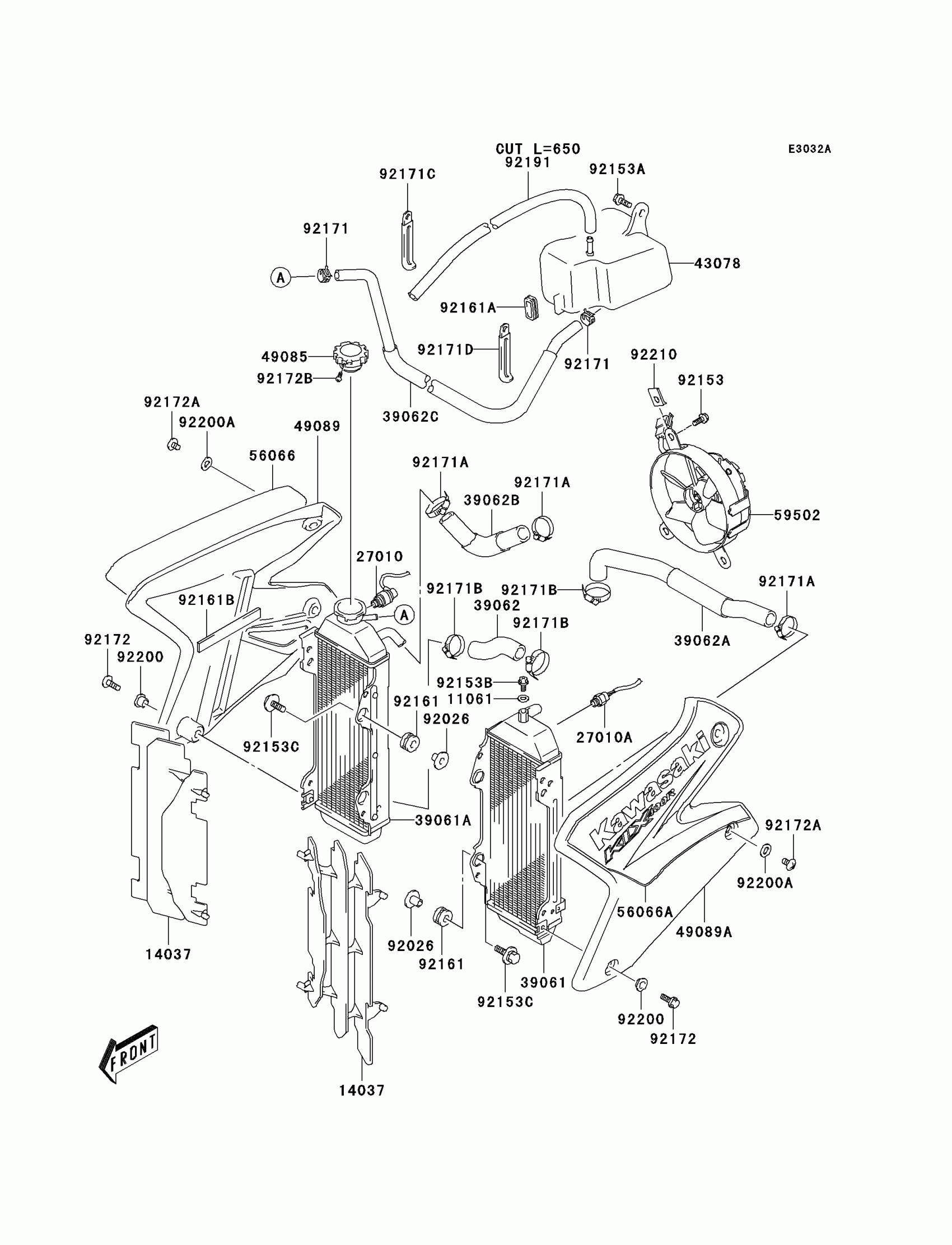

Kawasaki KLX400SR (Canada Only) Radiator(KLX400-A2) Diagram

#

Description
Price

11061

GASKET,6.4X11.5X0.8

11061-S002

$3.76

14037

SCREEN

14037-S001

$20.81

27010

SWITCH,WATER TEMP

27010-S029

$98.17

27010A

SWITCH,FAN

27010-S030

$94.63

39061

RADIATOR-ASSY,LH

39061-S004

$445.16

39061A

RADIATOR-ASSY,RH

39061-S005

$487.61

39062

HOSE-COOLING,INLET

39062-S020

$13.59

39062A

HOSE-COOLING,OUTLET

39062-S021

$44.80

39062B

HOSE-COOLING,JOINT

39062-S022

Unavailable

39062C

HOSE-COOLING,RESERVOIR TANK

39062-S023

Unavailable

43078

RESERVOIR

43078-S006

$54.16

49085

CAP-ASSY-PRESSURE

49085-S003

$44.37

49089

SHROUD-ENGINE,RH,L.GREEN

49089-S003-535

$71.64

49089A

SHROUD-ENGINE,LH,L.GREEN

49089-S004-535

$71.64

56066

PATTERN,RH,WHT/GLD/BLK/GRN

56066-S021-553

$133.68

56066A

PATTERN,LH,WHT/GLD/BLK/GRN

56066-S022-553

Unavailable

59502

FAN-ASSY

59502-S004

$380.08

92026

SPACER

92026-S123

$5.27

92153

BOLT

92153-S010

$1.64

92153A

BOLT

92153-S011

$1.64

92153B

BOLT,AIR VENT

92153-S055

$5.10

92153C

BOLT,6X25

92153-S105

$3.83

92161

DAMPER

92161-S114

$3.78

92161A

DAMPER,RESERVOIR TANK

92161-S115

$4.17

92161B

DAMPER,RADIATOR COVER

92161-S127

$8.27

92171

CLAMP

92171-S002

Unavailable

92171A

CLAMP

92171-S008

$8.56

92171B

CLAMP,RADIATOR HOSE

92171-S088

$9.35

92171C

CLAMP,RESERVOIR HOSE

92171-S116

$2.41

92171D

CLAMP,L=45

92171-S132

$1.88

92172

SCREW

92172-S055

$1.64

92172A

SCREW,BRAKE DRUM COVER

92172-S160

$1.42

92172B

SCREW,RADIATOR CAP

92172-S195

$2.31

92191

TUBE,M.R.ORANGE

92191-S088-500

$22.22

92200

WASHER

92200-S078

$1.87

92200A

WASHER,6.5X14X1.6

92200-S184

$1.87

92210

NUT

92210-S013

$3.68
