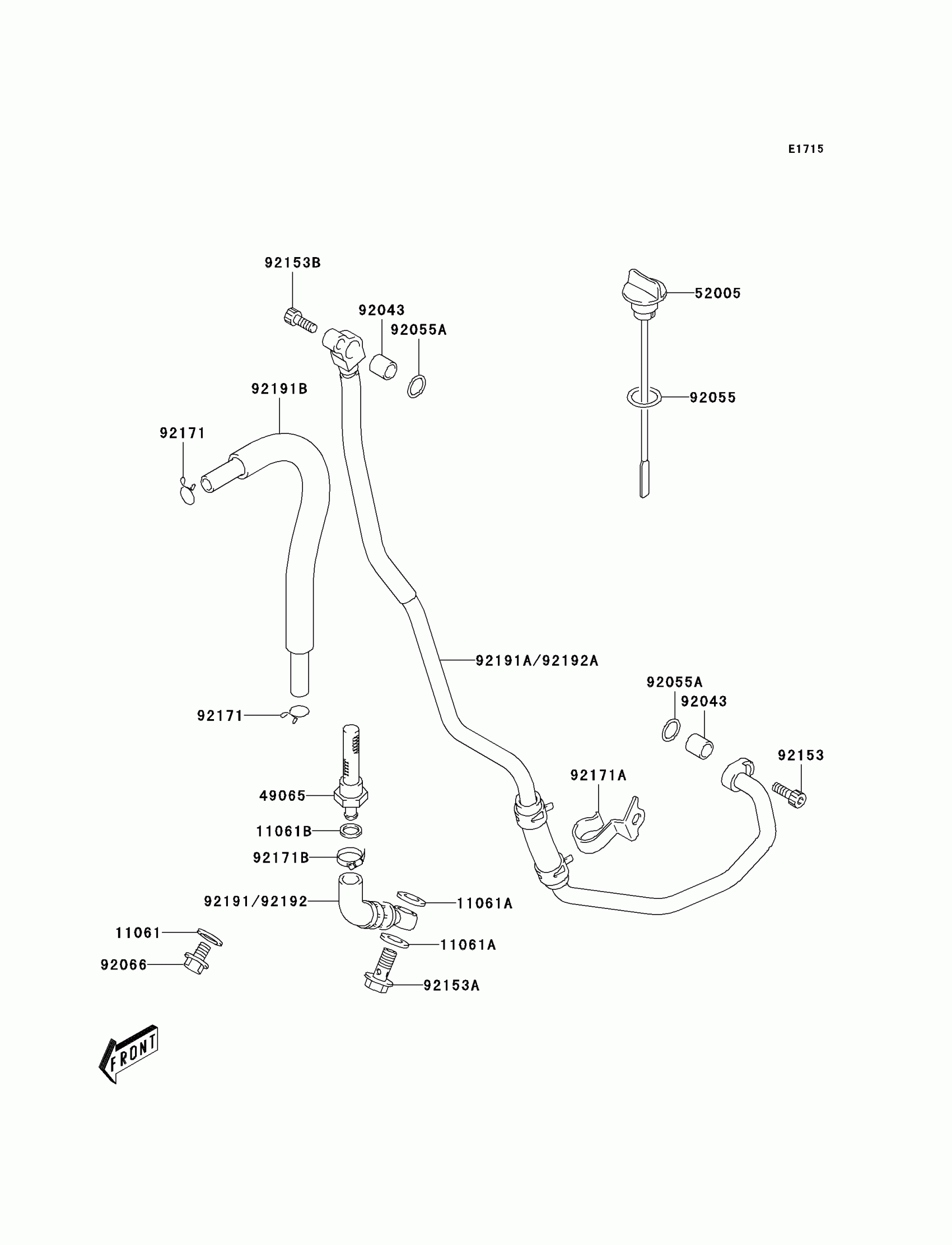

Kawasaki KLX400SR (Canada Only) Oil Hose Diagram

Description

Price

11061

GASKET,10X14X3.6

11061-S021

$1.73

11061A

GASKET,14X20X1.5

11061-S065

$2.08

11061B

GASKET,STRAINER

11061-S088

$3.83

49065

FILTER-OIL

49065-S005

$50.71

52005

GAUGE,OIL LEVEL

52005-S007

$12.10

92043

PIN,CRANKCASE

92043-S024

$1.57

92055

RING-O,D=3.1

92055-S006

$2.07

92055A

RING-O,OIL HOSE

92055-S054

$3.71

92066

PLUG,OIL DRAIN

92066-S036

$1.77

92153

BOLT

92153-S168

Unavailable

92153A

BOLT,OIL HOSE,14X27

92153-S289

$10.76

92153B

BOLT

92153-S337

$1.97

92171

CLAMP

92171-S085

$1.64

92171A

CLAMP

92171-S107

$6.20

92171B

CLAMP,OIL HOSE

92171-S115

$6.68

92191B

TUBE,OIL TANK OVER FLOW

92191-S073

$20.51

92192

TUBE,OIL TANK,RH

92192-S008

$67.80

92192A

TUBE,OIL TANK,LH

92192-S009

$130.46
