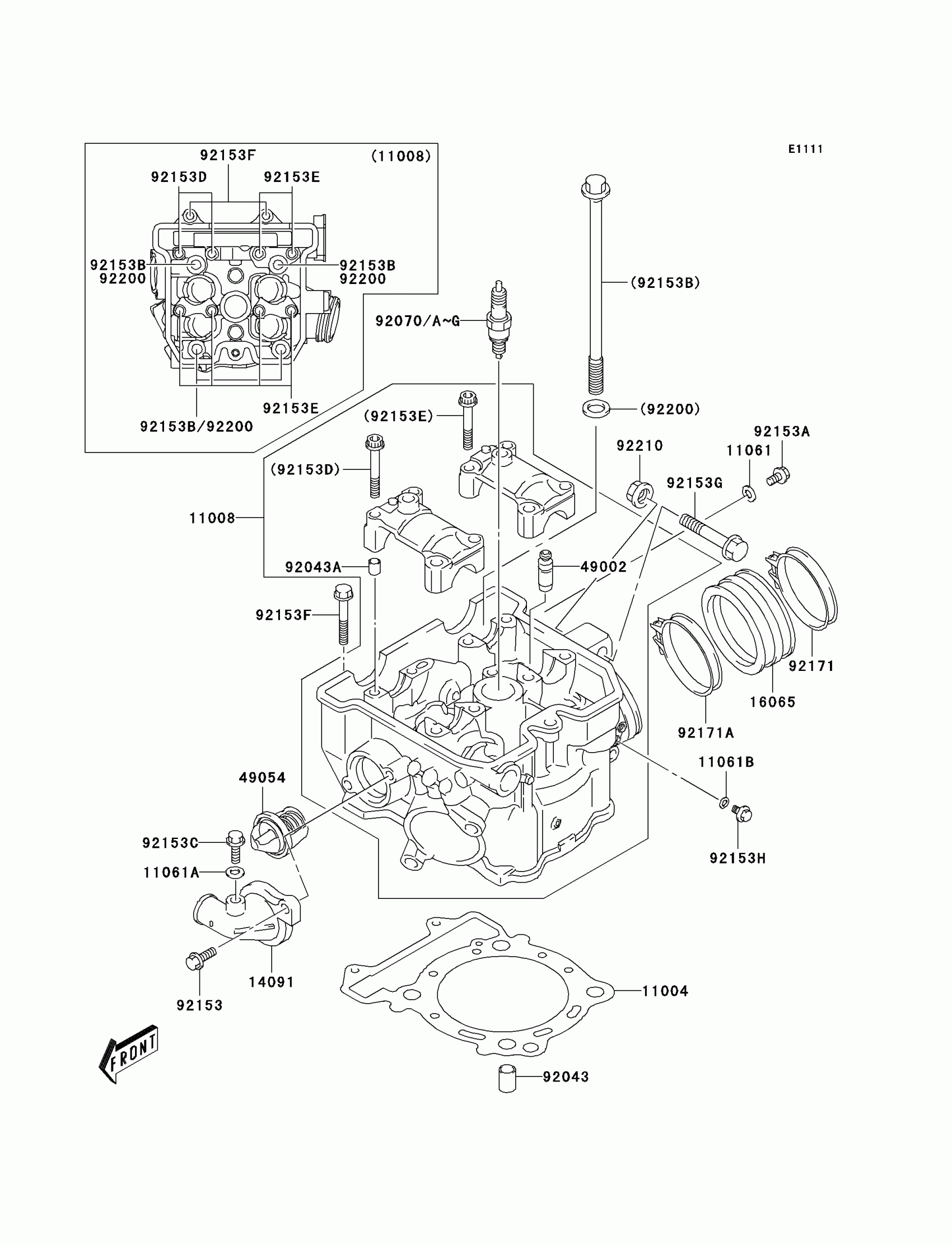

Kawasaki KLX400SR (Canada Only) Cylinder Head Diagram

#

Description
Price

11004

GASKET-HEAD

11004-S006

$36.07

11008

HEAD-COMP-CYLINDER

11008-S005

$770.26

11061

GASKET,5.8X13X1.2

11061-S001

$2.08

11061A

GASKET,6.4X11.5X0.8

11061-S002

$3.76

11061B

GASKET,8.2X14X1

11061-S020

$1.47

14091

COVER,THERMOSTAT

14091-S102

$36.18

16065

HOLDER-CARBURETOR

16065-S009

$20.86

49002

GUIDE-VALVE

49002-S003

$14.50

49054

THERMOSTAT,WATER

49054-S005

$49.72

92043

PIN

92043-S003

$1.87

92043A

PIN,6.2X8X11

92043-S004

$1.57

92070

PLUG-SPARK,CR8E(NGK)

92070-S001

$6.18

92070A

PLUG-SPARK,U24ESR-N(ND)

92070-S002

Unavailable

92070B

PLUG-SPARK,CR9E(NGK)

92070-S003

$5.44

92070C

PLUG-SPARK,U27ESR-N(ND)

92070-S004

$6.84

92070D

PLUG-SPARK,U22ESR-N(ND)

92070-S005

$4.26

92070E

PLUG-SPARK,CR7E(NGK)

92070-S006

$6.18

92070F

PLUG-SPARK,CR10E(NGK)

92070-S024

Unavailable

92070G

PLUG-SPARK,U31ESR(ND)

92070-S025

Unavailable

92153

BOLT

92153-S001

Unavailable

92153A

BOLT

92153-S010

$1.64

92153B

BOLT,10X175

92153-S036

$16.83

92153C

BOLT,AIR VENT

92153-S055

$5.10

92153D

BOLT

92153-S214

$1.69

92153E

BOLT

92153-S253

$1.90

92153F

BOLT,6X39

92153-S263

$2.39

92153G

BOLT,10X50

92153-S332

$4.97

92153H

BOLT,8X9.5

92153-S333

$2.81

92171

CLAMP

92171-S030

$5.75

92171A

CLAMP

92171-S090

Unavailable

92200

WASHER,10.5X19X2.0

92200-S009

$1.36

92210

NUT

92210-S015

$5.05
