2004 Kawasaki KLX400SR (Canada Only) Cylinder Diagram

← All diagrams

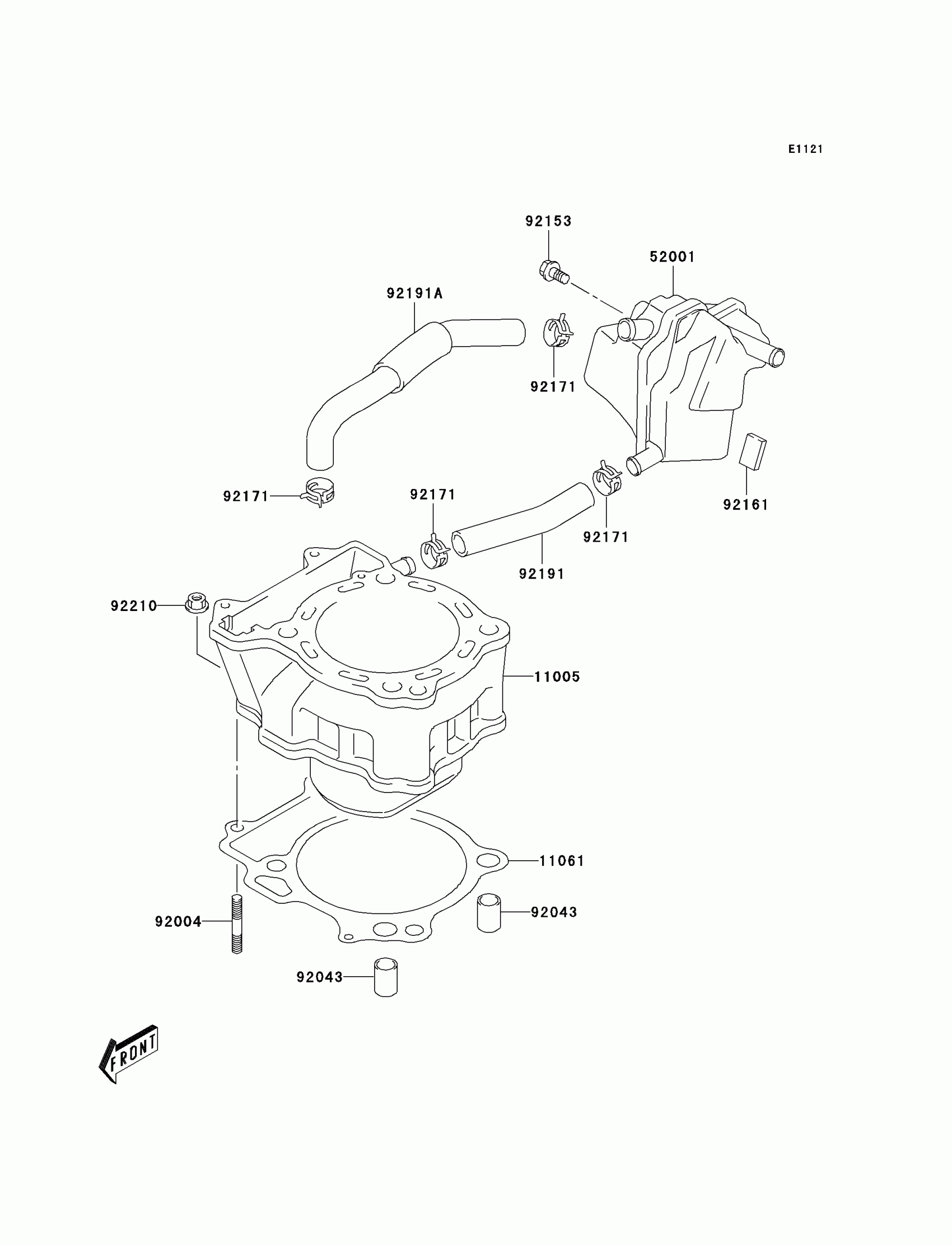

Find the part on the Cylinder diagram for your 2004 Kawasaki KLX400SR (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KLX400SR (Canada Only) Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-S007

1
Out of stock

11061

GASKET,CYLINDER

11061-S070

1
Out of stock

52001

TANK-OIL

52001-S008

1
Out of stock

92004

STUD

92004-S001

1
Out of stock

92043

PIN

92043-S003

1
Out of stock

92153

BOLT

92153-S143

1
Out of stock

92161

DAMPER,170X95X3.0

92161-S014

1
Out of stock

92171

CLAMP,BREATHER HOSE

92171-S087

1
Out of stock

92191

TUBE,BREATHER

92191-S067

1
Out of stock

92191A

TUBE,BREATHER

92191-S068

1
Out of stock

92210

NUT

92210-S004

1
Out of stock
