2004 Kawasaki KLX400SR (Canada Only) Crankcase Diagram

← All diagrams

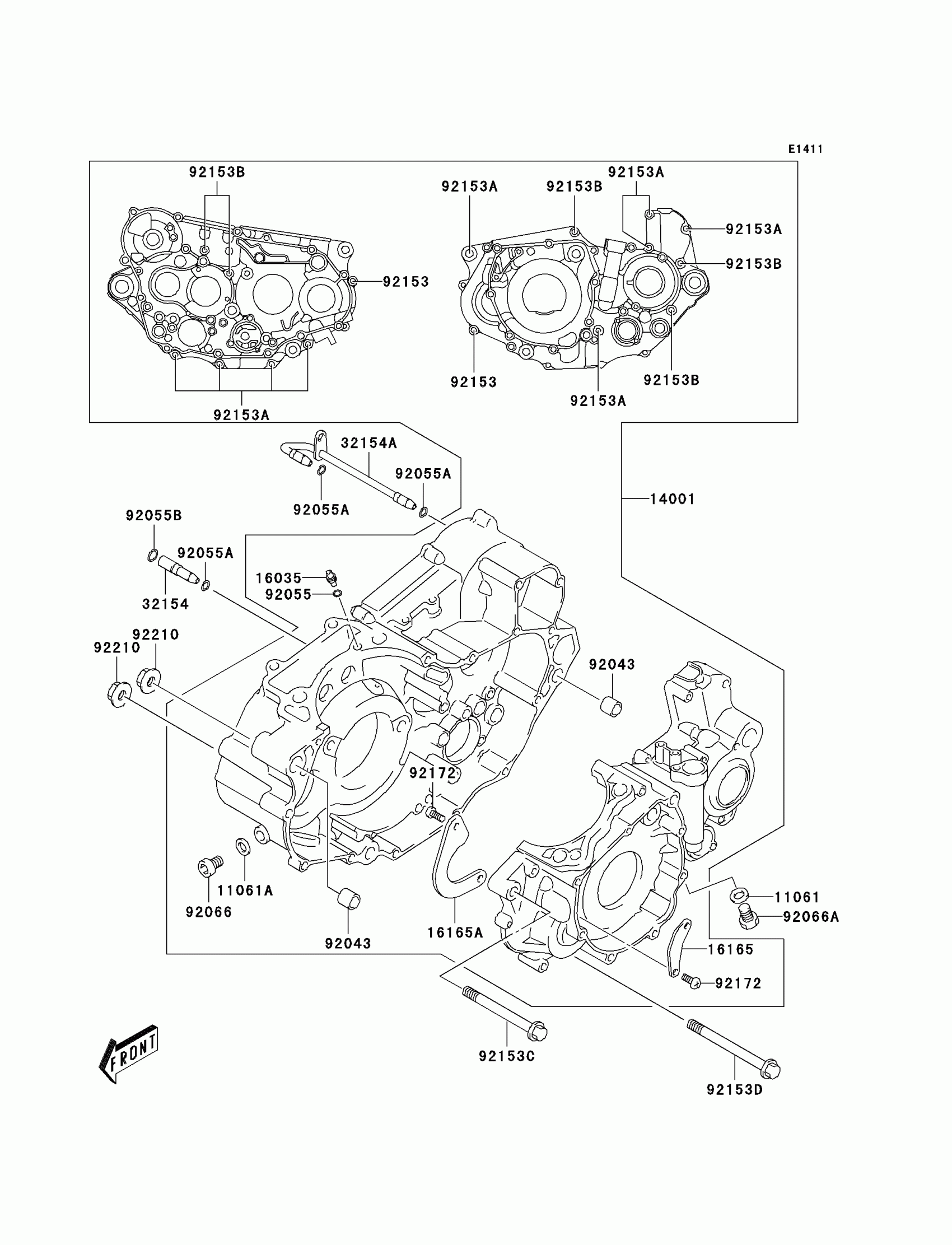

Find the part on the Crankcase diagram for your 2004 Kawasaki KLX400SR (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KLX400SR (Canada Only) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,12X16X2

11061-S005

1

$1.76

In stock

11061A

GASKET,10X14X3.6

11061-S021

1

$2.00

In stock

14001

SET-CRANKCASE

14001-S008

1
Out of stock

16035

JET-AIR

16035-S004

1

$13.37

In stock

16165

1

$2.68

In stock

16165A

1

$4.24

In stock

32154

PIPE

32154-S005

1
Out of stock

32154A

PIPE,OIL

32154-S007

1

$69.43

In stock

92043

PIN

92043-S003

1

$2.17

In stock

92055

RING-O,ID:4.0)

92055-S002

1

$2.00

In stock

92055A

RING-O,ID:4.8

92055-S003

1

$2.08

In stock

92055B

RING-O,6.8X1.9

92055-S053

1

$1.49

In stock

92066

PLUG

92066-S009

1

$4.44

In stock

92066A

PLUG,OIL DRAIN

92066-S032

1

$4.00

In stock

92153

BOLT

92153-S006

1
Out of stock

92153A

BOLT

92153-S128

1

$1.98

In stock

92153B

BOLT

92153-S247

1

$2.20

In stock

92153C

BOLT,10X100

92153-S269

1

$7.88

In stock

92153D

BOLT,10X115

92153-S334

1

$7.88

In stock

92172

SCREW,6X12

92172-S033

1

$2.14

In stock

92210

NUT

92210-S015

1
Out of stock
