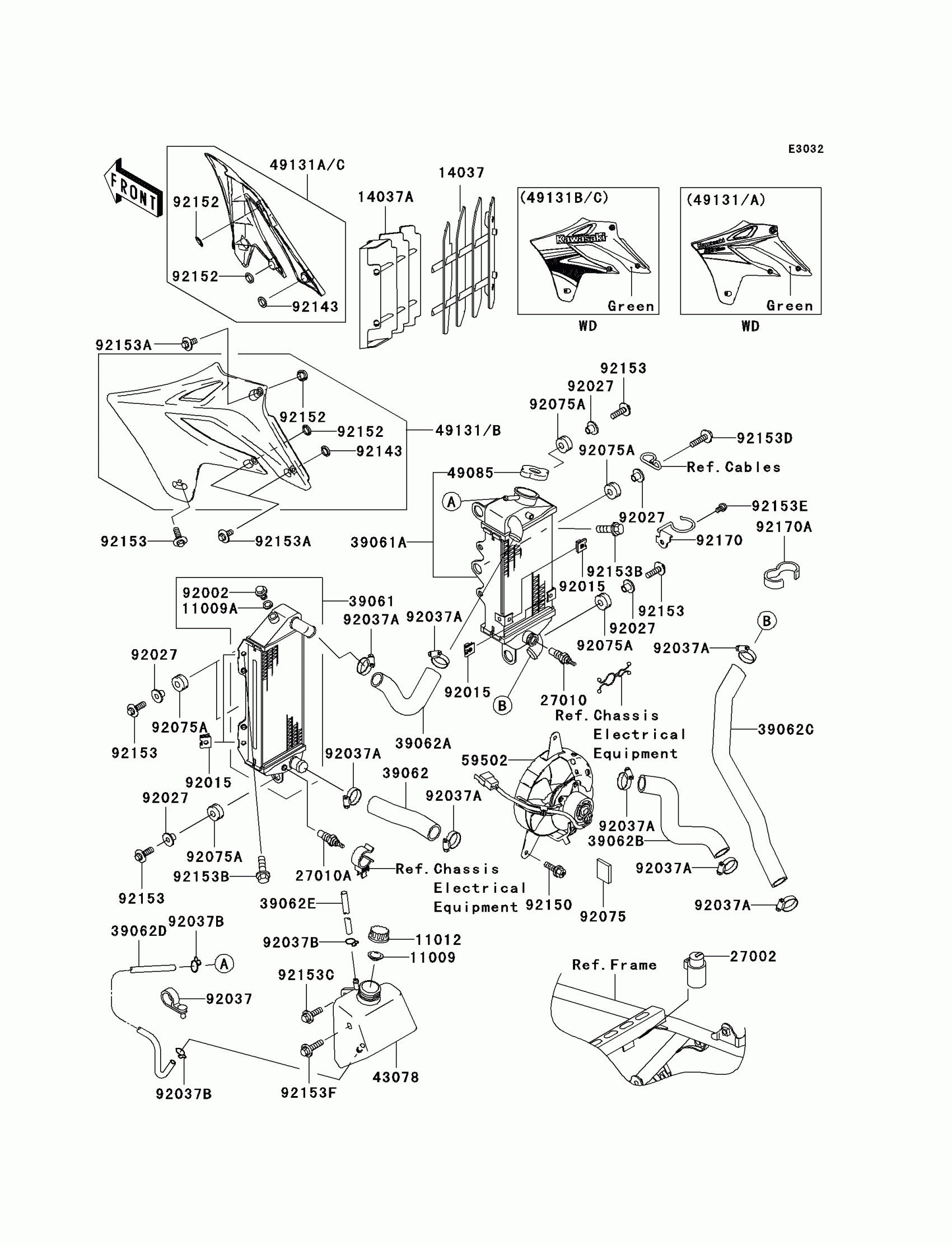

Find the part on the Radiator diagram for your 2007 Kawasaki KLX250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki KLX250S Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11009A

GASKET,DRAIN BOLT

11009-1152

1

$7.44

In stock

11012

CAP

11012-1084

1

$1.31

In stock

14037

SCREEN,RH,WHITE

14037-0047-RZ

1

$26.15

In stock

14037A

SCREEN,WHITE

14037-1099-RZ

1

$22.97

In stock

27002

RELAY-ASSY

27002-1051

1

$49.55

In stock

27010

SWITCH,FAN

27010-1180

1

$136.95

In stock

27010A

SWITCH,WARNING

27010-1199

1

$141.13

In stock

39061

RADIATOR-ASSY,LH

39061-1193

1

$718.82

In stock

39061A

RADIATOR-ASSY,RH

39061-1303

1

$1,117.35

In stock

39062

HOSE-COOLING,HEAD-RADIATOR

39062-1535

1
Out of stock

39062A

1

$17.08

In stock

39062B

1

$29.37

In stock

39062C

1

$43.44

In stock

39062D

1

$14.44

In stock

39062E

1

$11.20

In stock

43078

RESERVOIR

43078-0001

1

$29.97

In stock

49085

CAP-ASSY-PRESSURE

49085-1066

1

$33.98

In stock

49131B

SHROUD-ENGINE,LH,L.GREEN

49131-5097-290

1

$221.70

In stock

49131C

SHROUD-ENGINE,RH,L.GREEN

49131-5098-290

1

$207.20

In stock

59502

FAN-ASSY

59502-1139

1

$588.92

In stock

92002

BOLT,RADIATOR DRAIN

92002-1682

1
Out of stock

92015

NUT

92015-1487

1

$3.80

In stock

92027

COLLAR

92027-194

1

$4.37

In stock

92037

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92037A

CLAMP,COOLING HOSE

92037-1589

1

$14.60

In stock

92037B

CLAMP

92037-1712

1

$3.97

In stock

92075

DAMPER

92075-1982

1

$3.92

In stock

92075A

1

$3.72

In stock

92143

COLLAR

92143-1196

1

$3.72

In stock

92150

BOLT,6X12

92150-1186

1

$2.92

In stock

92152

COLLAR

92152-1235

1

$3.29

In stock

92153

BOLT,6X20

92153-0502

1
Out of stock

92153A

BOLT,6X12

92153-0503

1
Out of stock

92153B

BOLT,FLANGED,6X14

92153-0936

1
Out of stock

92153C

BOLT,FLANGED,6X22

92153-0950

1
Out of stock

92153D

BOLT,FLANGED WP,6X25

92153-1008

1
Out of stock

92153E

BOLT,FLANGED,6X10

92153-1354

1
Out of stock

92153F

BOLT,FLANGED,6X30

92153-1457

1
Out of stock

92170

CLAMP

92170-1357

1

$14.29

In stock

92170A

CLAMP

92170-1419

1

$4.85

In stock
