2007 Kawasaki KLX250S Crankcase Diagram

← All diagrams

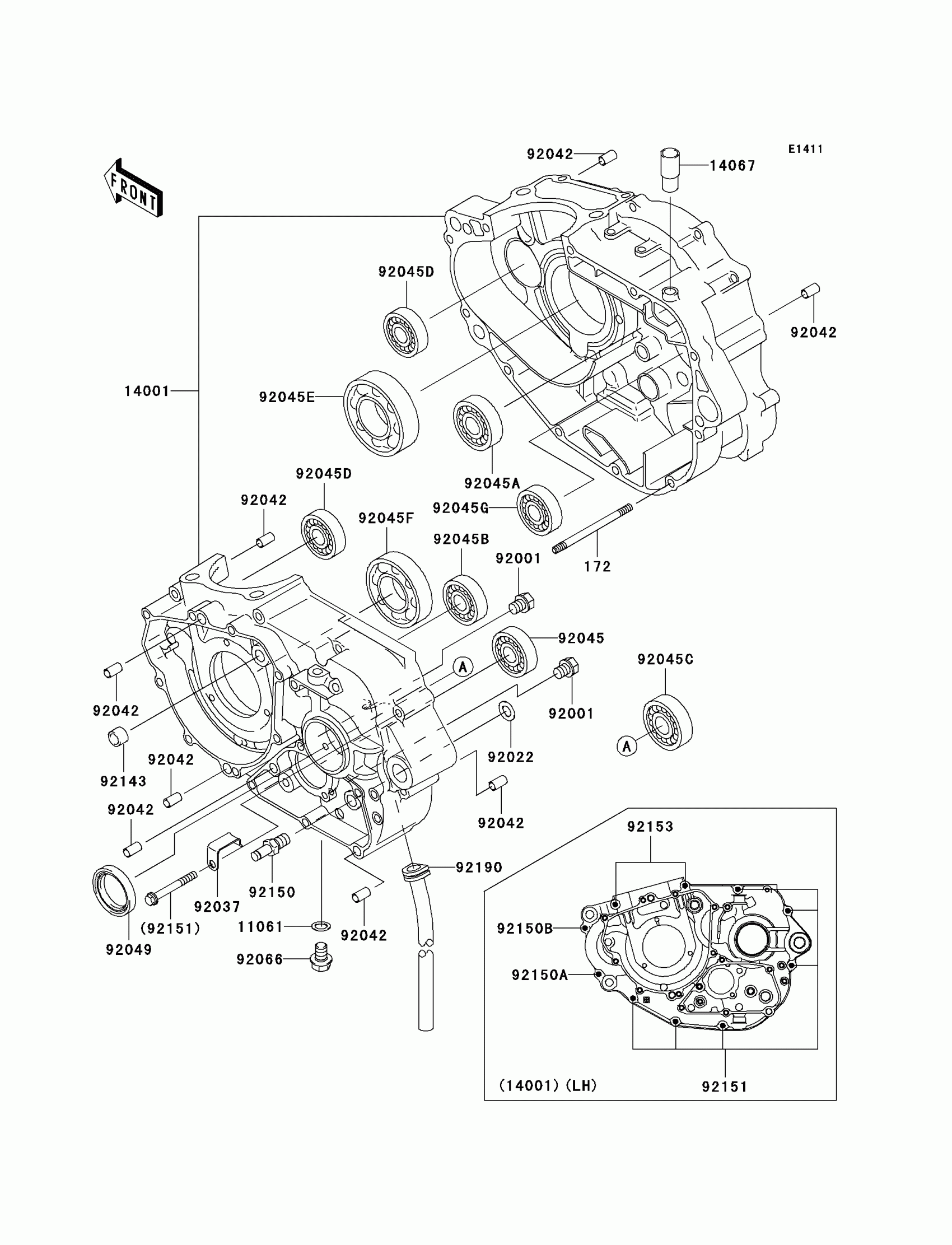

Find the part on the Crankcase diagram for your 2007 Kawasaki KLX250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki KLX250S Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

172

BOLT-STUD,6X80

172G0680

1
Out of stock

11061

GASKET,10.5X16X2

11061-0222

1

$4.44

In stock

14001

SET-CRANKCASE

14001-5363

1
Out of stock

14067

FITTING,BREATHER

14067-006

1

$19.78

In stock

92001

BOLT,W/WASHER,6X14

92001-1829

1

$3.53

In stock

92022

1

$4.17

In stock

92037

CLAMP,HARNESS

92037-1318

1

$7.25

In stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92045

BEARING-BALL,#6905

92045-036

1

$24.62

In stock

92045A

1

$32.85

In stock

92045B

1

$23.73

In stock

92045C

1

$35.37

In stock

92045D

1

$17.61

In stock

92045E

1

$40.89

In stock

92045F

1

$39.13

In stock

92045G

1

$29.10

In stock

92049

SEAL-OIL,TC32457

92049-1577

1
Out of stock

92066

PLUG,DRAIN

92066-0070

1

$2.92

In stock

92143

COLLAR

92143-1263

1

$4.32

In stock

92150

BOLT,RETURN SPRING

92150-1803

1

$9.22

In stock

92150A

BOLT,SOCKET,6X50

92150-1874

1

$4.97

In stock

92150B

BOLT,SOCKET,6X35

92150-1875

1

$4.66

In stock

92151

BOLT,6X50

92151-1234

1

$2.03

In stock

92153

BOLT,FLANGED,6X70

92153-0018

1
Out of stock

92190

TUBE

92190-1493

1

$11.19

In stock
← Camshaft /Tensioner Crankshaft →
