2007 Kawasaki KLX250S Engine Cover Diagram

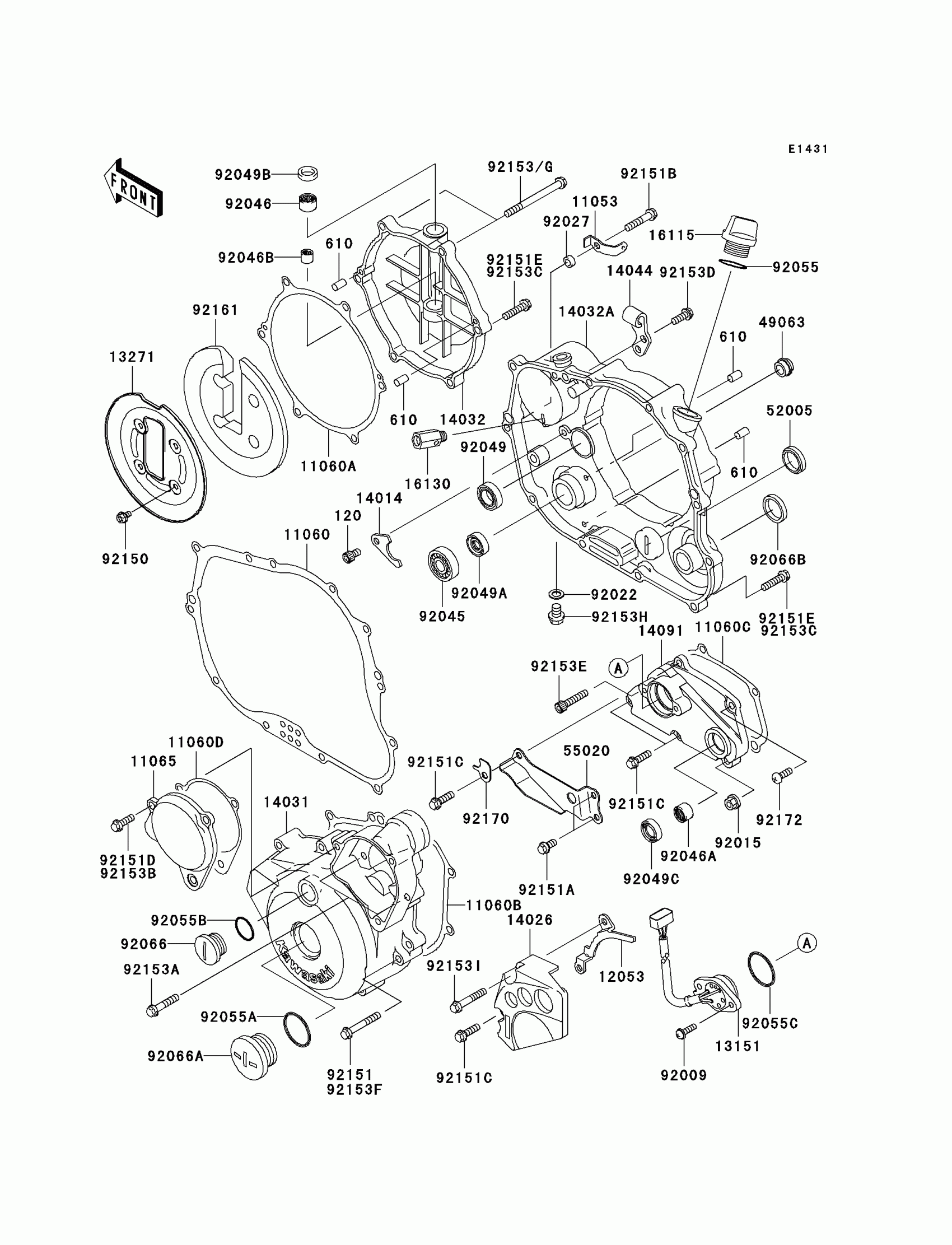

Find the part on the Engine Cover diagram for your 2007 Kawasaki KLX250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
13151
SWITCH-COMP
13151-1096
14014
PLATE-POSITION
14014-1062
92009
SCREW,5X16
92009-1571
92015
NUT,FLANGED,6MM
92015-1193
92046
BEARING-NEEDLE,HK1210
92046-1010
92046A
BEARING-NEEDLE,HK1312
92046-1148
92046B
BEARING-NEEDLE
92046-1230
92049
SEAL-OIL
92049-1191
92049A
SEAL-OIL,SC 12X22X5
92049-1228
92049B
SEAL-OIL,AG0353-F0
92049-1262
92049C
SEAL-OIL
92049-1559
120
BOLT-SOCKET,6X10
120P0610
92151A
BOLT,6X12
92151-1133
92151C
BOLT,FLANGED-SMALL,6X20
92151-1252
92153
BOLT,FLANGED,6X70
92153-0018
92153D
BOLT,6X16
92153-0695
92153E
BOLT,6X30
92153-0844
92153H
BOLT,FLANGED,8X10
92153-1342
92153I
BOLT,FLANGED,6X35
92153-1351
