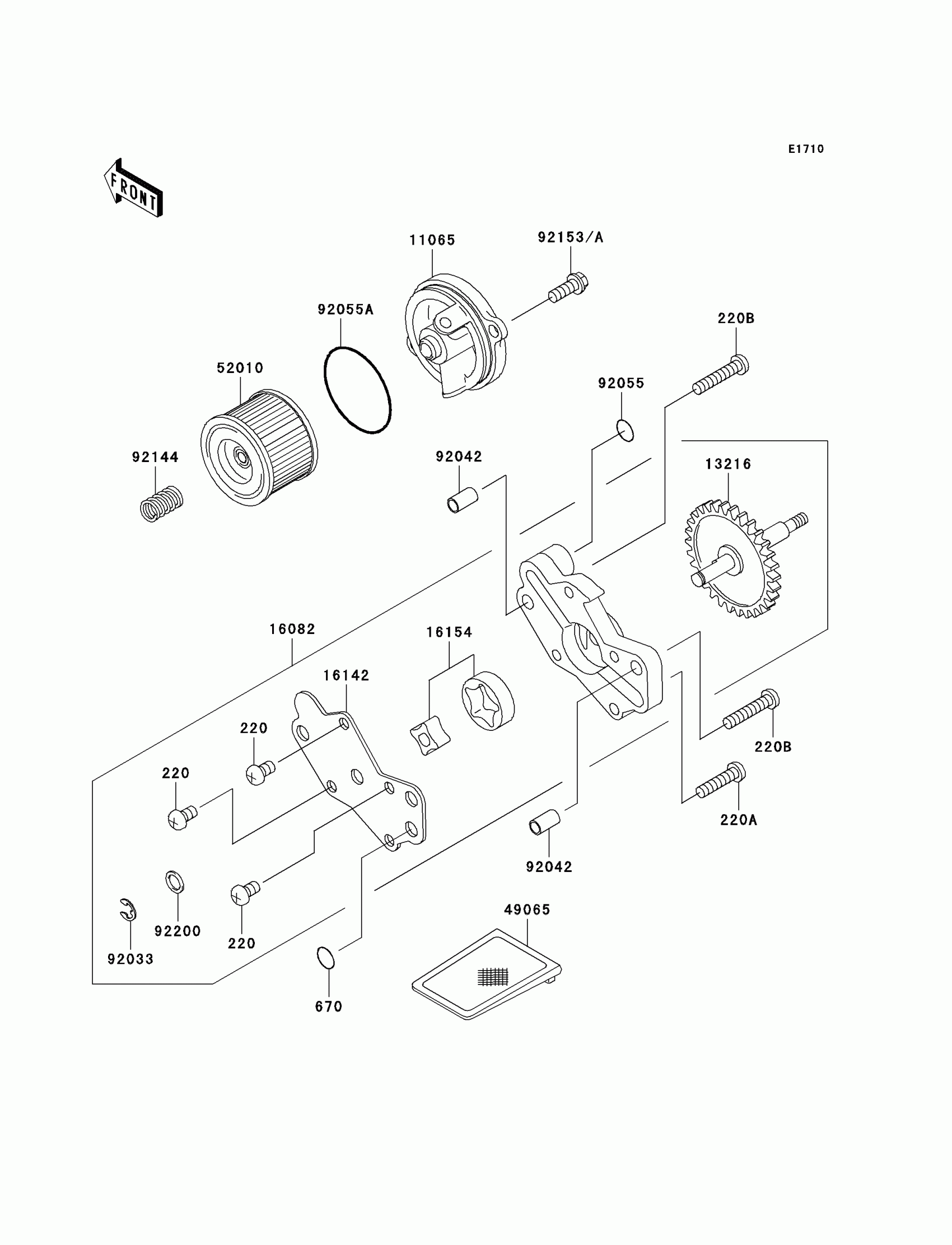

Kawasaki KLX250S Oil Pump Diagram

#

Description
Price

220

SCREW PAN HEAD 6X10

220B0610

Unavailable

220A

SCREW PAN HEAD 6X25

220B0625

Unavailable

220B

SCREW PAN HEAD 6X30

220B0630

Unavailable

670

O RING,10MM

670D2010

$1.41

11065

CAP,OIL FILTER

11065-0102

$71.79

13216

GEAR-COMP,OIL PUMP

13216-1193

$120.53

16082

PUMP-ASSY-OIL

16082-1163

Unavailable

16142

COVER-PUMP

16142-1123

$44.51

16154

ROTOR-PUMP

16154-1130

$36.37

49065

FILTER-OIL

49065-1058

$9.70

52010

ELEMENT-OIL FILTER

52010-1053

$6.94

92033

RING-SNAP,6MM

92033-1327

$0.65

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92055

RING-O,OD=13

92055-074

$6.55

92055A

RING-O,52.6X2.4

92055-1577

$3.57

92144

SPRING

92144-1761

$3.54

92153

BOLT,6X16

92153-0695

$2.14

92200

WASHER,8.5X12X1.0

92200-1591

$3.92
