2007 Kawasaki KLX250S Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2007 Kawasaki KLX250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

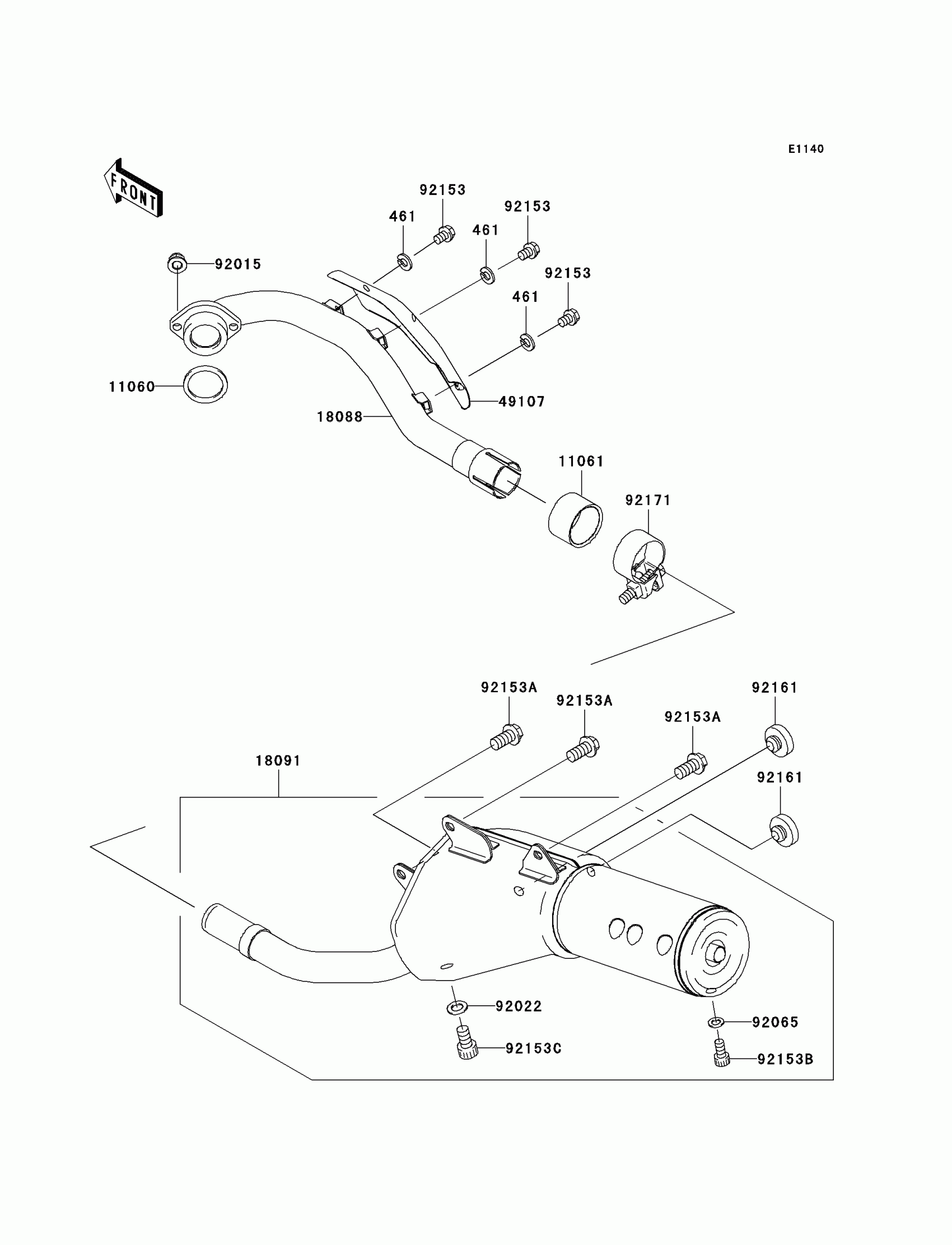

2007 Kawasaki KLX250S Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

461

1

$0.97

In stock

11060

GASKET,EXHAUST PIPE

11060-1203

1

$8.56

In stock

11061

1

$13.05

In stock

18088

PIPE-EXHAUST

18088-0033

1

$168.23

In stock

18091

BODY-COMP-MUFFLER

18091-0238

1

$628.75

In stock

49107

COVER-EXHAUST PIPE

49107-0062

1

$45.14

In stock

92015

NUT,8MM

92015-1402

1

$3.72

In stock

92022

WASHER,8.2X14X1.0

92022-1488

1

$4.34

In stock

92065

GASKET

92065-096

1

$3.69

In stock

92153

BOLT,6X8

92153-0578

1
Out of stock

92153A

BOLT,FLANGED,8X16

92153-1308

1
Out of stock

92153B

BOLT,SOCKET,6X12

92153-1347

1
Out of stock

92153C

BOLT,SOCKET,8X14

92153-1348

1
Out of stock

92161

DAMPER

92161-0336

1

$4.47

In stock

92171

CLAMP

92171-0631

1

$20.40

In stock
