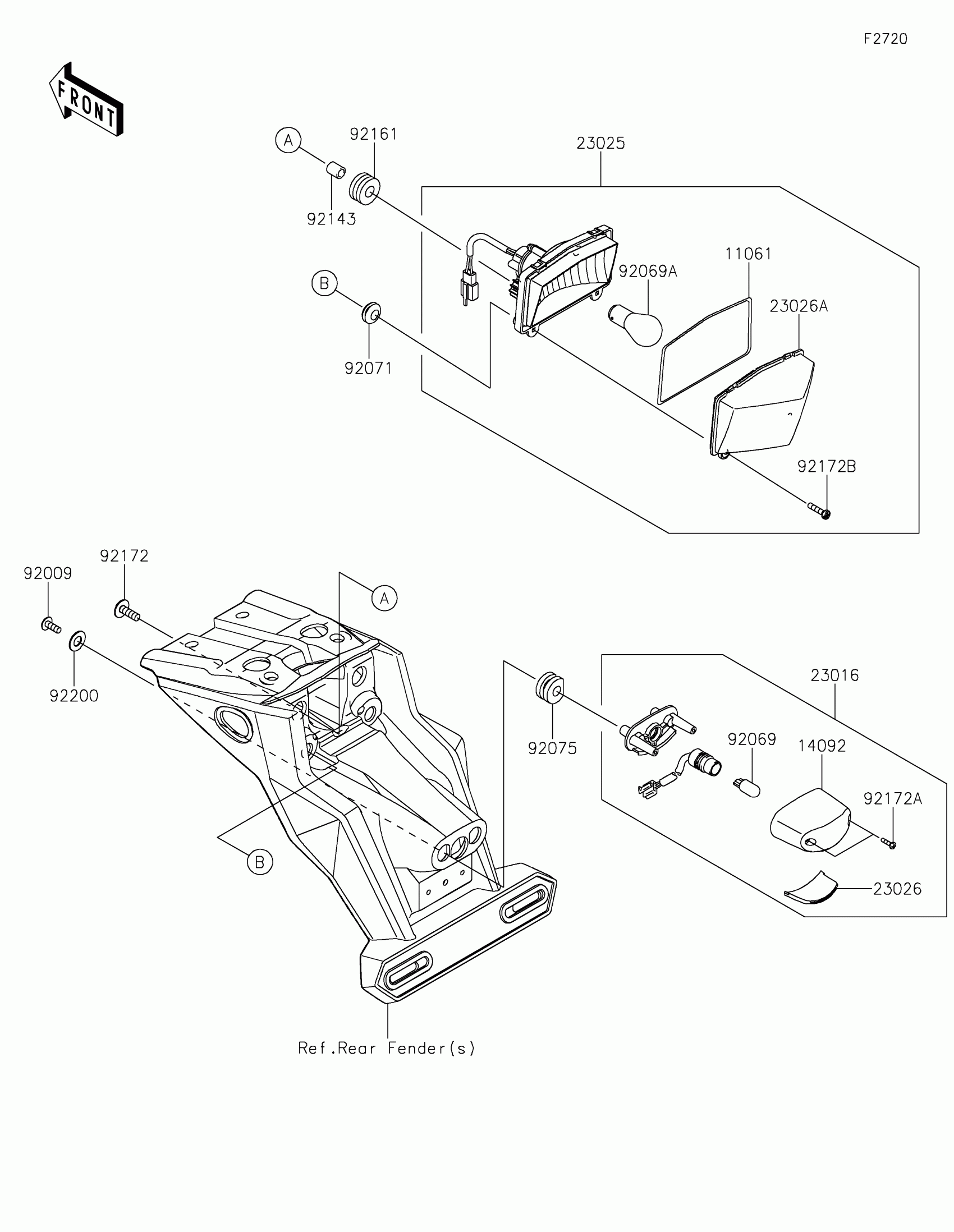

Kawasaki KLX150L (Indonesia Only) Taillight(s) Diagram

Description

Price

11061

GASKET,TAIL LAMP LENS

11061-0393

$9.34

14092

COVER,LICENSE LAMP

14092-0001

$20.17

23016

LAMP-ASSY,LICENCE

23016-0657

$73.13

23025

LAMP-TAIL

23025-0392

$65.60

23026

LENS,LICENCE LAMP

23026-0035

$29.34

23026A

LENS,TAIL LAMP

23026-0036

$17.75

92009

SCREW,TAPPING,5X14

92009-1197

$2.99

92069

BULB,12V 5W

92069-1016

$4.88

92069A

BULB,12V 21/5W

92069-1084

$5.61

92071

GROMMET

92071-024

$4.14

92075

DAMPER

92075-1870

$4.42

92143

COLLAR,6.8X10X13

92143-1825

$0.78

92161

DAMPER,10X24X12

92161-2112

$3.81

92172

SCREW,6X18

92172-0192

$10.83

92172A

SCREW,TAPPING,2.9X13

92172-0343

$1.32

92172B

SCREW,4.2X19

92172-0411

Unavailable

92200

WASHER,9X18X1

92200-1977

$3.53
