2025 Kawasaki KLX150L (Indonesia Only) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2025 Kawasaki KLX150L (Indonesia Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

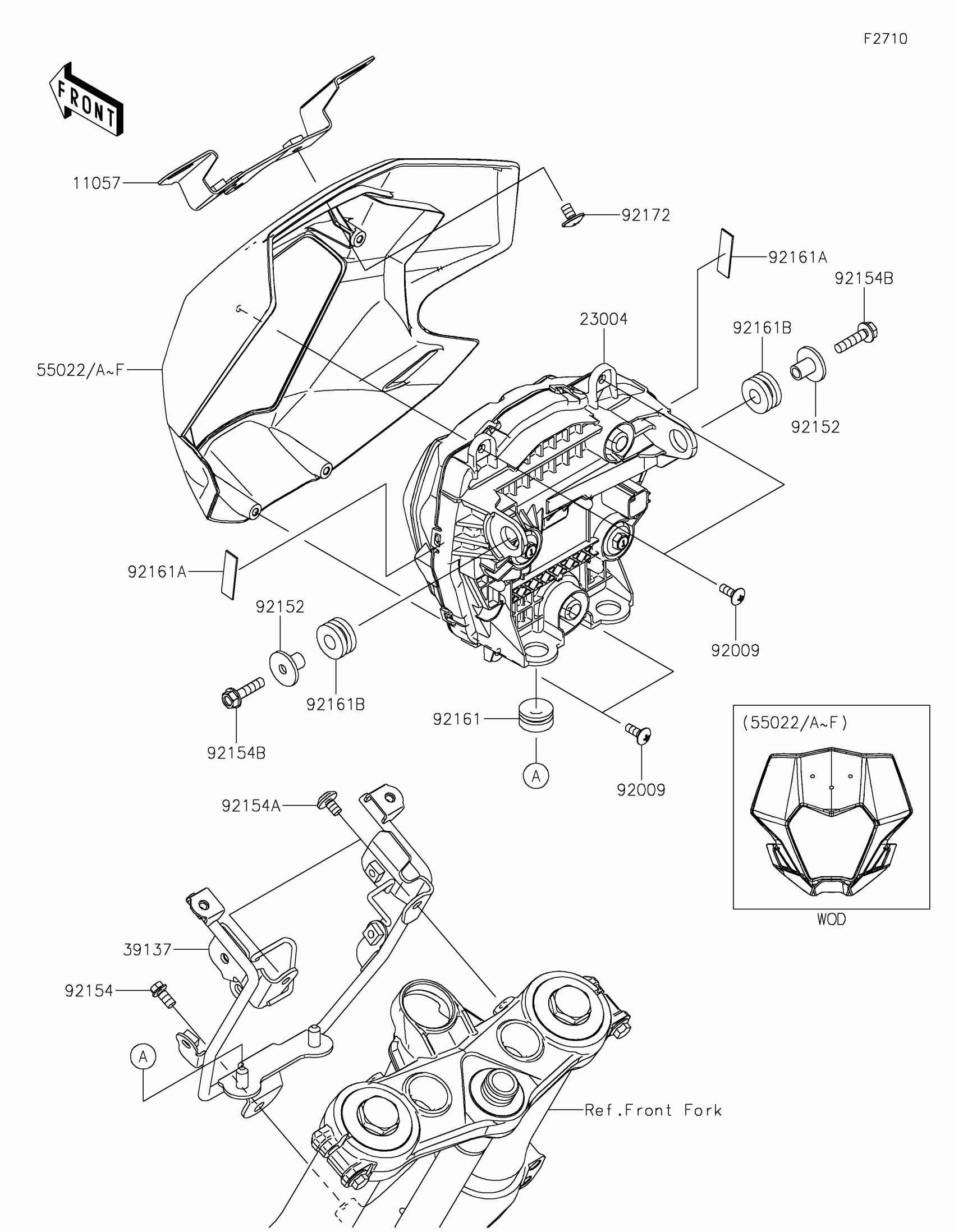

2025 Kawasaki KLX150L (Indonesia Only) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-7718

1
Out of stock

23004

LAMP-HEAD,LED

23004-0431

1
Out of stock

39137

STAY-COMP,HEAD LAMP

39137-0725

1
Out of stock

55022B

COVER-HEAD LAMP,S.YELLOW

55022-0327-33H

1
Out of stock

55022E

COVER-HEAD LAMP,EBONY

55022-0327-68L

1
Out of stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92152

COLLAR

92152-2882

1
Out of stock

92154

BOLT,FLANGED,6X12

92154-3753

1
Out of stock

92154A

BOLT,SOCKET,6X10

92154-4298

1
Out of stock

92154B

BOLT,FLANGED,6X25

92154-4446

1
Out of stock

92161

DAMPER,7.5X22X11

92161-1536

1
Out of stock

92161A

DAMPER,10X35X1

92161-1889

1
Out of stock

92161B

DAMPER,10X24X12

92161-2112

1
Out of stock

92172

SCREW,CROS,6X10

92172-1254

1
Out of stock
