2025 Kawasaki KLX150L (Indonesia Only) Ignition Switch Diagram

← All diagrams

Find the part on the Ignition Switch diagram for your 2025 Kawasaki KLX150L (Indonesia Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

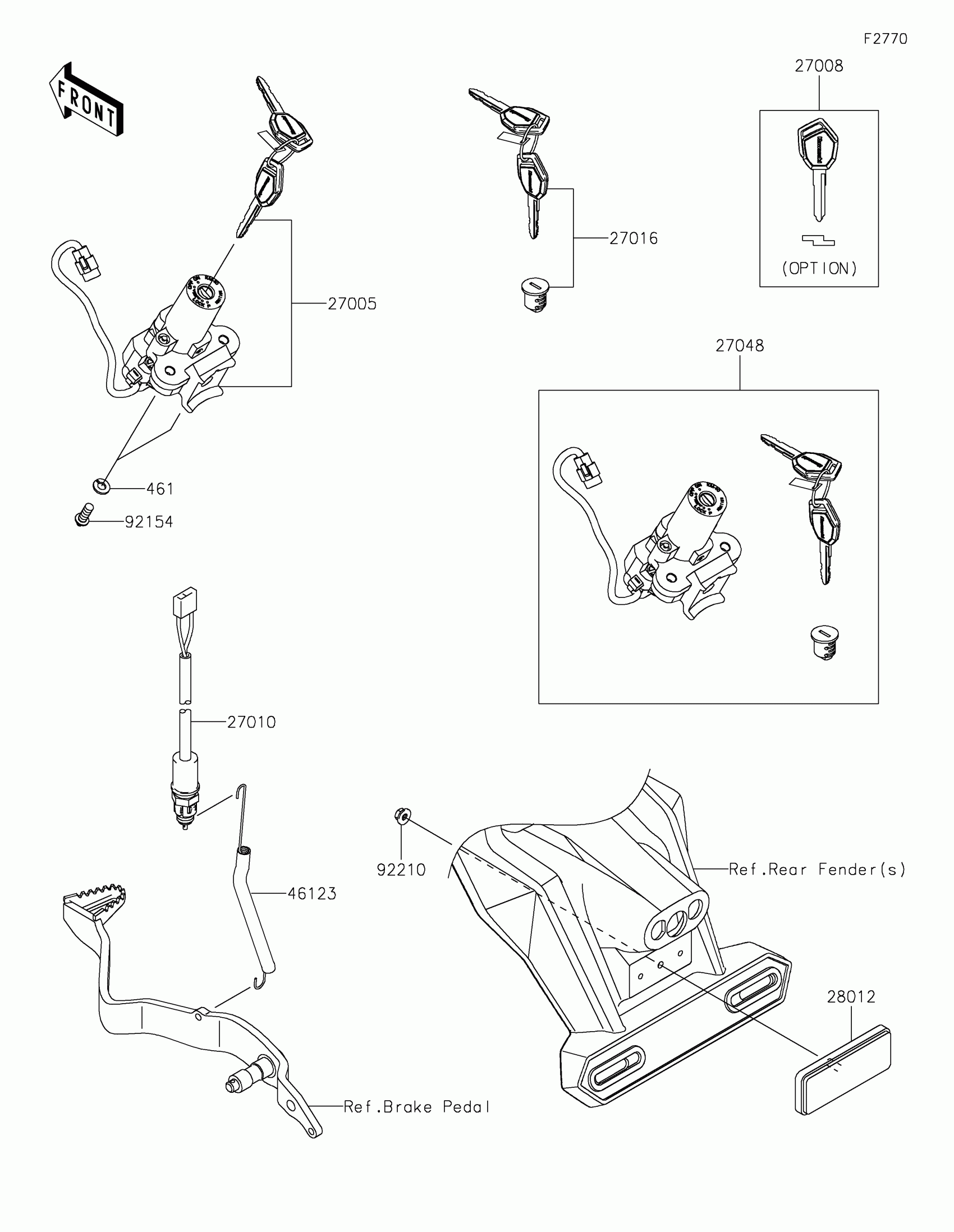

2025 Kawasaki KLX150L (Indonesia Only) Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27005

SWITCH-ASSY-IGNITION

27005-0720

1
Out of stock

27008

KEY-LOCK,BLANK

27008-0650

1
Out of stock

27010

SWITCH,REAR BRAKE

27010-0106

1
Out of stock

27016

LOCK-ASSY,TANK CAP

27016-5414

1
Out of stock

27048

SWITCH-ASSY

27048-5280

1
Out of stock

28012

REFLECTOR-REFLEX,RR,FLAP

28012-0064

1
Out of stock

46123

SPRING-COMP

46123-0007

1
Out of stock

92154

BOLT,TORX,6X16,MEC

92154-4408

1
Out of stock

92210

NUT,5MM

92210-1579

1
Out of stock

461

WASHER-SPRING,6MM

461DA0600

1
Out of stock
