2025 Kawasaki KLX150L (Indonesia Only) Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2025 Kawasaki KLX150L (Indonesia Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

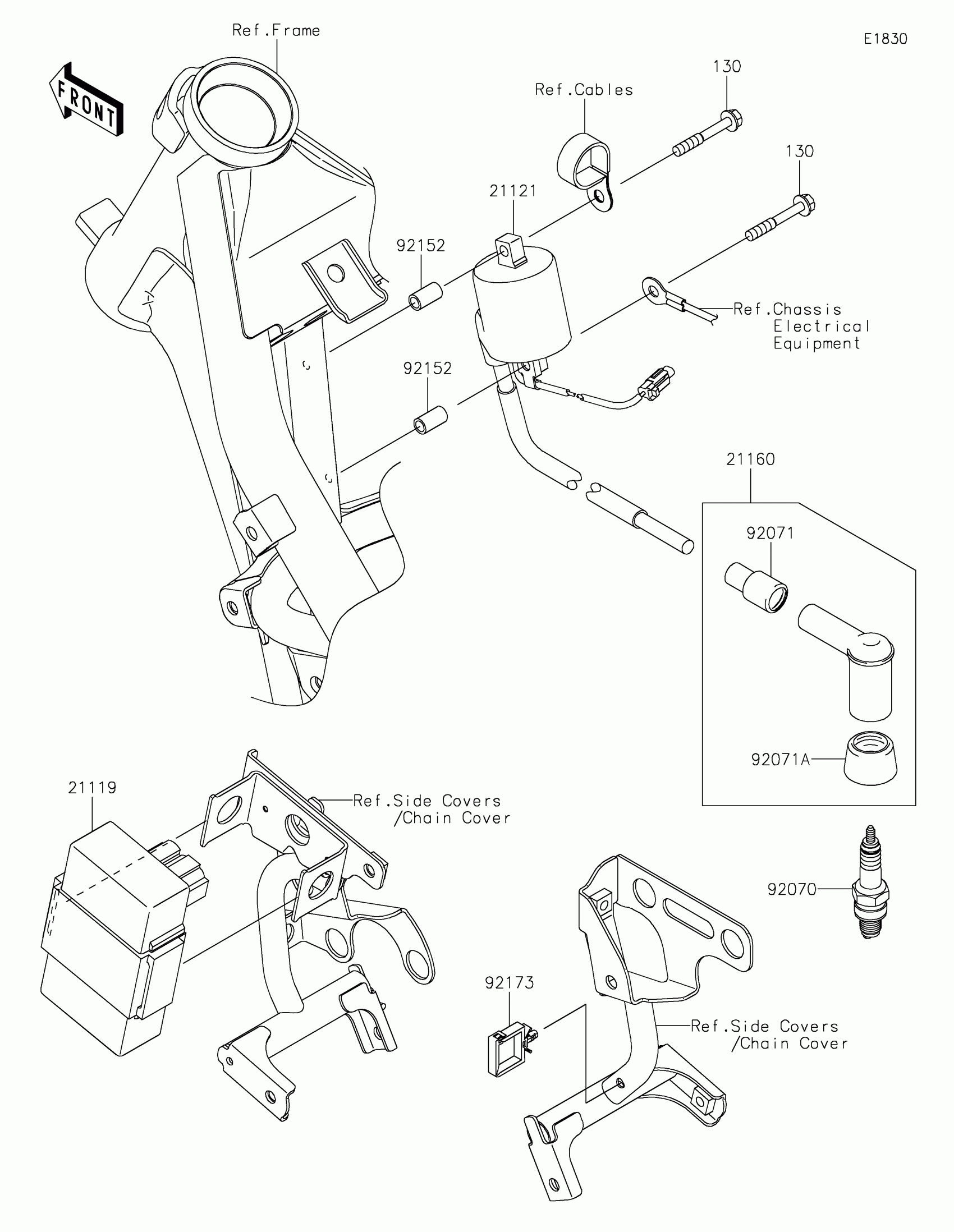

2025 Kawasaki KLX150L (Indonesia Only) Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21119

IGNITER

21119-0601

1
Out of stock

21121

COIL-IGNITION

21121-0036

1
Out of stock

21160

CAP-ASSY-PLUG

21160-0001

1
Out of stock

92070

PLUG-SPARK,CR7HSA

92070-0037

1
Out of stock

92071

GROMMET

92071-0001

1
Out of stock

92071A

GROMMET

92071-0002

1
Out of stock

92152

COLLAR,5.6X8X14.5

92152-2318

1
Out of stock

92173

CLAMP

92173-1513

1
Out of stock

130

BOLT-FLANGED,5X35

130BA0535

1
Out of stock
