2025 Kawasaki KLX150L (Indonesia Only) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2025 Kawasaki KLX150L (Indonesia Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

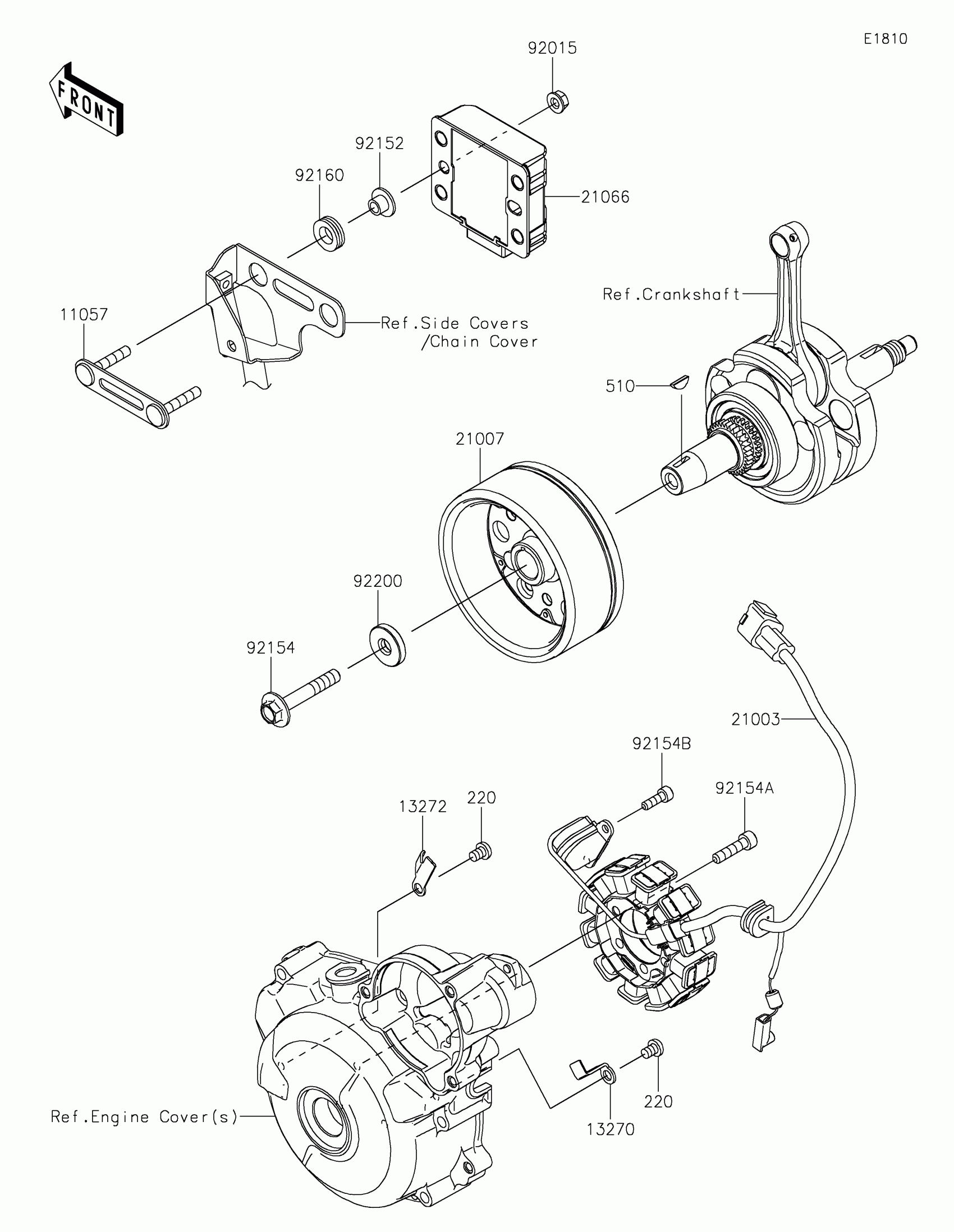

2025 Kawasaki KLX150L (Indonesia Only) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-7855

1

$9.54

In stock

13270

PLATE

13270-1961

1
Out of stock

13272

PLATE

13272-3959

1

$0.90

In stock

21003

STATOR

21003-0213

1

$212.27

In stock

21007

ROTOR

21007-0720

1

$210.06

In stock

21066

REGULATOR-VOLTAGE

21066-0790

1

$280.70

In stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92152

COLLAR

92152-0295

1

$4.47

In stock

92154

BOLT,FLANGED,8X50

92154-1153

1

$1.73

In stock

92154A

BOLT,SOCKET,6X25

92154-2769

1

$2.20

In stock

92154B

BOLT

92154-4468

1

$3.66

In stock

92160

DAMPER

92160-1278

1

$3.49

In stock

92200

WASHER,8.2X26X5

92200-1626

1
Out of stock

220

SCREW-PAN-CROS,6X8

220AA0608

1

$0.63

In stock

510

KEY-WOODRUFF

510A3200

1

$2.17

In stock
