2025 Kawasaki KLX150L (Indonesia Only) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2025 Kawasaki KLX150L (Indonesia Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

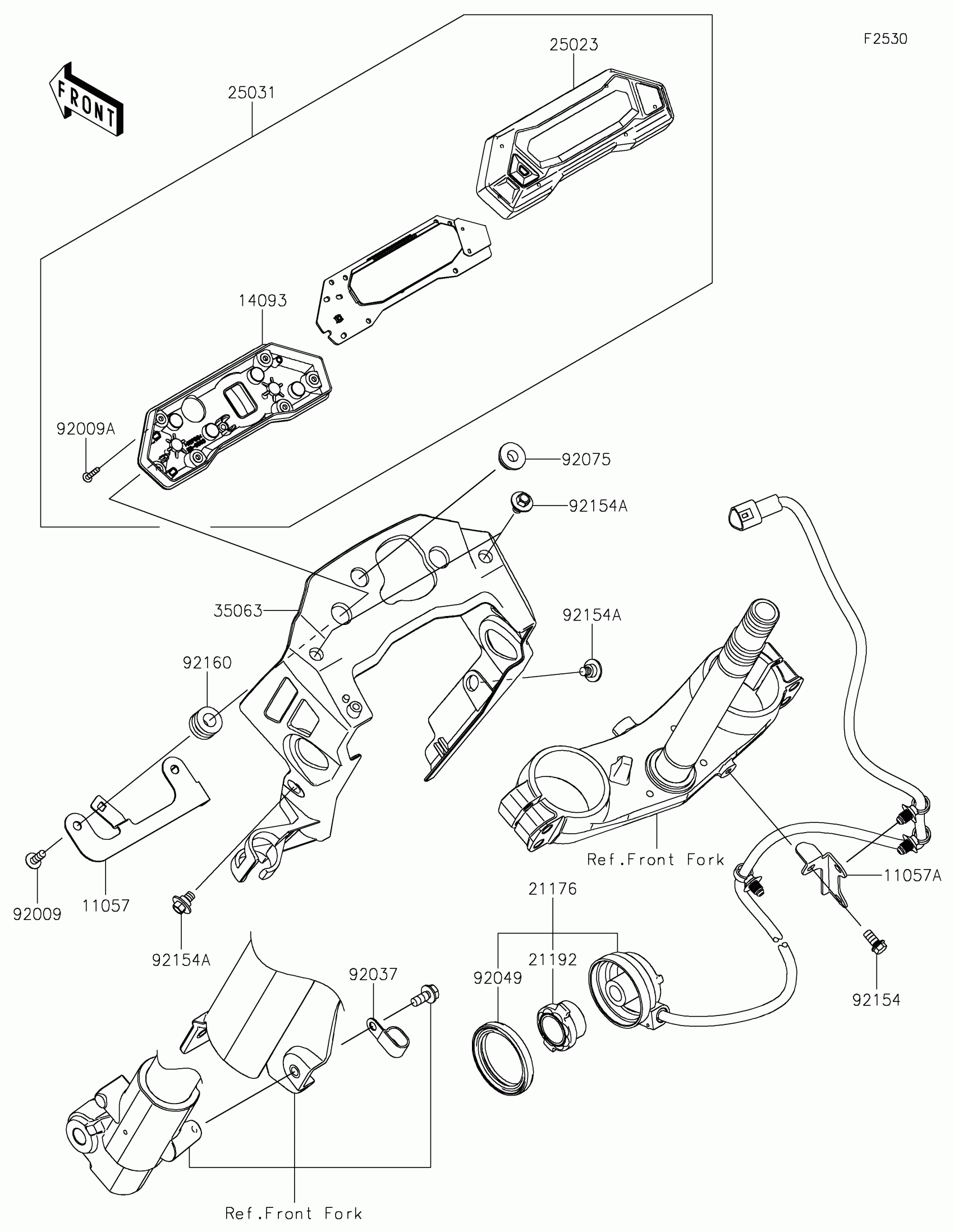

2025 Kawasaki KLX150L (Indonesia Only) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,HARNESS

11057-7708

1
Out of stock

11057A

BRACKET

11057-7709

1
Out of stock

14093

COVER,METER,LWR

14093-1249

1
Out of stock

21176

SENSOR,SPEED

21176-1150

1
Out of stock

21192

MAGNET

21192-0005

1
Out of stock

25023

COVER-METER CASE,UPP

25023-0153

1
Out of stock

25031

METER-ASSY,LCD

25031-1403

1
Out of stock

35063

STAY,METER

35063-1576

1
Out of stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92009A

SCREW,TAPPING,3X16

92009-1391

1
Out of stock

92037

CLAMP

92037-1608

1
Out of stock

92049

SEAL-OIL,42X50X6

92049-0741

1
Out of stock

92075

DAMPER,RADIATOR GUARD

92075-1469

1
Out of stock

92154

BOLT,FLANGED,6X12

92154-2753

1
Out of stock

92154A

BOLT,FLANGED,6X10

92154-4486

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock
