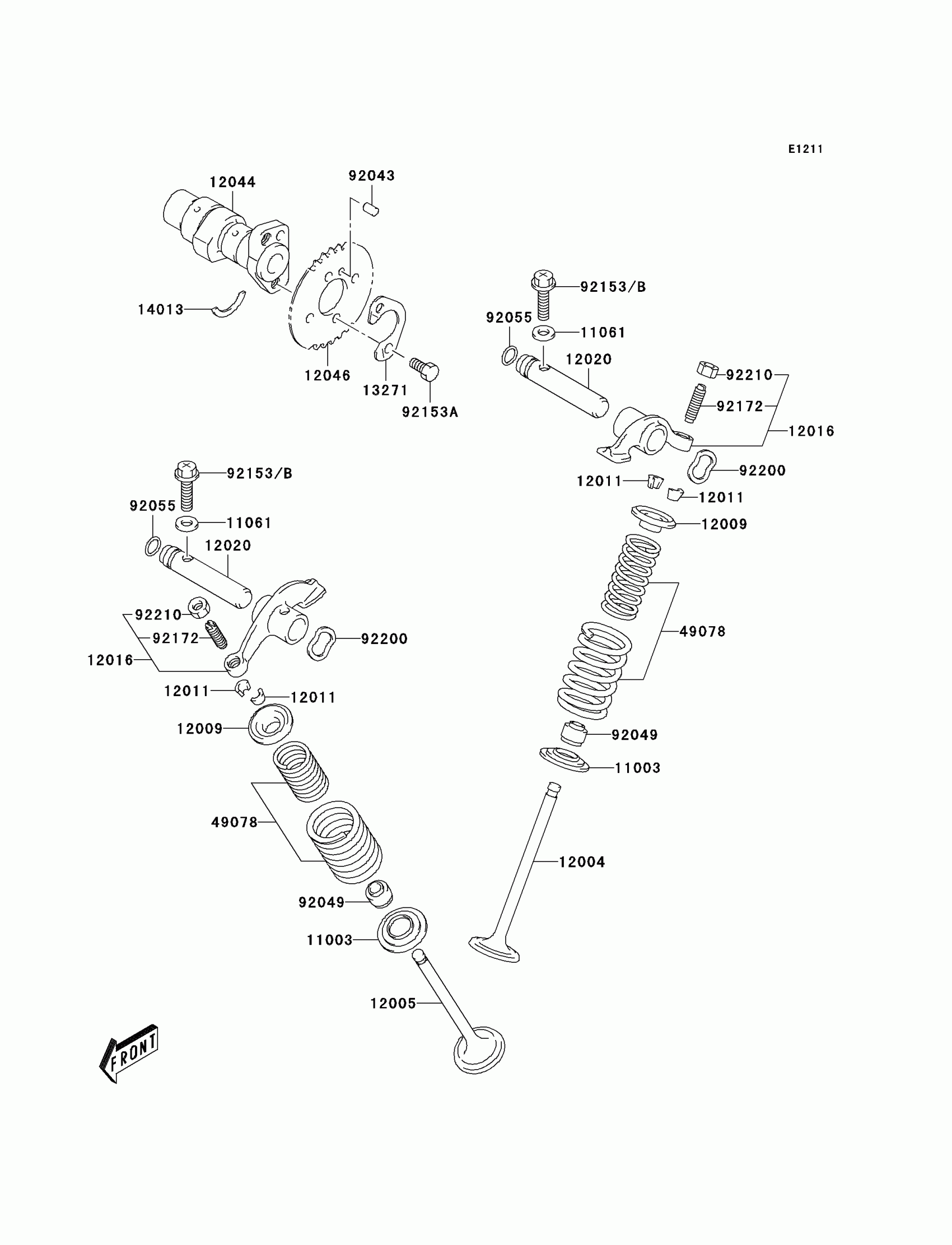

Kawasaki KLX125 Valve(s)/Camshaft(s) Diagram

Description

Price

11003

SEAT-VALVE

11003-S002

$5.35

11061

GASKET,5.8X13X1.2

11061-S001

$2.08

12004

VALVE-INTAKE

12004-S003

$52.45

12005

VALVE-EXHAUST

12005-S003

$71.03

12009

RETAINER-VALVE SPRING

12009-S002

Unavailable

12011

COLLET

12011-S002

$2.27

12016

ARM-ROCKER

12016-S005

$46.89

12020

SHAFT-ROCKER

12020-S003

Unavailable

12044

CAMSHAFT-VALVE

12044-S002

$144.79

12046

SPROCKET,CAMSHAFT

12046-S004

Unavailable

13271

PLATE

13271-S018

Unavailable

14013

RING-POSITION,CAMSHAFT

14013-S001

$2.05

49078

SPRING-ENGINE VALVE

49078-S002

$14.59

92043

PIN,5X8

92043-S008

$1.49

92049

SEAL-OIL

92049-S021

$8.27

92055

RING-O,D=1.9

92055-S033

$4.10

92153A

BOLT

92153-S099

Unavailable

92153B

BOLT

92153-S133

$1.64

92172

SCREW

92172-S096

Unavailable

92200

WASHER

92200-S057

$2.27

92210

NUT

92210-S049

Unavailable
